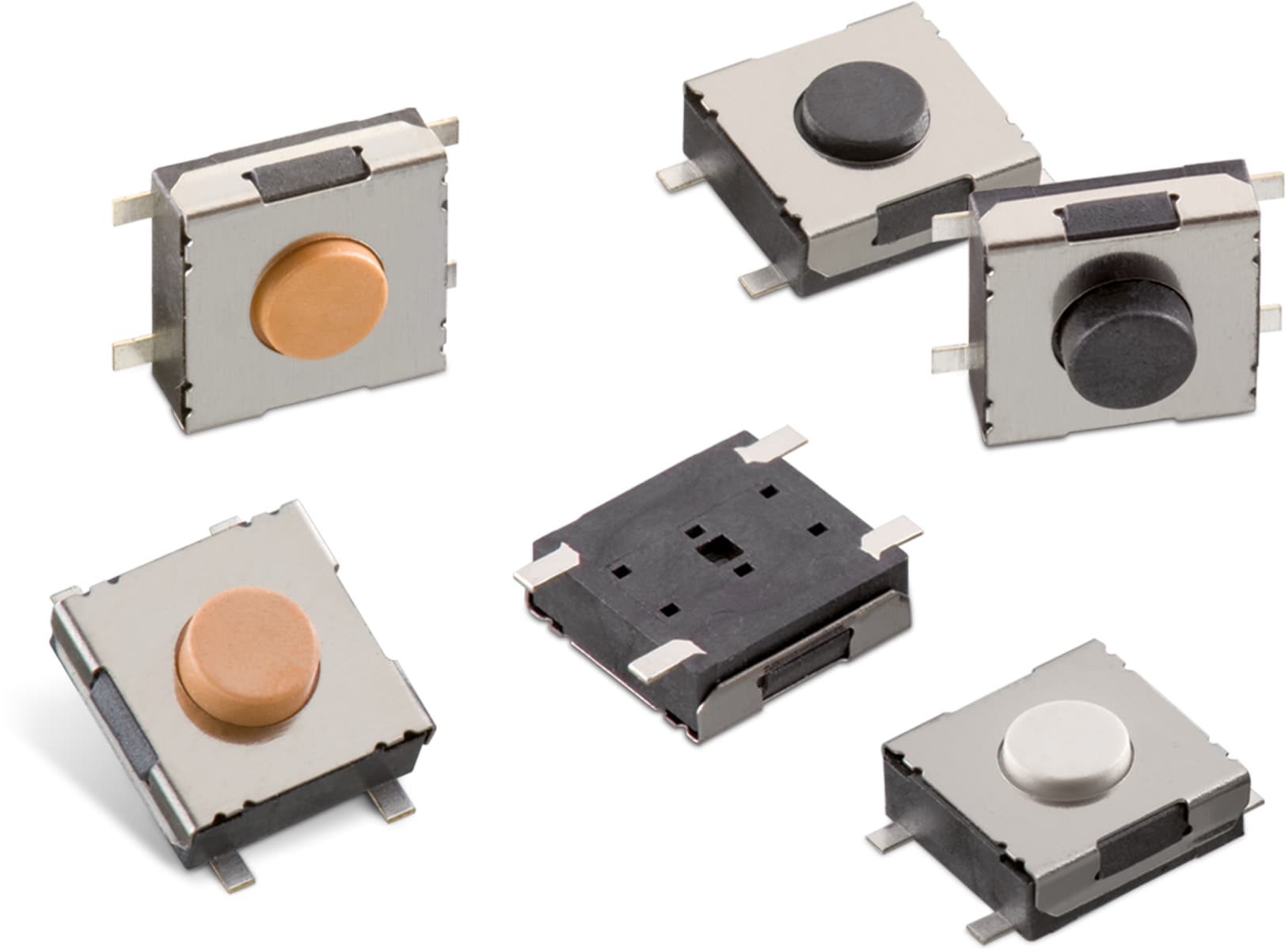

WS-TASV SMT Washable Tact Switch 6x6 mm

Material Properties
Cover Material Stainless Steel
Mechanical Properties
Stroke 0.25 mm
Properties
Actuator Material LCP
Actuator Flammability Rating UL94 V-0
Actuator Color Black; Salmon; White
Contact Material Stainless Steel
Contact Plating Silver
Terminal Plating Silver
VR 12 V (AC)
RISO 100 MΩ
Withstanding Voltage 250 V (AC)
Washable Yes
Qty. 2000
General Information
Operating Temperature -40 up to +85 °C
Washable Yes
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Demoboard Samples
430481025816
STE ALT EAG IGS CAD 2.5 160 Black 2000 499001
430471025826
STE ALT EAG IGS CAD 2.5 260 White 2000 499001
430451025836
STE ALT EAG IGS CAD 2.5 360 Salmon 2000 499001
430481031816
STE ALT EAG IGS CAD 3.1 160 Black 2000 499001
9999003
430471031826
STE ALT EAG IGS CAD 3.1 260 White 2000 499001
430451031836
STE ALT EAG IGS CAD 3.1 360 Salmon 2000 499001
430481035816
STE ALT EAG IGS CAD 3.5 160 Black 2000 499001
430471035826
STE ALT EAG IGS CAD 3.5 260 White 2000 499001
430451035836
STE ALT EAG IGS CAD 3.5 360 Salmon 2000 499001
Order Code Data­sheet
430481025816
430471025826
430451025836
430481031816
430471031826
430451031836
430481035816
430471035826
430451035836
Samples
Order Code Data­sheet Downloads H
(mm)
Operation Force
(g)
Actuator Color Qty. Design Kit Demoboard Samples
