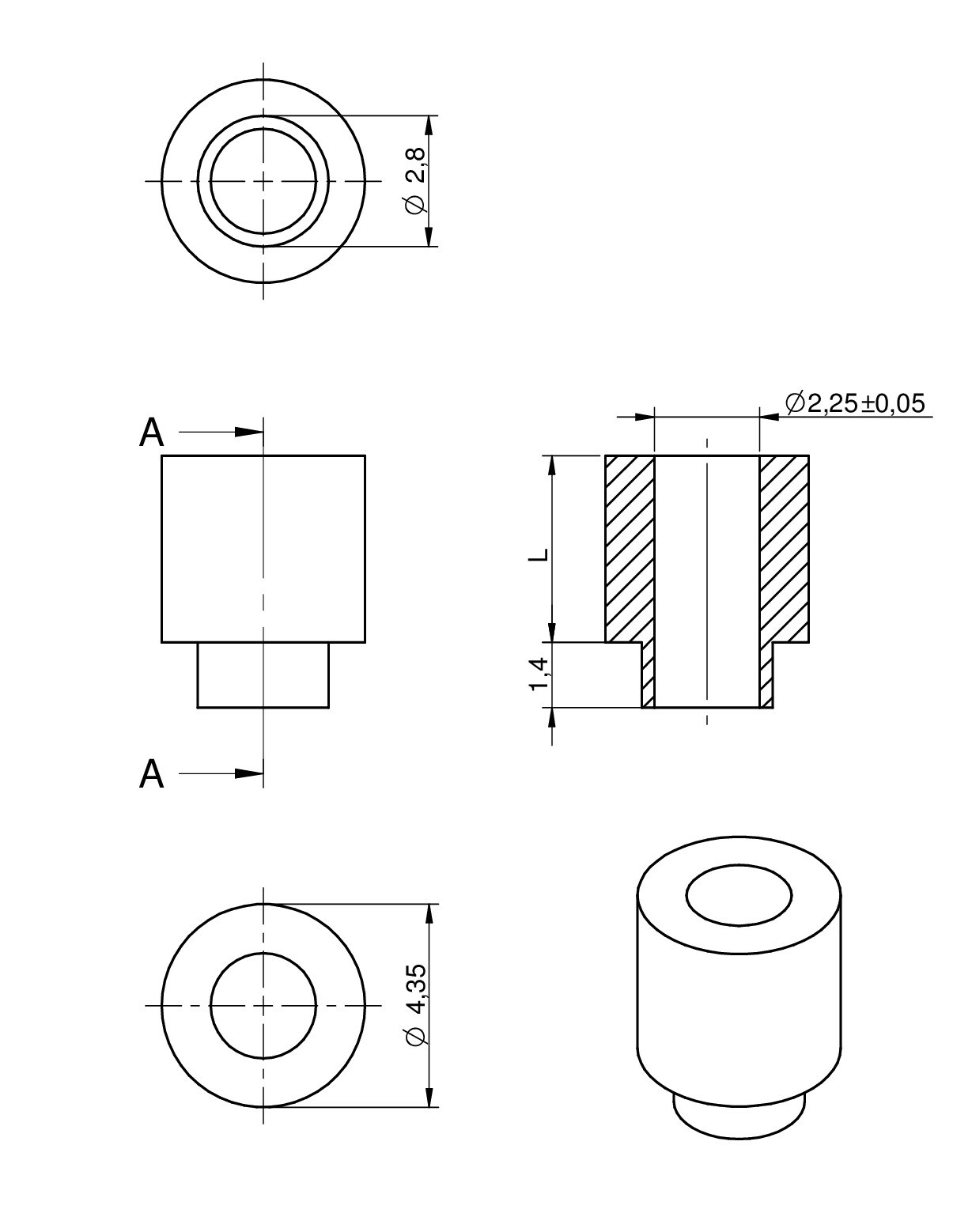

WA-SMST Steel Spacer with through hole Ø2.25

Applications

Assembling of PCBs to housing and to other PCBs
For distances from 1 to 8 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
Ø f	2.25 mm
Solder Cream Thickness	150 µm

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L (mm)	Ø f (mm)	Ø ID (mm)	Ø OD (mm)	Packaging	Qty.
9774010943R	1 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774010943_3D (rev1).pdf \| 29.1 KB IGS 9774010943 (rev1).igs \| 50.5 KB STP 9774010943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 1 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 1500
9774015943R	1.5 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774015943_3D (rev1).pdf \| 28.9 KB IGS 9774015943 (rev1).igs \| 50.5 KB STP 9774015943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 1.5 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 1200
9774020943R	2 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774020943_3D (rev1).pdf \| 28.5 KB IGS 9774020943 (rev1).igs \| 50.4 KB STP 9774020943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 2 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 1050
9774025943R	2.5 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774025943_3D (rev1).pdf \| 28.1 KB IGS 9774025943 (rev1).igs \| 50.5 KB STP 9774025943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 2.5 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 950
9774030943R	3 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774030943_3D (rev1).pdf \| 27.9 KB IGS 9774030943 (rev1).igs \| 50.5 KB STP 9774030943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 3 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 800
9774035943R	3.5 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774035943_3D (rev1).pdf \| 27.3 KB IGS 9774035943 (rev1).igs \| 50.4 KB STP 9774035943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 3.5 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 800
9774040943R	4 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774040943_3D (rev1).pdf \| 27.1 KB IGS 9774040943 (rev1).igs \| 50.5 KB STP 9774040943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 4 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 600
9774045943R	4.5 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774045943_3D (rev1).pdf \| 26.5 KB IGS 9774045943 (rev1).igs \| 50.5 KB STP 9774045943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 4.5 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 600
9774050943R	5 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774050943_3D (rev1).pdf \| 26.5 KB IGS 9774050943 (rev1).igs \| 50.4 KB STP 9774050943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 5 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 600
9774060943R	6 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774060943_3D (rev1).pdf \| 25.7 KB IGS 9774060943 (rev1).igs \| 50.3 KB STP 9774060943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 6 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 500
9774070943R	7 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774070943_3D (rev1).pdf \| 25.1 KB IGS 9774070943 (rev1).igs \| 50.5 KB STP 9774070943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 7 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 400
9774080943R	8 mm, 2.25 mm, 2.8 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WA-SMST (rev22a).IntLib \| 257.5 KB CDS Cadence_WA-SMST (rev20a).zip \| 1.9 MB EAG Eagle_WA-SMST (rev21a).lbr \| 652.3 KB CAD files ZIP 3D 9774080943_3D (rev1).pdf \| 24.5 KB IGS 9774080943 (rev1).igs \| 50.4 KB STP 9774080943 (rev1).stp \| 12 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Length 8 mm	Hole Diameter 2.25 mm	Inner Diameter 2.8 mm	Outer Diameter 4.35 mm	Packaging Tape and Reel	Packaging Unit 400

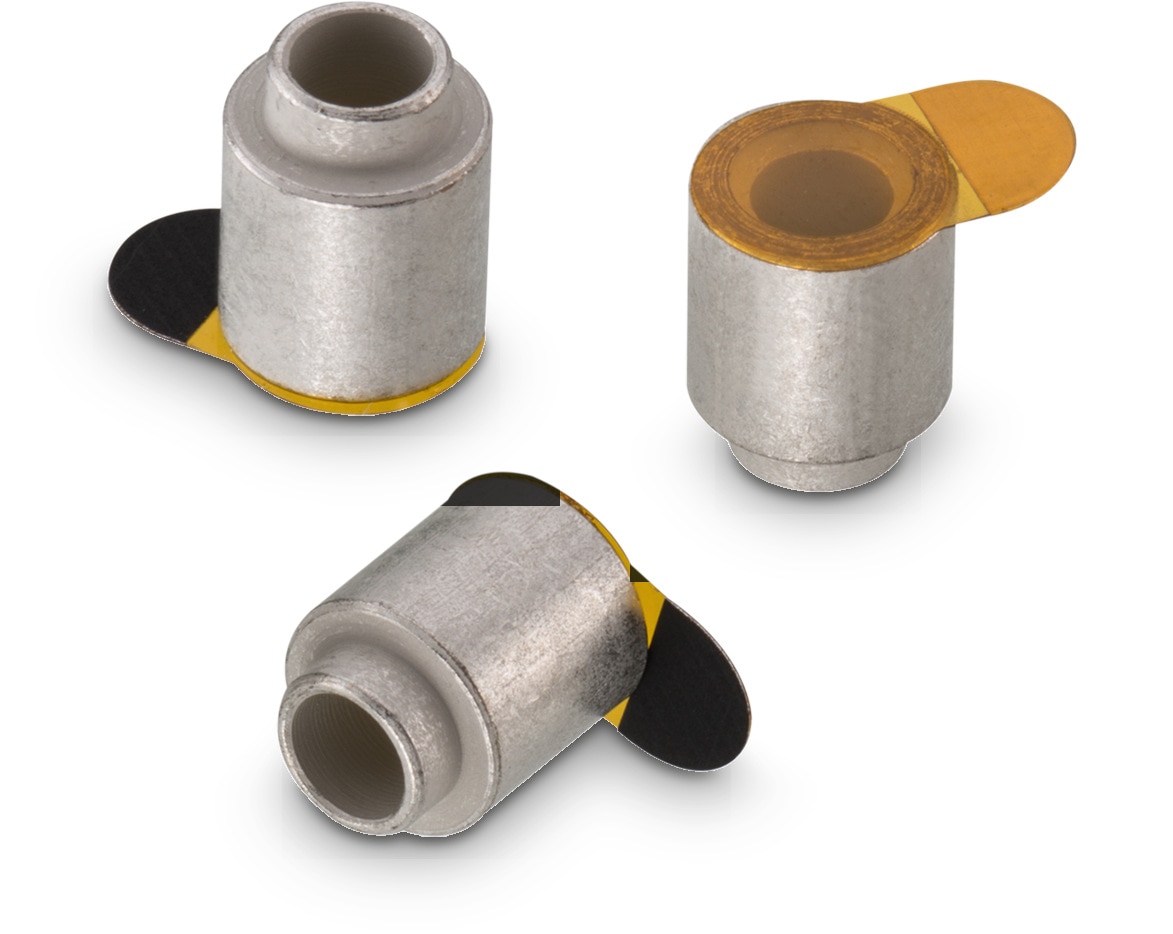

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

Fast and precise process
Instant removable kapton foil
Strong holding forces and torques
Highest process reliability
