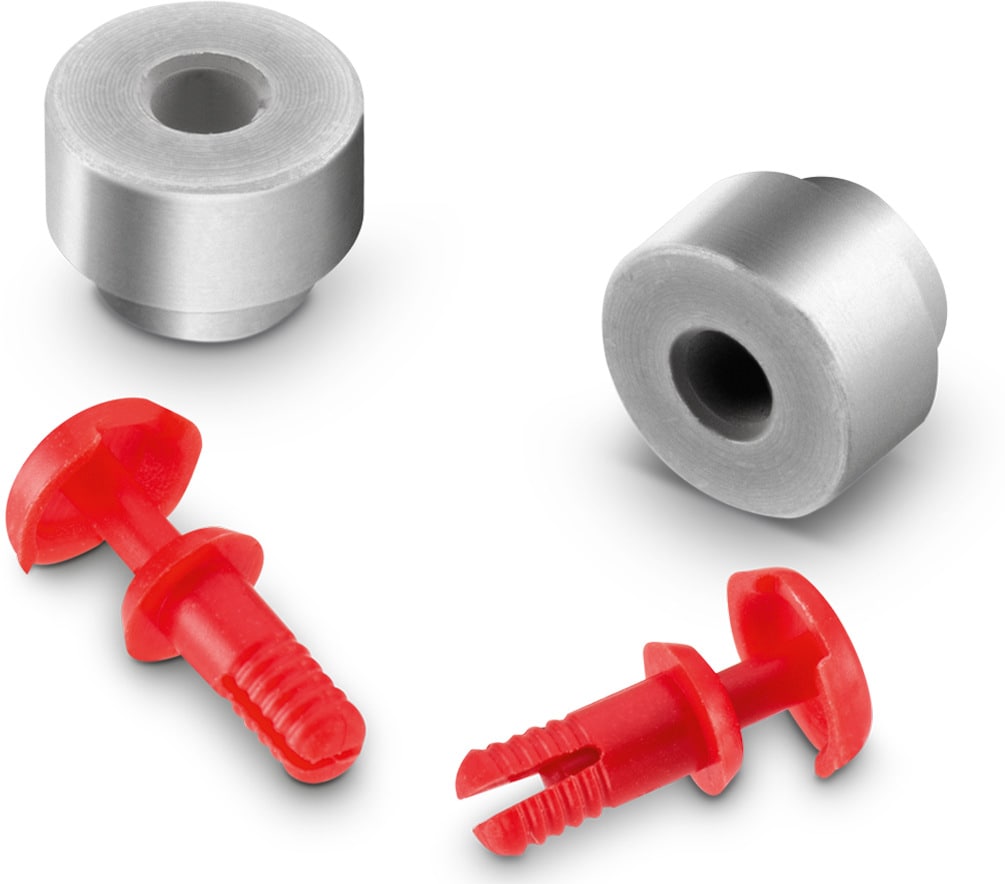

WA-SMSSR SMT Steel Spacer fixed w. snap rivet

WA-SMSSR SMT Steel Spacer fixed w. snap rivet

Applications

  • SMT Spacer with Snap Rivet for quick and easy mounting of PCBs without tools
  • Screwless connections for fast mounting
  • For distances from 2 to 10 mm
  • Only qualified with Snap Rivet 7009776
General Information
Operating Temperature-30 °C up to +85 °C; -55 °C up to +150 °C
MaterialPA66; Steel
ColorRed
SurfaceTin
Flammability RatingUL94 V-0
Ø f2.15 mm; 2.5 mm

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
L(mm)
Ø f(mm)
Ø ID(mm)
Ø OD(mm)
Color
Packaging
Qty.
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
9776020960R
SPEC2 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.

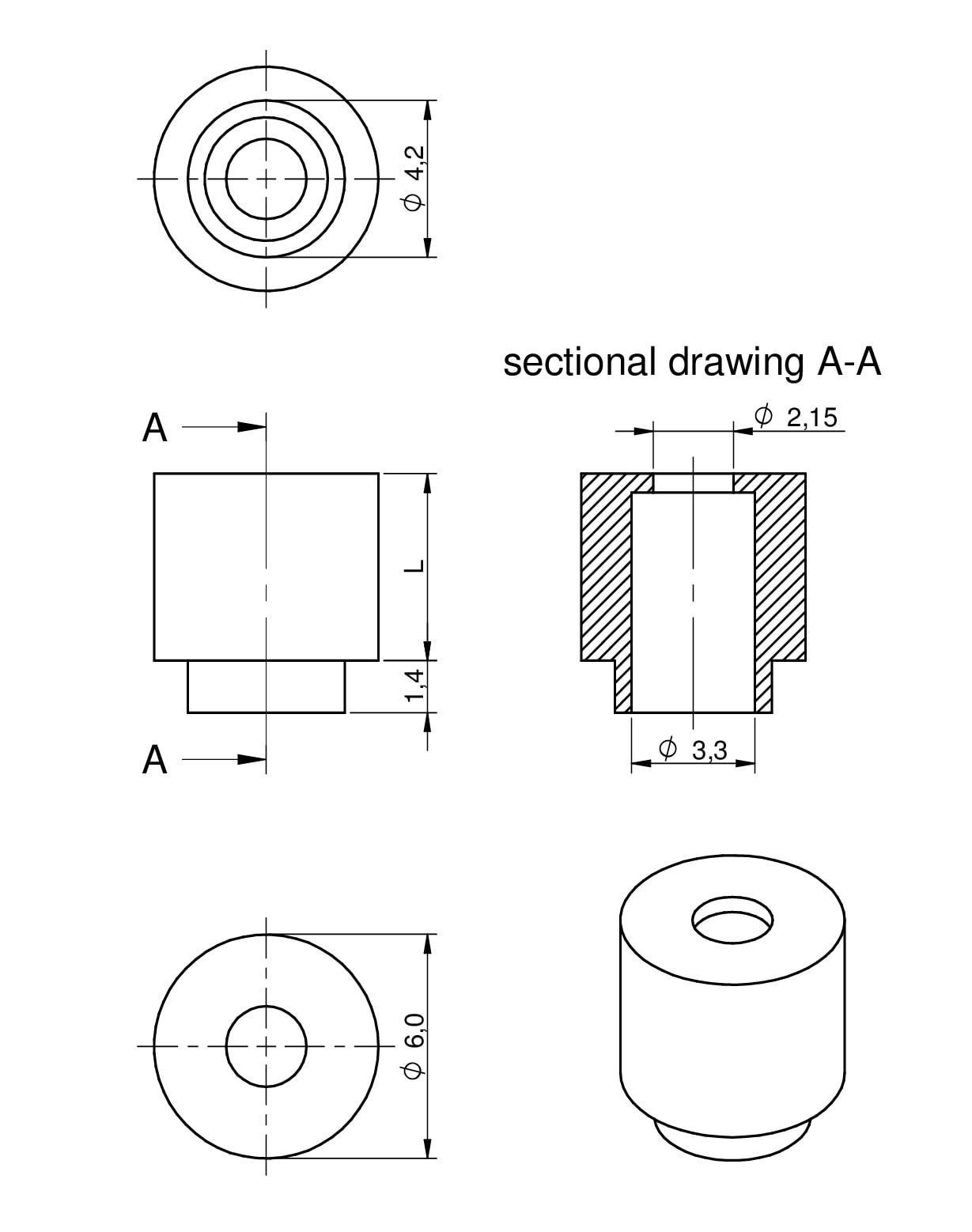

Length2 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit1050
Design Kit –
–Check availability
9776025960R
SPEC2.5 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length2.5 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit950
Design Kit –
–Check availability
9776030960R
SPEC3 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length3 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit800
Design Kit –
–Check availability
9776040960R
SPEC4 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length4 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit650
Design Kit –
–Check availability
9776050960R
SPEC5 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length5 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit650
Design Kit –
–Check availability
9776060960R
SPEC6 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length6 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit450
Design Kit –
–Check availability
9776070960R
SPEC7 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length7 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit450
Design Kit –
–Check availability
7009776
SPEC7.95 mm, 2.5 mm, 2.1 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length7.95 mm
Hole Diameter2.5 mm
Inner Diameter2.1 mm
Outer Diameter4 mm
ColorRed
PackagingBulk
Packaging Unit1000
Design Kit
700970977990
–Check availability
9776080960R
SPEC8 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length8 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit450
Design Kit –
–Check availability
9776090960R
SPEC9 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length9 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit300
Design Kit –
–Check availability
9776100960R
SPEC10 mm, 2.15 mm, 4.2 mm
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Length10 mm
Hole Diameter2.15 mm
Inner Diameter4.2 mm
Outer Diameter6 mm
–
PackagingTape and Reel
Packaging Unit300
Design Kit –
–Check availability

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.

  • Fast and precise process
  • Instant removable kapton foil
  • Strong holding forces and torques
  • Highest process reliability

Features

Full automation for fast and very precise positioning on the PCB
Full automation for fast and very precise positioning on the PCB
Tab on the kapton foil for instant removal
Tab on the kapton foil for instant removal
High holding forces and torques for safe and strong mechanical connection
High holding forces and torques for safe and strong mechanical connection
Optimal solder pad geometry and specially developed plating for consistent, Reliable, Soldering
Optimal solder pad geometry and specially developed plating for consistent, Reliable, Soldering
Robust screw connections for high mechanical load
Robust screw connections for high mechanical load
Screwless connections for fast mounting
Screwless connections for fast mounting

Types & Applications

SMT Spacer with internal thread for attachment above the PCB or for assembling to housings
SMT Spacer with internal thread for attachment above the PCB or for assembling to housings
SMT Spacer with external thread for attachment above the PCB by using a nut
SMT Spacer with external thread for attachment above the PCB by using a nut
SMT Reverse Spacer for top layer soldering and bottom side assembly
SMT Reverse Spacer for top layer soldering and bottom side assembly
Right Angled SMT Spacer for 90° assembling of PCBs to housing and cases
Right Angled SMT Spacer for 90° assembling of PCBs to housing and cases
SMT Spacer with Snap Rivet or Mounting Button for quick and easy mounting of PCBs without tools
SMT Spacer with Snap Rivet or Mounting Button for quick and easy mounting of PCBs without tools
Distance cap for thermal and electrical insulation and to realize intermediate heights
Distance cap for thermal and electrical insulation and to realize intermediate heights

Assortments

Articles from this product series can be found in the following assortments:

Design Kit SMT Spacer
Design Kit Snap Rivets
