OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupAssemblyProduct groupSMT SpacersProduct seriesReverseThread TypeWA-SMSR SMT Steel Spacer Reverse with through hole Ø 3.2

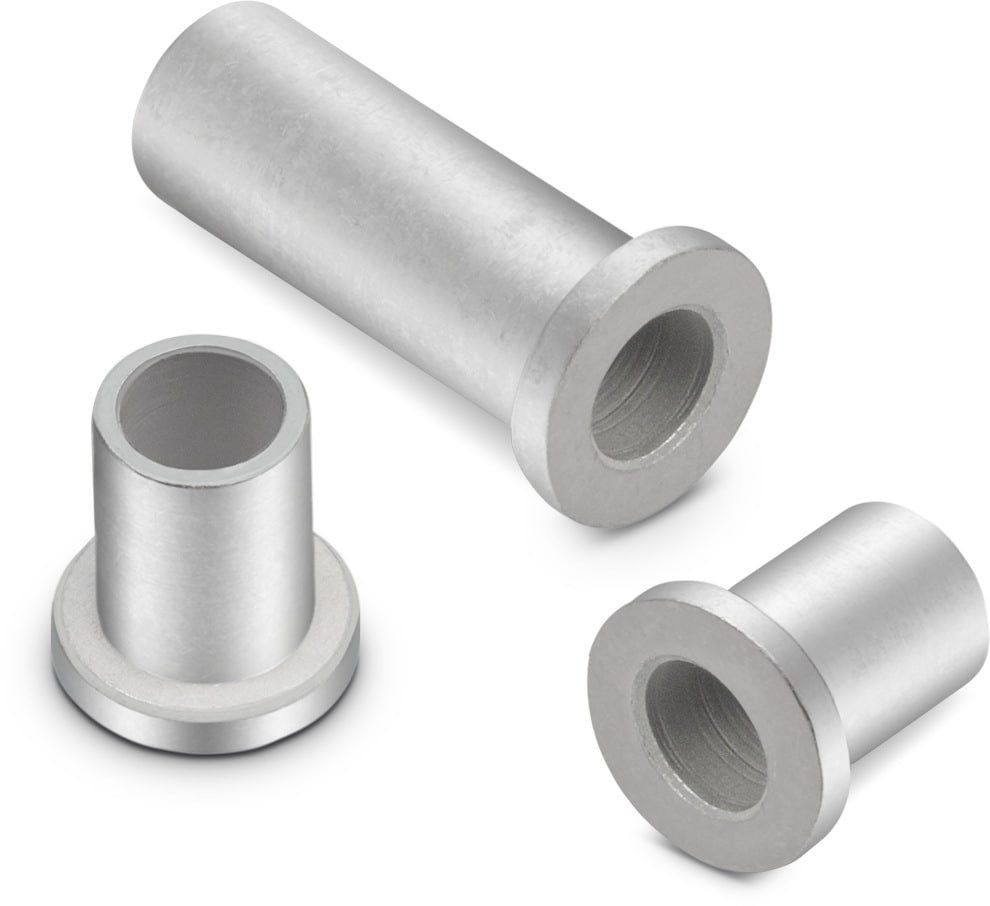

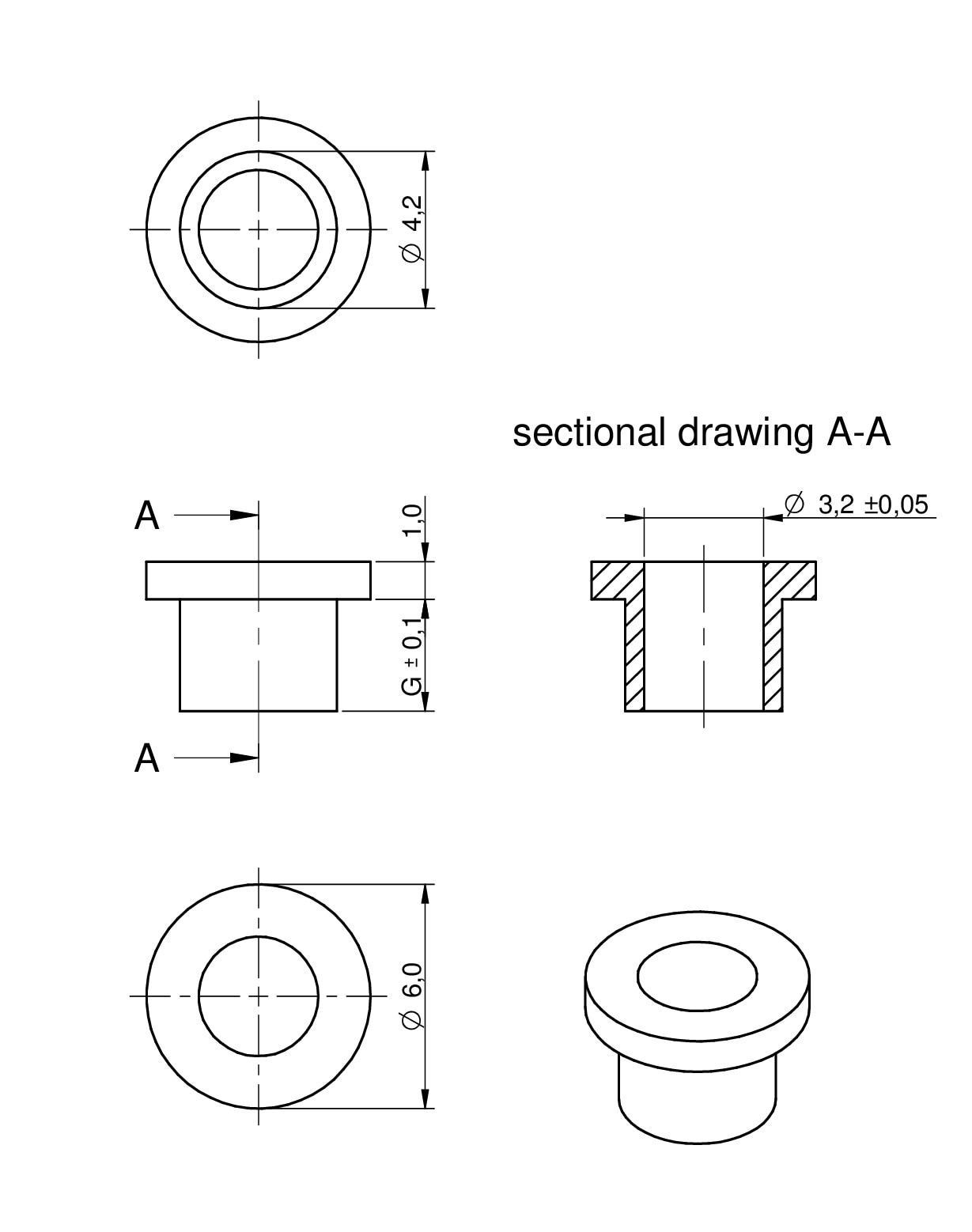

WA-SMSR SMT Steel Spacer Reverse with through hole Ø 3.2

WA-SMSR SMT Steel Spacer Reverse with through hole Ø 3.2

Applications

  • SMT Reverse Spacer for top layer soldering and bottom side assembly
  • For distances from 1 to 10 mm (when using standard pcb-thickness of 1.6 mm)
  • fast and precise process
  • Strong holding forces and torques
  • Highest process reliability
  • Instant removable Polyimide Tape
General Information
Operating Temperature-55 °C up to +150 °C
MaterialSteel
SurfaceTin
Ø f3.2 mm
Solder Cream Thickness (Value)150 µm
