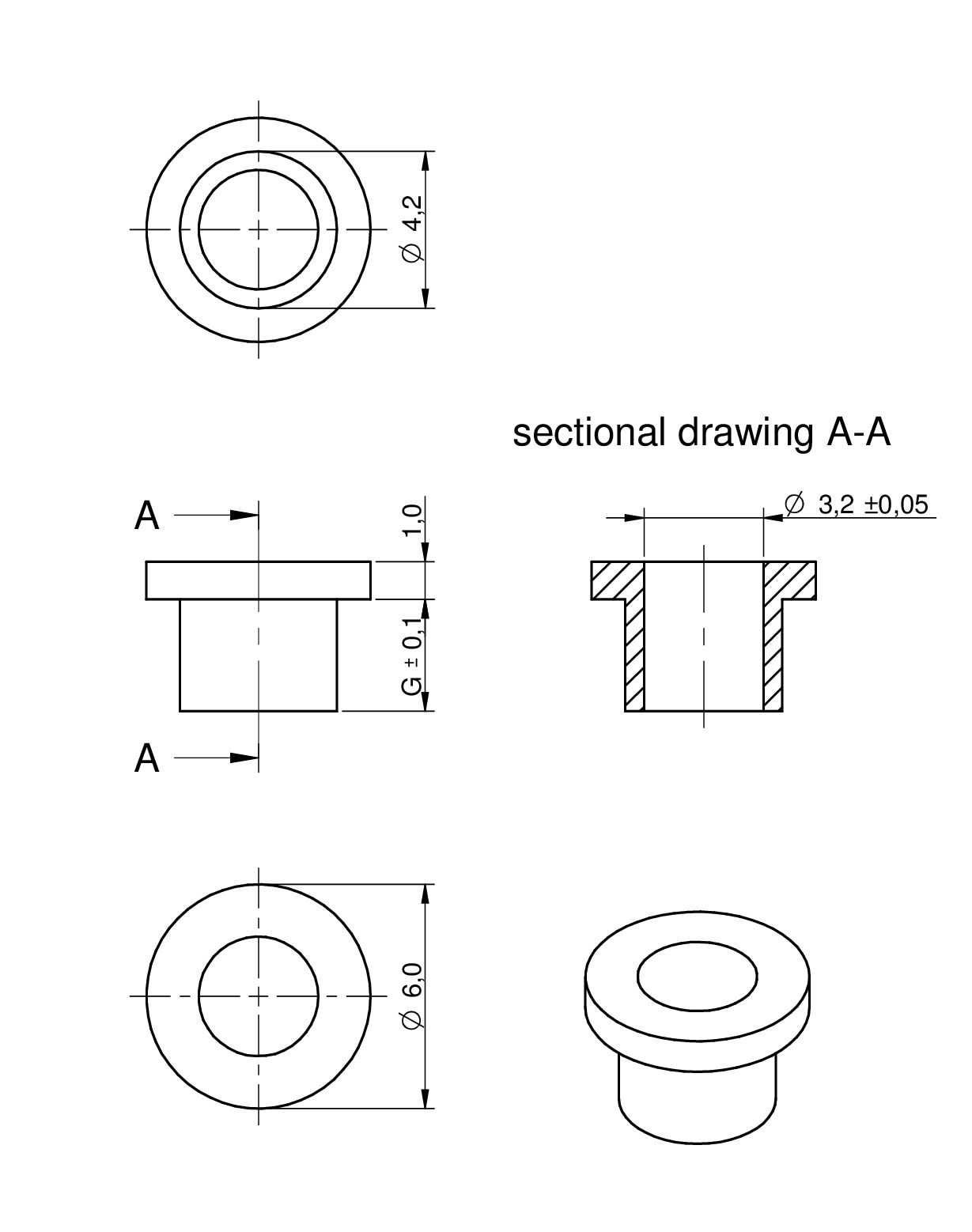

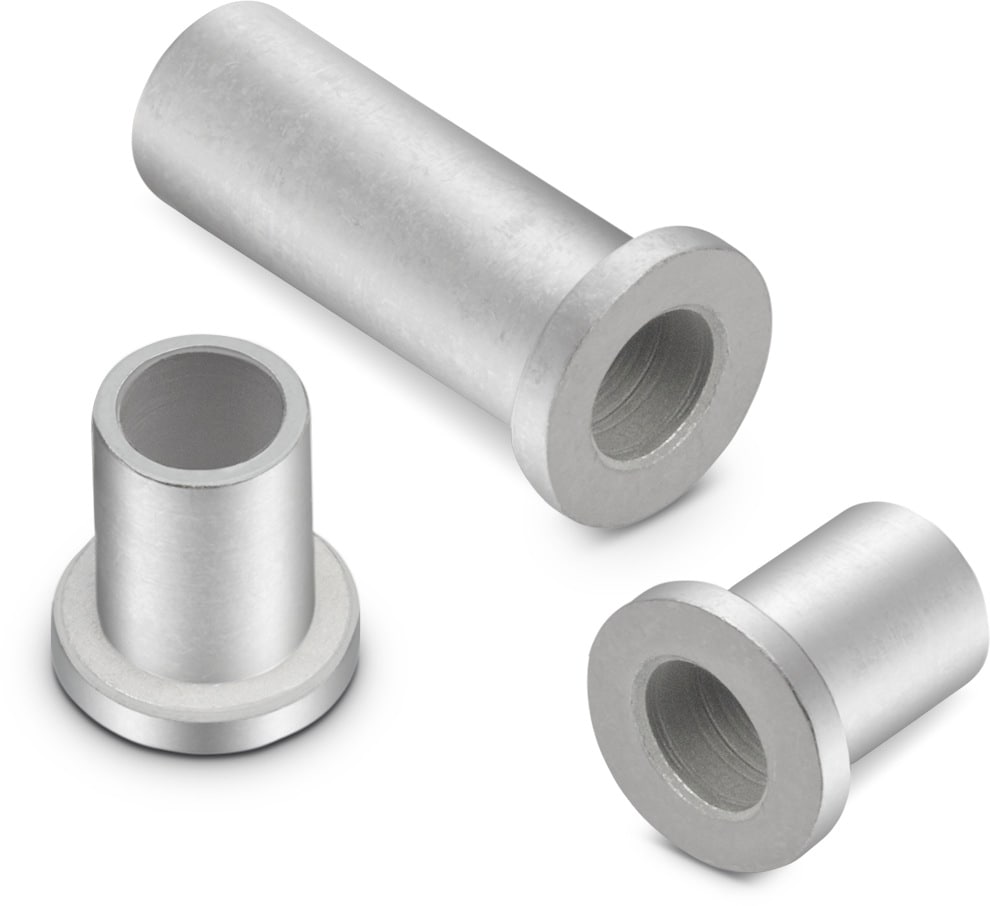

WA-SMSR SMT Steel Spacer Reverse with through hole Ø 3.2

Applications

SMT Reverse Spacer for top layer soldering and bottom side assembly
For distances from 1 to 10 mm (when using standard pcb-thickness of 1.6 mm)
fast and precise process
Strong holding forces and torques
Highest process reliability
Instant removable Polyimide Tape

Properties
Material	Steel
Surface	Tin
Ø f	3.2 mm
Solder Paste Thickness	150 µm

General Information
Operating Temperature	-55 up to +150 °C

Products

Order Code	Datasheet	Downloads	G (mm)	Ø f (mm)	Ø OD (mm)	Ø ID (mm)	Packaging	Qty.	Design Kit
9775026960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775026960_3D (rev1).pdf \| 28.1 KB IGS 9775026960 (rev1).igs \| 49.1 KB STP 9775026960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	2.6	3.2	6	4.2	Bulk	–	–
9775026960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775026960_3D (rev1).pdf \| 28.1 KB IGS 9775026960 (rev1).igs \| 49.1 KB STP 9775026960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	2.6	3.2	6	4.2	Tape and Reel	950	–
9775031960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775031960_3D (rev1).pdf \| 27.7 KB IGS 9775031960 (rev1).igs \| 49.3 KB STP 9775031960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	3.1	3.2	6	4.2	Bulk	–	–
9775031960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775031960_3D (rev1).pdf \| 27.7 KB IGS 9775031960 (rev1).igs \| 49.3 KB STP 9775031960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	3.1	3.2	6	4.2	Tape and Reel	700	–
9775036960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775036960_3D (rev1).pdf \| 27.7 KB IGS 9775036960 (rev1).igs \| 49.3 KB STP 9775036960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	3.6	3.2	6	4.2	Bulk	–	–
9775036960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775036960_3D (rev1).pdf \| 27.7 KB IGS 9775036960 (rev1).igs \| 49.3 KB STP 9775036960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	3.6	3.2	6	4.2	Tape and Reel	700	–
9775041960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775041960_3D (rev1).pdf \| 27.5 KB IGS 9775041960 (rev1).igs \| 48.9 KB STP 9775041960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	4.1	3.2	6	4.2	Bulk	–	–
9775041960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775041960_3D (rev1).pdf \| 27.5 KB IGS 9775041960 (rev1).igs \| 48.9 KB STP 9775041960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	4.1	3.2	6	4.2	Tape and Reel	700	–
9775046960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775046960_3D (rev1).pdf \| 27.3 KB IGS 9775046960 (rev1).igs \| 49.3 KB STP 9775046960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	4.6	3.2	6	4.2	Bulk	–	–
9775046960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775046960_3D (rev1).pdf \| 27.3 KB IGS 9775046960 (rev1).igs \| 49.3 KB STP 9775046960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	4.6	3.2	6	4.2	Tape and Reel	600	–
9775051960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775051960_3D (rev1).pdf \| 26.9 KB IGS 9775051960 (rev1).igs \| 49 KB STP 9775051960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	5.1	3.2	6	4.2	Bulk	–	977990
9775051960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775051960_3D (rev1).pdf \| 26.9 KB IGS 9775051960 (rev1).igs \| 49 KB STP 9775051960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	5.1	3.2	6	4.2	Tape and Reel	600	–
9775056960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775056960_3D (rev1).pdf \| 26.7 KB IGS 9775056960 (rev1).igs \| 48.9 KB STP 9775056960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	5.6	3.2	6	4.2	Bulk	–	–
9775056960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775056960_3D (rev1).pdf \| 26.7 KB IGS 9775056960 (rev1).igs \| 48.9 KB STP 9775056960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	5.6	3.2	6	4.2	Tape and Reel	450	–
9775066960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775066960_3D (rev1).pdf \| 26.1 KB IGS 9775066960 (rev1).igs \| 49.3 KB STP 9775066960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	6.6	3.2	6	4.2	Bulk	–	–
9775066960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775066960_3D (rev1).pdf \| 26.1 KB IGS 9775066960 (rev1).igs \| 49.3 KB STP 9775066960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	6.6	3.2	6	4.2	Tape and Reel	450	–
9775076960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775076960_3D (rev1).pdf \| 25.5 KB IGS 9775076960 (rev1).igs \| 49.3 KB STP 9775076960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	7.6	3.2	6	4.2	Bulk	–	–
9775076960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775076960_3D (rev1).pdf \| 25.5 KB IGS 9775076960 (rev1).igs \| 49.3 KB STP 9775076960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	7.6	3.2	6	4.2	Tape and Reel	350	–
9775086960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775086960_3D (rev1).pdf \| 25.1 KB IGS 9775086960 (rev1).igs \| 49.3 KB STP 9775086960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	8.6	3.2	6	4.2	Bulk	–	–
9775086960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775086960_3D (rev1).pdf \| 25.1 KB IGS 9775086960 (rev1).igs \| 49.3 KB STP 9775086960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	8.6	3.2	6	4.2	Tape and Reel	350	–
9775096960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775096960_3D (rev1).pdf \| 24.5 KB IGS 9775096960 (rev1).igs \| 49.2 KB STP 9775096960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	9.6	3.2	6	4.2	Bulk	–	–
9775096960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775096960_3D (rev1).pdf \| 24.5 KB IGS 9775096960 (rev1).igs \| 49.2 KB STP 9775096960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	9.6	3.2	6	4.2	Tape and Reel	300	–
9775106960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775106960_3D (rev1).pdf \| 24.1 KB IGS 9775106960 (rev1).igs \| 48.9 KB STP 9775106960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	10.6	3.2	6	4.2	Bulk	–	–
9775106960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775106960_3D (rev1).pdf \| 24.1 KB IGS 9775106960 (rev1).igs \| 48.9 KB STP 9775106960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	10.6	3.2	6	4.2	Tape and Reel	300	–
9775116960	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775116960_3D (rev1).pdf \| 23.7 KB IGS 9775116960 (rev1).igs \| 48.9 KB STP 9775116960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	11.6	3.2	6	4.2	Bulk	–	977990
9775116960R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSR (rev22a).IntLib \| 121.5 KB CDS Cadence_WA-SMSR (rev19a).zip \| 452.1 KB EAG Eagle_WA-SMSR (rev21a).lbr \| 116.9 KB CAD files ZIP 3D 9775116960_3D (rev1).pdf \| 23.7 KB IGS 9775116960 (rev1).igs \| 48.9 KB STP 9775116960 (rev1).stp \| 11.9 KB Download all 6 files as zip archive ZIP	11.6	3.2	6	4.2	Tape and Reel	300	–

Order Code	Datasheet
9775026960	SPEC
9775026960R	SPEC
9775031960	SPEC
9775031960R	SPEC
9775036960	SPEC
9775036960R	SPEC
9775041960	SPEC
9775041960R	SPEC
9775046960	SPEC
9775046960R	SPEC
9775051960	SPEC
9775051960R	SPEC
9775056960	SPEC
9775056960R	SPEC
9775066960	SPEC
9775066960R	SPEC
9775076960	SPEC
9775076960R	SPEC
9775086960	SPEC
9775086960R	SPEC
9775096960	SPEC
9775096960R	SPEC
9775106960	SPEC
9775106960R	SPEC
9775116960	SPEC
9775116960R	SPEC

Samples

Order Code	Datasheet	Downloads	G (mm)	Ø f (mm)	Ø OD (mm)	Ø ID (mm)	Packaging	Qty.	Design Kit	Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.
