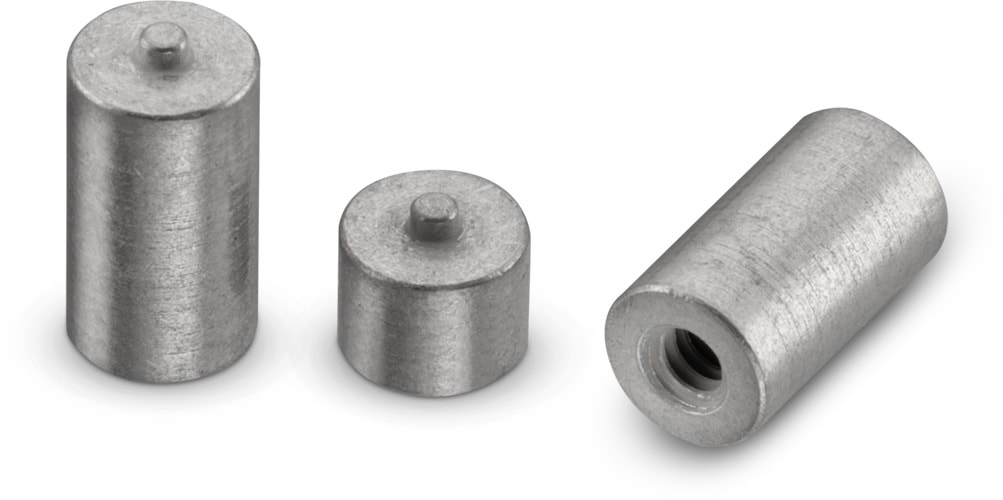

WA-SMSI SMT Steel Spacer with internal Thread M1.6 with Pin

Applications

  • Assembling of PCBs to housing and to other PCBs
  • For distances from 1 to 6mm
  • Fast and precise process
  • Strong holding forces and torques
  • Highest process reliability
Properties
Material Steel
Surface Tin
Solder Cream Thickness 120 µm
Tightening Torque 0.1 N*m
General Information
Operating Temperature -55 up to +150 °C

Checkmate. SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation.

Product video and more

Products

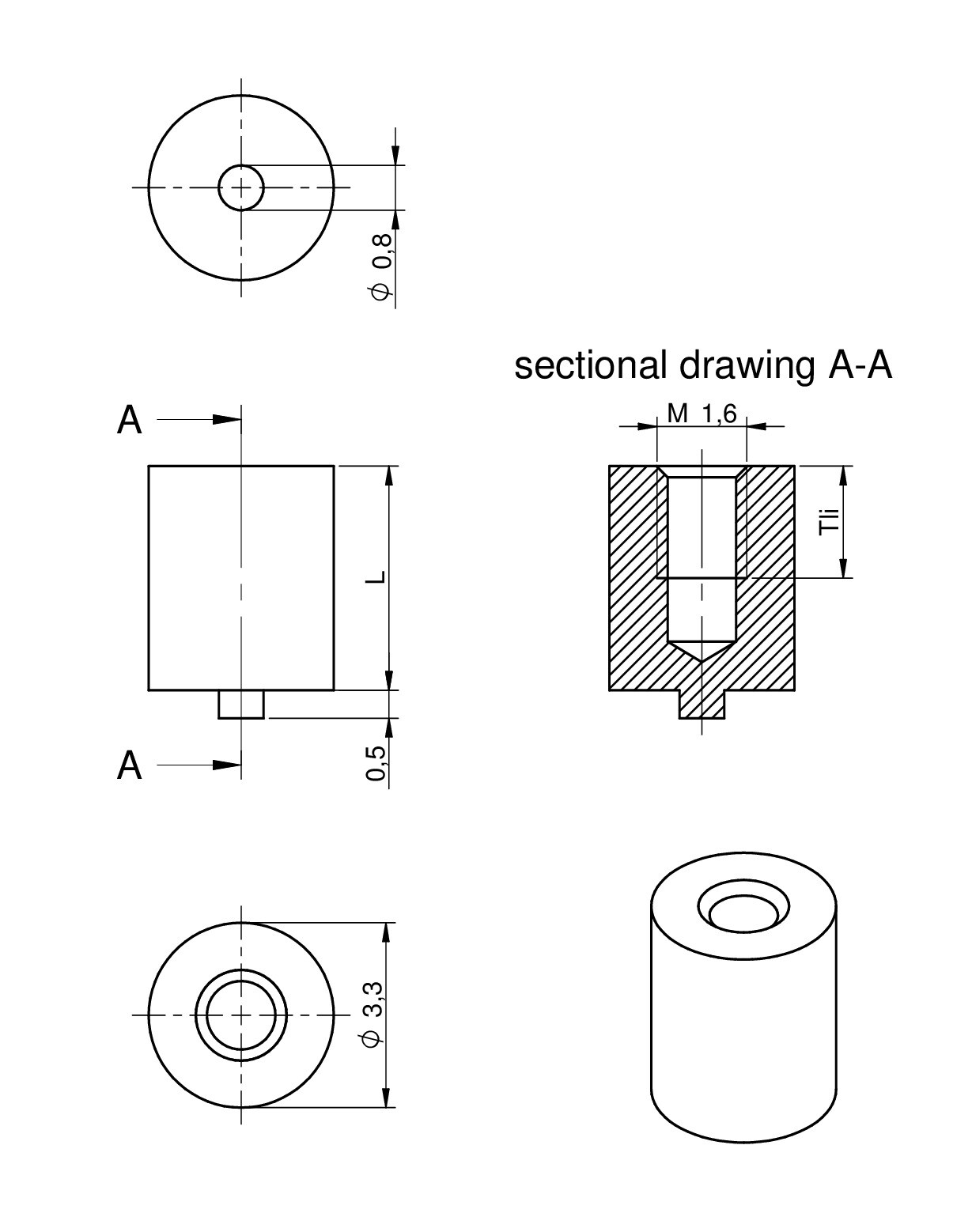

Order Code Data­sheet Downloads L
(mm)
Tli
(mm)
Ti Ø OD
(mm)
Packaging Qty. Samples
97730256332
STE 3D ALT EAG IGS CAD 2.5 1.5 M1.6 3.3 Bulk
97730256332R
STE 3D ALT EAG IGS CAD 2.5 1.5 M1.6 3.3 Tape and Reel 2200
97730306332
STE 3D ALT EAG IGS CAD 3 1.8 M1.6 3.3 Bulk
97730306332R
STE 3D ALT EAG IGS CAD 3 1.8 M1.6 3.3 Tape and Reel 1800
97730356332
STE 3D ALT EAG IGS CAD 3.5 2 M1.6 3.3 Bulk
97730356332R
STE 3D ALT EAG IGS CAD 3.5 2 M1.6 3.3 Tape and Reel 1800
97730406332
STE 3D ALT EAG IGS CAD 4 2 M1.6 3.3 Bulk
97730406332R
STE 3D ALT EAG IGS CAD 4 2 M1.6 3.3 Tape and Reel 1400
97730456332
STE 3D ALT EAG IGS CAD 4.5 2 M1.6 3.3 Bulk
97730456332R
STE 3D ALT EAG IGS CAD 4.5 2 M1.6 3.3 Tape and Reel 1400
97730506332
STE 3D ALT EAG IGS CAD 5 2 M1.6 3.3 Bulk
97730506332R
STE 3D ALT EAG IGS CAD 5 2 M1.6 3.3 Tape and Reel 1300
97730606332R
STE 3D ALT EAG IGS CAD 6 2 M1.6 3.3 Tape and Reel 1100
97730606332
STE 3D ALT EAG IGS CAD 6 2 M1.6 3.3 Bulk
Order Code Data­sheet
97730256332
97730256332R
97730306332
97730306332R
97730356332
97730356332R
97730406332
97730406332R
97730456332
97730456332R
97730506332
97730506332R
97730606332R
97730606332
Samples
Order Code Data­sheet Downloads L
(mm)
Tli
(mm)
Ti Ø OD
(mm)
Packaging Qty. Samples
