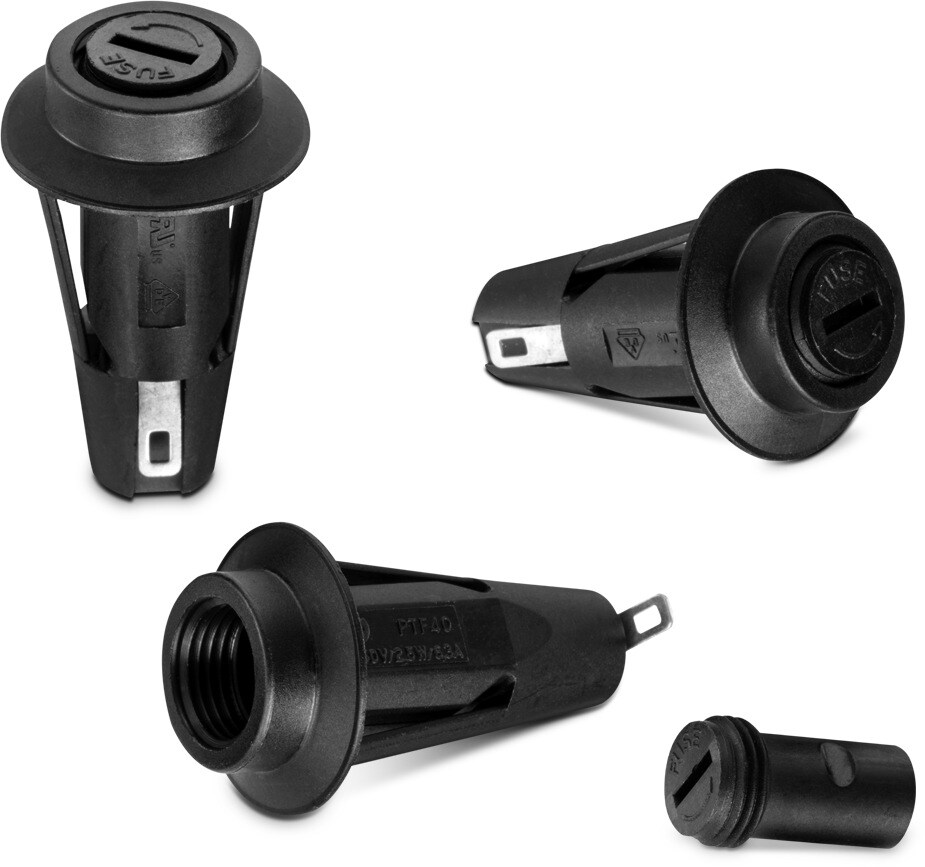

WR-FSH Shocksafe Fuseholder - Panel - Screw and Lock Cover - THT

Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Tin over Nickel
Spring Material INOX Steel
General Information
Operating Temperature -30 up to +120 °C
Compliance RoHS
Electrical Properties
IR UL 20 A
IR VDE 10 A
Working Voltage 250 V (AC)
Working Voltage [UL] 250 V (AC)
Working Voltage [VDE] 250 V (AC)
Withstanding Voltage [UL] 1500 V (AC)
Withstanding Voltage [cULus] 3 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance 10 mΩ
Contact Resistance [VDE] 10 mΩ
Mechanical Properties
Protection Class I & II
Fuse Size 5x20 mm
Certification
cULus Approval E157417
VDE Approval 133367
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads IR UL
(A)
IR VDE
(A)
Samples
696213001002
STE 3D ALT EAG IGS CAD 20 10
Order Code Data­sheet
696213001002
