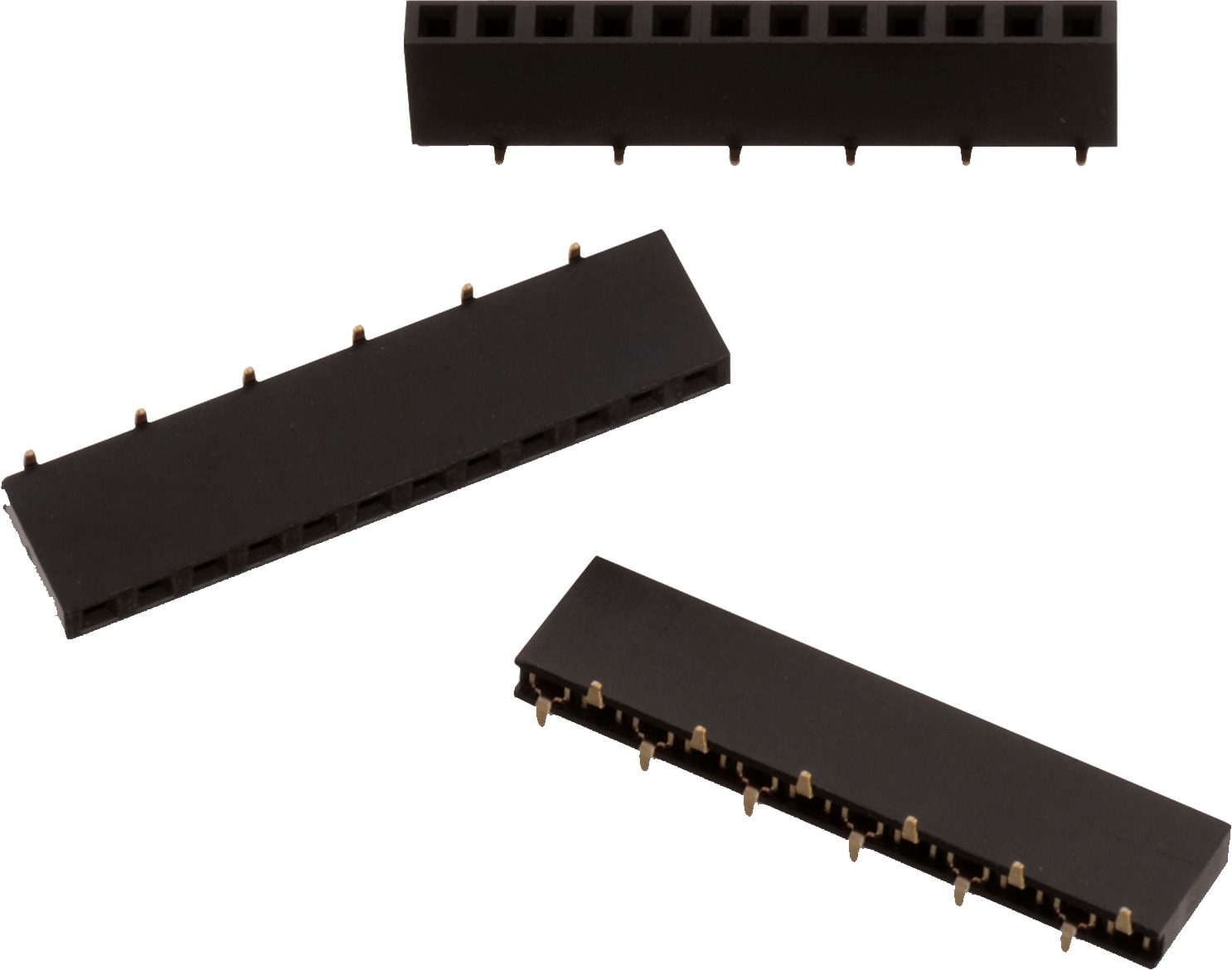

WR-PHD 2.54 mm SMT Socket Header | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.54 mm TypeSocket Header Product seriesWR-PHD 2.54 mm SMT Socket Header

Article Properties
Pins	4; 5; 6; 8; 10; 12; 14; 16; 20; 24

Kind Properties
Pitch	2.54 mm
Quality Class	3 as per CECC 75 301-802
Rows	Single
Gender	Socket Header
Type	Straight Type 1; Straight Type 2

Material Properties
Insulator Material	Nylon 46
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +105 °C; -40 up to +125 °C
Compliance	Lead free / RoHS

Electrical Properties
I_R	3 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
61000411921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000411921 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000411921 (rev1).iges \| 758.8 KB STP 61000411921 (rev1).stp \| 172.3 KB Download all 6 files as zip archive ZIP	4	Single	Socket Header	Straight Type 1	3	Tube	–
61000413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000413321 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000413321 (rev1).iges \| 758.7 KB STP 61000413321 (rev1).stp \| 172.3 KB Download all 6 files as zip archive ZIP	4	Single	Socket Header	Straight Type 2	3	Tube	–
61000511921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000511921 (rev1).pdf \| 59 KB IGS Download_IGES_61000511921 (rev1).iges \| 825.9 KB STP 61000511921 (rev1).stp \| 187.3 KB Download all 6 files as zip archive ZIP	5	Single	Socket Header	Straight Type 1	3	Tube	–
61000513321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000513321 (rev1).pdf \| 59 KB IGS Download_IGES_61000513321 (rev1).iges \| 826.3 KB STP 61000513321 (rev1).stp \| 187.4 KB Download all 6 files as zip archive ZIP	5	Single	Socket Header	Straight Type 2	3	Tube	–
61000611921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000611921 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000611921 (rev1).iges \| 893.9 KB STP 61000611921 (rev1).stp \| 202.7 KB Download all 6 files as zip archive ZIP	6	Single	Socket Header	Straight Type 1	3	Tube	612690
61000613321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000613321 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000613321 (rev1).iges \| 894.2 KB STP 61000613321 (rev1).stp \| 202.8 KB Download all 6 files as zip archive ZIP	6	Single	Socket Header	Straight Type 2	3	Tube	–
61000811921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000811921 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000811921 (rev1).iges \| 1 MB STP 61000811921 (rev1).stp \| 232.5 KB Download all 6 files as zip archive ZIP	8	Single	Socket Header	Straight Type 1	3	Tube	613001
61000813321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61000813321 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000813321 (rev1).iges \| 1 MB STP 61000813321 (rev1).stp \| 232.6 KB Download all 6 files as zip archive ZIP	8	Single	Socket Header	Straight Type 2	3	Tube	613001
61001011921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001011921 (rev1).pdf \| 77 KB IGS Download_IGES_61001011921 (rev1).iges \| 1.1 MB STP 61001011921 (rev1).stp \| 264.2 KB Download all 6 files as zip archive ZIP	10	Single	Socket Header	Straight Type 1	3	Tube	613001
61001013321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001013321 (rev1).pdf \| 77 KB IGS Download_IGES_61001013321 (rev1).iges \| 1.1 MB STP 61001013321 (rev1).stp \| 264.2 KB Download all 6 files as zip archive ZIP	10	Single	Socket Header	Straight Type 2	3	Tube	613001
61001211921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001211921 (rev1).pdf \| 84 KB IGS Download_IGES_61001211921 (rev1).iges \| 1.3 MB STP 61001211921 (rev1).stp \| 291.9 KB Download all 6 files as zip archive ZIP	12	Single	Socket Header	Straight Type 1	3	Tube	–
61001213321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001213321 (rev1).pdf \| 84 KB IGS Download_IGES_61001213321 (rev1).iges \| 1.3 MB STP 61001213321 (rev1).stp \| 292 KB Download all 6 files as zip archive ZIP	12	Single	Socket Header	Straight Type 2	3	Tube	–
61001413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001413321 (rev1).pdf \| 91.1 KB IGS Download_IGES_61001413321 (rev1).iges \| 1.4 MB STP 61001413321 (rev1).stp \| 323.2 KB Download all 6 files as zip archive ZIP	14	Single	Socket Header	Straight Type 2	3	Tube	–
61001611921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001611921 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001611921 (rev1).iges \| 1.5 MB STP 61001611921 (rev1).stp \| 354.3 KB Download all 6 files as zip archive ZIP	16	Single	Socket Header	Straight Type 1	3	Tube	–
61001613321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61001613321 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001613321 (rev1).iges \| 1.5 MB STP 61001613321 (rev1).stp \| 354.5 KB Download all 6 files as zip archive ZIP	16	Single	Socket Header	Straight Type 2	3	Tube	–
61002011921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61002011921 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002011921 (rev1).iges \| 1.8 MB STP 61002011921 (rev1).stp \| 416.6 KB Download all 6 files as zip archive ZIP	20	Single	Socket Header	Straight Type 1	3	Tube	613001
61002013321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 6100xx13321_1 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002013321 (rev1).iges \| 1.8 MB STP 61002013321 (rev1).stp \| 416.7 KB Download all 6 files as zip archive ZIP	20	Single	Socket Header	Straight Type 2	3	Tube	613001
61002411921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP IGS Download_IGES_61002411921 (rev1).iges \| 2.1 MB STP 61002411921 (rev1).stp \| 479.6 KB Download all 5 files as zip archive ZIP	24	Single	Socket Header	Straight Type 1	3	Tube	–
61002413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 3D_61002413321 (rev1).pdf \| 125.6 KB IGS Download_IGES_61002413321 (rev1).iges \| 2.1 MB STP 61002413321 (rev1).stp \| 479.7 KB Download all 6 files as zip archive ZIP	24	Single	Socket Header	Straight Type 2	3	Tube	–

Order Code	Datasheet
61000411921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61000413321	SPEC
61000511921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61000513321	SPEC
61000611921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61000613321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61000811921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61000813321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61001011921	SPEC
61001013321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61001211921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61001213321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61001413321	SPEC
61001611921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61001613321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61002011921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61002013321	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61002411921	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 28/11/2021 SPEC Datasheet valid from 29/11/2021 PCN PCN document
61002413321	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm THT Pin Header

WR-PHD 2.54 mm THT Angled Pin Header

WR-PHD 2.54 mm SMT Pin Header

WR-PHD 2.54 mm THT Board Stacker

WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-PHD Pin & Socket Header
