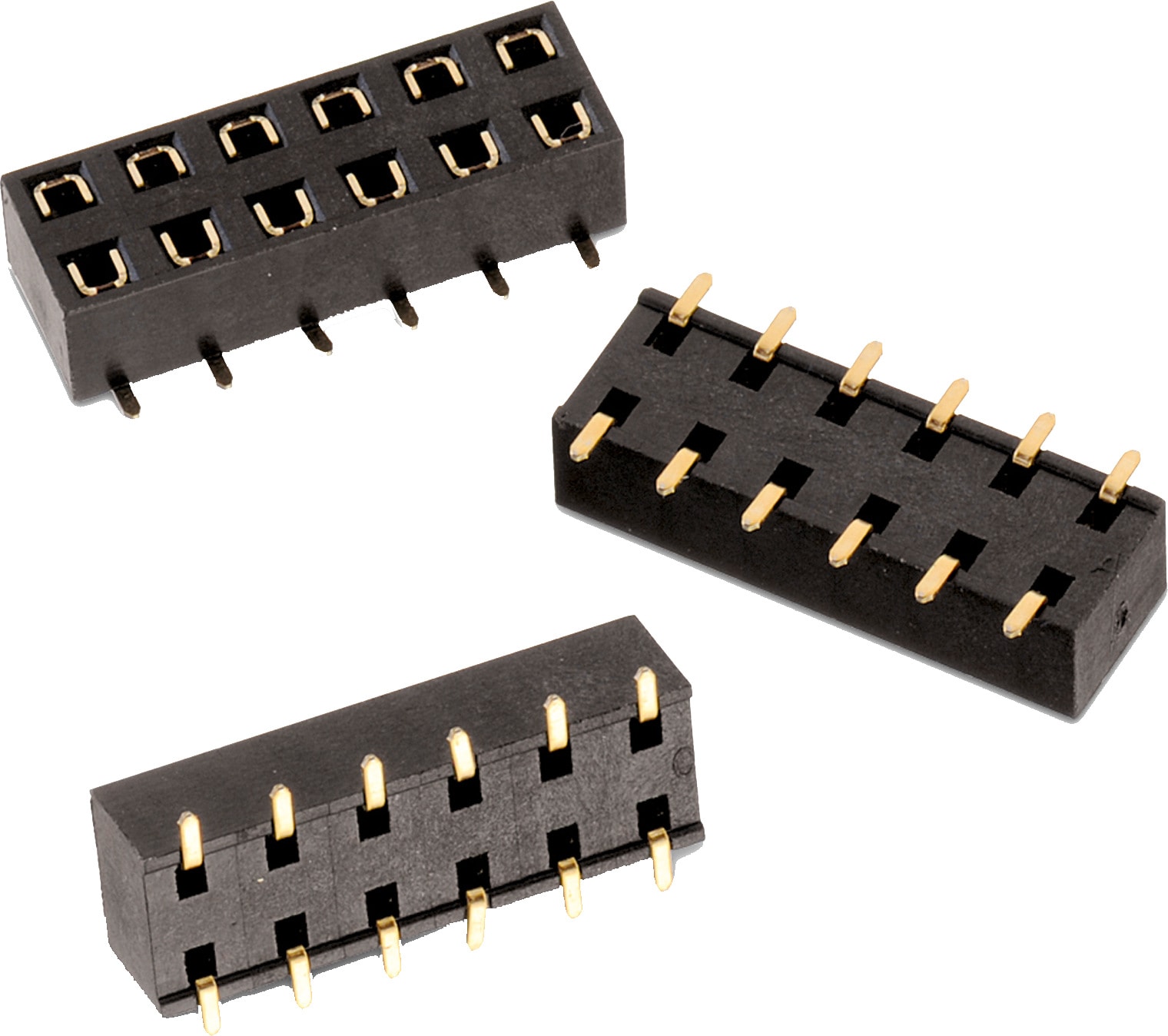

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 16 pcs; 18 pcs; 20 pcs; 22 pcs; 24 pcs; 26 pcs; 32 pcs; 34 pcs; 40 pcs

Material Properties
Insulator Material	PA6T; PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy; Phosphor Bronze
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +125 °C
Compliance	Lead free / RoHS
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Socket Header
Type	Bottom Entry Low Profile

Electrical Properties
I_R	3 A
Withstanding Voltage	500 V (AC); 600 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
610004243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610004243021_1 (rev1).pdf \| 60.9 KB IGS 610004243021 (rev1).igs \| 779.5 KB STP 610004243021 (rev1).stp \| 302.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610304243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610304243021_1 (rev1).pdf \| 73.2 KB IGS Download_IGES_610304243021 (rev1).iges \| 1 MB STP 610304243021 (rev1).stp \| 235.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610006243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610006243021_1 (rev1).pdf \| 72.5 KB IGS 610006243021 (rev1).igs \| 916.2 KB STP 610006243021 (rev1).stp \| 357.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610306243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610306243021_1 (rev1).pdf \| 84.4 KB IGS Download_IGES_610306243021 (rev1).iges \| 1.2 MB STP 610306243021 (rev1).stp \| 271.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610008243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610008243021_1 (rev1).pdf \| 81.1 KB IGS 610008243021 (rev1).igs \| 1 MB STP 610008243021 (rev1).stp \| 413 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	613001
610308243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610308243021_1 (rev1).pdf \| 93 KB IGS Download_IGES_610308243021 (rev1).iges \| 1.4 MB STP 610308243021 (rev1).stp \| 312.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610010243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610010243021_1 (rev1).pdf \| 90.8 KB IGS 610010243021 (rev1).igs \| 1.2 MB STP 610010243021 (rev1).stp \| 468.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	613001
610310243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610310243021_1 (rev1).pdf \| 102.7 KB IGS Download_IGES_610310243021 (rev1).iges \| 1.6 MB STP 610310243021 (rev1).stp \| 354.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610012243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610012243021_1 (rev1).pdf \| 100.5 KB IGS 610012243021 (rev1).igs \| 1.3 MB STP 610012243021 (rev1).stp \| 523.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610312243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610312243021_1 (rev1).pdf \| 112.4 KB IGS Download_IGES_610312243021 (rev1).iges \| 1.7 MB STP 610312243021 (rev1).stp \| 395.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610016243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610016243021_1 (rev1).pdf \| 101.1 KB IGS 610016243021 (rev1).igs \| 1.6 MB STP 610016243021 (rev1).stp \| 635.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610316243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610316243021_1 (rev1).pdf \| 113 KB IGS Download_IGES_610316243021 (rev1).iges \| 1.8 MB STP 610316243021 (rev1).stp \| 408 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610018243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610018243021_1 (rev1).pdf \| 108.6 KB IGS 610018243021 (rev1).igs \| 1.7 MB STP 610018243021 (rev1).stp \| 692.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610318243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610318243021_1 (rev1).pdf \| 120.5 KB IGS Download_IGES_610318243021 (rev1).iges \| 1.9 MB STP 610318243021 (rev1).stp \| 442.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610020243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610020243021_1 (rev1).pdf \| 120.3 KB IGS 610020243021 (rev1).igs \| 1.8 MB STP 610020243021 (rev1).stp \| 749.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	613001
610320243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610320243021_1 (rev1).pdf \| 132.2 KB IGS Download_IGES_610320243021 (rev1).iges \| 2.1 MB STP 610320243021 (rev1).stp \| 477.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Bottom Entry Low Profile	3	Tape and Reel with Cap	–
610022243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610022243021_1 (rev1).pdf \| 123.2 KB IGS 610022243021 (rev1).igs \| 2 MB STP 610022243021 (rev1).stp \| 807.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610024243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610024243021_1 (rev1).pdf \| 130.7 KB IGS 610024243021 (rev1).igs \| 2.1 MB STP 610024243021 (rev1).stp \| 864.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610026243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610026243021_1 (rev1).pdf \| 146.7 KB IGS 610026243021 (rev1).igs \| 2.2 MB STP 610026243021 (rev1).stp \| 922.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	26	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610032243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610032243021_1 (rev1).pdf \| 170.6 KB IGS 610032243021 (rev1).igs \| 2.6 MB STP 610032243021 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610034243021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 610034243021_1 (rev1).pdf \| 178.3 KB IGS 610034243021 (rev1).igs \| 2.8 MB STP 610034243021 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	34	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
610040243021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_ConPSHD_610040243021 (rev1).pdf \| 252.7 KB STP STP_ConPSHD_610040243021 (rev1).stp \| 968.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	Dual	Socket Header	Bottom Entry Low Profile	3	Tube	–
