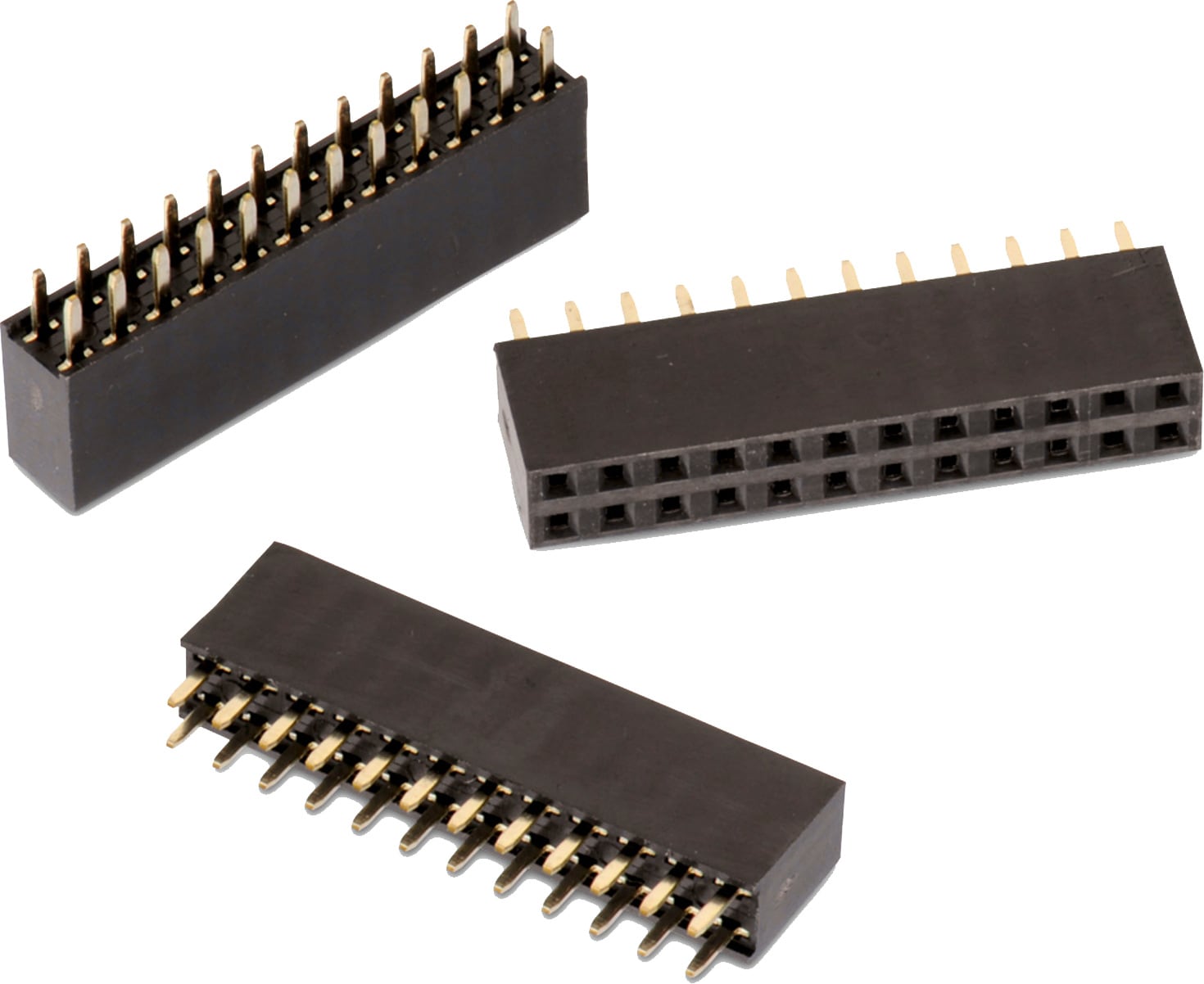

WR-PHD 2.54 mm Dual Socket Header

Article Properties
Pins 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30; 32; 34; 36; 40; 44; 64; 72
Kind Properties
Pitch 2.54 mm
Quality Class 3 as per CECC 75 301-802
Rows Dual
Gender Socket Header
Type Straight
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance Lead free / RoHS
Electrical Properties
Rated Current 3 A
IR 1 3 A
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tray

Products

Order Code SPEC Downloads Pins Rows Gender Type IR 1
(A)
Packaging Design Kit Samples
61300421821
IGE STE 3D ALT EAG CAD 4 Dual Socket Header Straight 3 Tray
61300621821
IGE STE 3D ALT EAG IGS CAD 6 Dual Socket Header Straight 3 Tray
61300821821
IGE STE 3D ALT EAG IGS CAD 8 Dual Socket Header Straight 3 Tray 613001
61301021821
IGE STE 3D ALT EAG CAD 10 Dual Socket Header Straight 3 Tray 613001
61301221821
IGE STE 3D ALT EAG IGS CAD 12 Dual Socket Header Straight 3 Tray
61301421821
IGE STE 3D ALT EAG IGS CAD 14 Dual Socket Header Straight 3 Tray
61301621821
IGE STE 3D ALT EAG IGS CAD 16 Dual Socket Header Straight 3 Tray
61301821821
IGE STE 3D ALT EAG IGS CAD 18 Dual Socket Header Straight 3 Tray
61302021821
IGE STE 3D ALT EAG IGS CAD 20 Dual Socket Header Straight 3 Tray 613001
61302221821
IGE STE 3D ALT EAG IGS CAD 22 Dual Socket Header Straight 3 Tray
61302421821
IGE STE 3D ALT EAG IGS CAD 24 Dual Socket Header Straight 3 Tray
61302621821
IGE STE 3D ALT EAG IGS CAD 26 Dual Socket Header Straight 3 Tray
61302821821
IGE STE 3D ALT EAG IGS CAD 28 Dual Socket Header Straight 3 Tray
61303021821
IGE STE 3D ALT EAG IGS CAD 30 Dual Socket Header Straight 3 Tray 612690
61303221821
IGE STE 3D ALT EAG IGS CAD 32 Dual Socket Header Straight 3 Tray
61303421821
STE 3D ALT EAG IGS CAD 34 Dual Socket Header Straight 3 Tray
61303621821
IGE STE 3D ALT EAG IGS CAD 36 Dual Socket Header Straight 3 Tray
61304021821
IGE STE 3D ALT EAG IGS CAD 40 Dual Socket Header Straight 3 Tray
61304421821
IGE STE 3D ALT EAG IGS CAD 44 Dual Socket Header Straight 3 Tray
61306421821
IGE STE 3D ALT EAG IGS CAD 64 Dual Socket Header Straight 3 Tray
61307221821
IGE STE 3D ALT EAG IGS CAD 72 Dual Socket Header Straight 3 Tray
