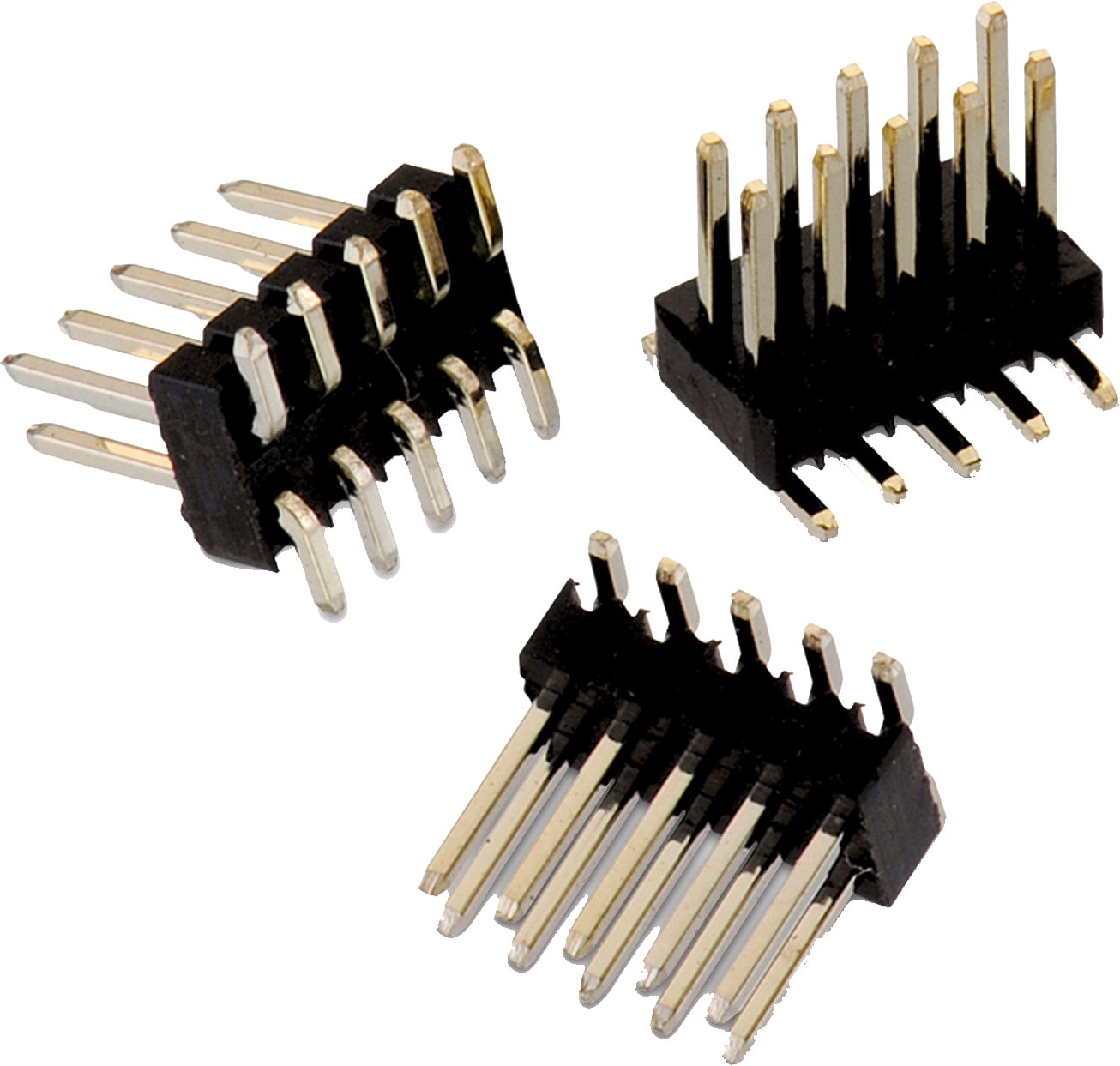

WR-PHD 1.27 mm SMT Dual Pin Header, H=3.80 mm

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 14 pcs; 16 pcs; 20 pcs; 28 pcs; 40 pcs; 44 pcs; 50 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	1.27 mm
Durability	50 Cycles
Rows	Dual
Gender	Pin Header
Type	Straight

Electrical Properties
I_R	1 A
Withstanding Voltage	300 V (AC)
Contact Resistance	20 mΩ
R_ISO	500 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
62100421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62100421021 (rev1).pdf \| 29 KB IGS 62100421021 (rev1).iges \| 352.7 KB STP 62100421021 (rev1).stp \| 86.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Straight	1	Tube	–
62130421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62130421021 (rev1).pdf \| 40.7 KB IGS 62130421021 (rev1).iges \| 536.1 KB STP 62130421021 (rev1).stp \| 131.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Straight	1	Tape and Reel with Cap	613001
62130621021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_62130621021 (rev1).pdf \| 50.8 KB IGS Download_IGES_62130621021 (rev1).iges \| 648.4 KB STP 62130621021 (rev1).stp \| 159.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
62100821021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62100821021 (rev1).pdf \| 45 KB IGS 62100821021 (rev1).iges \| 576.3 KB STP 62100821021 (rev1).stp \| 146.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Straight	1	Tube	–
62130821021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62130821021 (rev1).pdf \| 56.3 KB IGS 62130821021 (rev1).iges \| 759.6 KB STP 62130821021 (rev1).stp \| 192.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Straight	1	Tape and Reel with Cap	613001
62131021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131021021 (rev1).pdf \| 63.2 KB IGS 62131021021 (rev1).iges \| 871.9 KB STP 62131021021 (rev1).stp \| 221.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Straight	1	Tape and Reel with Cap	613001
62101021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101021021 (rev1).pdf \| 51.8 KB IGS 62101021021 (rev1).iges \| 688.4 KB STP 62101021021 (rev1).stp \| 176.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Straight	1	Tube	–
62101421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101421021 (rev1).pdf \| 65.4 KB IGS 62101421021 (rev1).iges \| 912.7 KB STP 62101421021 (rev1).stp \| 237.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Pin Header	Straight	1	Tube	–
62131421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131421021 (rev1).pdf \| 76.7 KB IGS 62131421021 (rev1).iges \| 1.1 MB STP 62131421021 (rev1).stp \| 283.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Pin Header	Straight	1	Tape and Reel with Cap	613001
62101621021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101621021 (rev1).pdf \| 72.3 KB IGS 62101621021 (rev1).iges \| 1023.6 KB STP 62101621021 (rev1).stp \| 267.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Straight	1	Tube	–
62131621021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131621021 (rev1).pdf \| 83.7 KB IGS 62131621021 (rev1).iges \| 1.2 MB STP 62131621021 (rev1).stp \| 313.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
62102021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62102021021 (rev1).pdf \| 83.9 KB IGS 62102021021 (rev1).iges \| 1.2 MB STP 62102021021 (rev1).stp \| 327.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Straight	1	Tube	–
62132021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62132021021 (rev1).pdf \| 95.3 KB IGS 62132021021 (rev1).iges \| 1.4 MB STP 62132021021 (rev1).stp \| 373.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Straight	1	Tape and Reel with Cap	613001
62102821021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62102821021 (rev1).pdf \| 113.4 KB IGS 62102821021 (rev1).iges \| 1.7 MB STP 62102821021 (rev1).stp \| 448.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	28	Dual	Pin Header	Straight	1	Tube	–
62132821021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62132821021 (rev1).pdf \| 124.8 KB IGS 62132821021 (rev1).iges \| 1.8 MB STP 62132821021 (rev1).stp \| 496.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	28	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
62104021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62104021021 (rev1).pdf \| 154.7 KB IGS 62104021021 (rev1).iges \| 2.3 MB STP 62104021021 (rev1).stp \| 637 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	Dual	Pin Header	Straight	1	Tube	–
62134021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62134021021 (rev1).pdf \| 166.1 KB IGS 62134021021 (rev1).iges \| 2.5 MB STP 62134021021 (rev1).stp \| 684.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
62104421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62104421021 (rev1).pdf \| 168.3 KB IGS 62104421021 (rev1).iges \| 2.5 MB STP 62104421021 (rev1).stp \| 700.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Pin Header	Straight	1	Tube	–
62134421021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62134421021 (rev1).pdf \| 179.7 KB IGS 62134421021 (rev1).iges \| 2.7 MB STP 62134421021 (rev1).stp \| 747.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
62105021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62105021021 (rev1).pdf \| 189.8 KB IGS 62105021021 (rev1).iges \| 2.9 MB STP 62105021021 (rev1).stp \| 793.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	50	Dual	Pin Header	Straight	1	Tube	–
62135021021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62135021021 (rev1).pdf \| 201.1 KB IGS 62135021021 (rev1).iges \| 3 MB STP 62135021021 (rev1).stp \| 840.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	50	Dual	Pin Header	Straight	1	Tape and Reel with Cap	–
