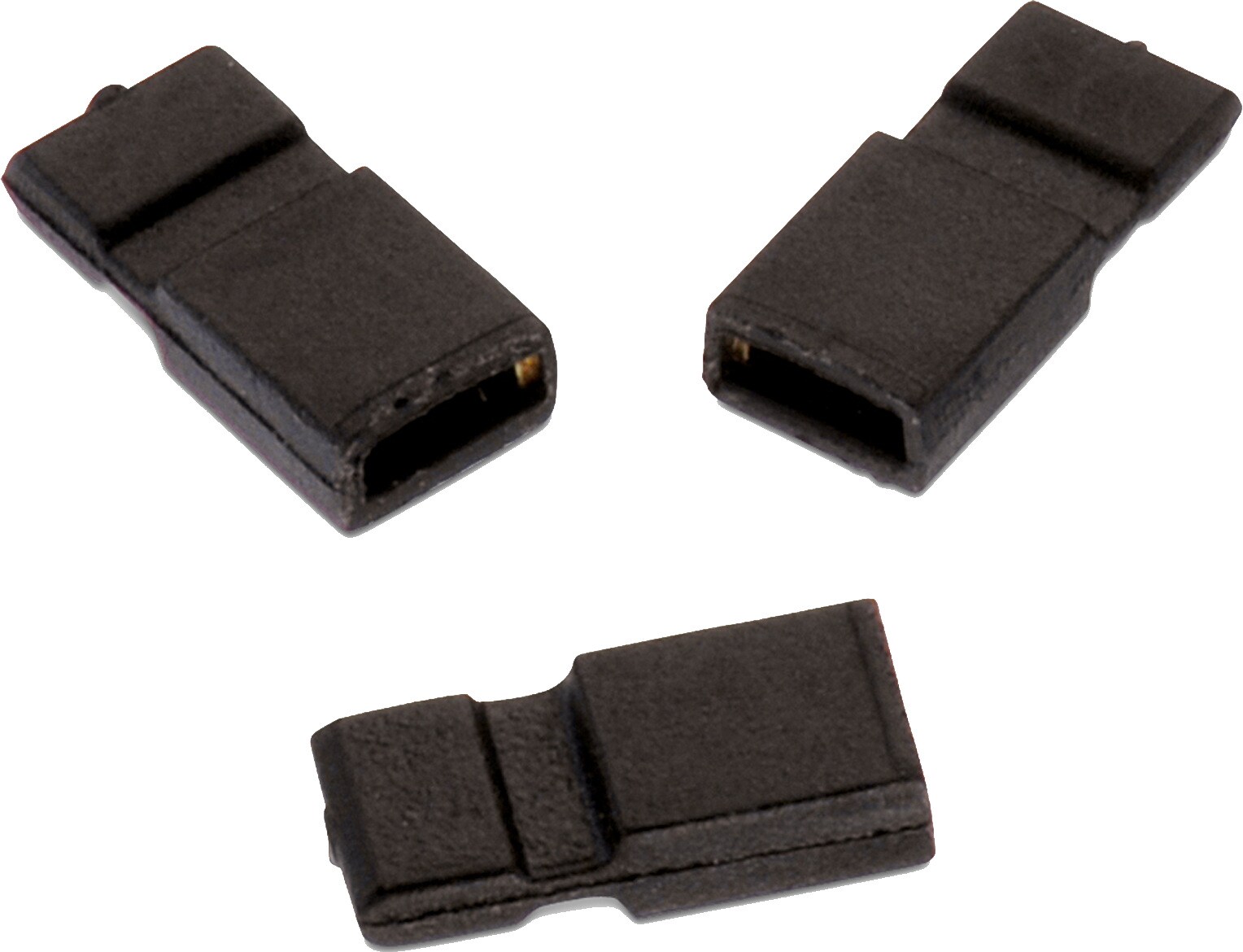

WR-PHD 1.27 mm Jumper 1x2 with Pullback

Characteristics

Reference Designs

Article Properties
Pins1
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-2
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +125 °C
Pitch1.27 mm
GenderJumper
Electrical Properties
Withstanding Voltage650 V (AC)
Contact Resistance30 mΩ
RISO1000 MΩ
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPinsGenderIR
(A)
PackagingDesign Kit Samples
622002115121SPEC
3 files 1 Jumper 1 Bag613001
Order Code Data­sheet
622002115121SPEC
Samples
Order Code Data­sheet DownloadsPinsGenderIR
(A)
PackagingDesign Kit Samples
