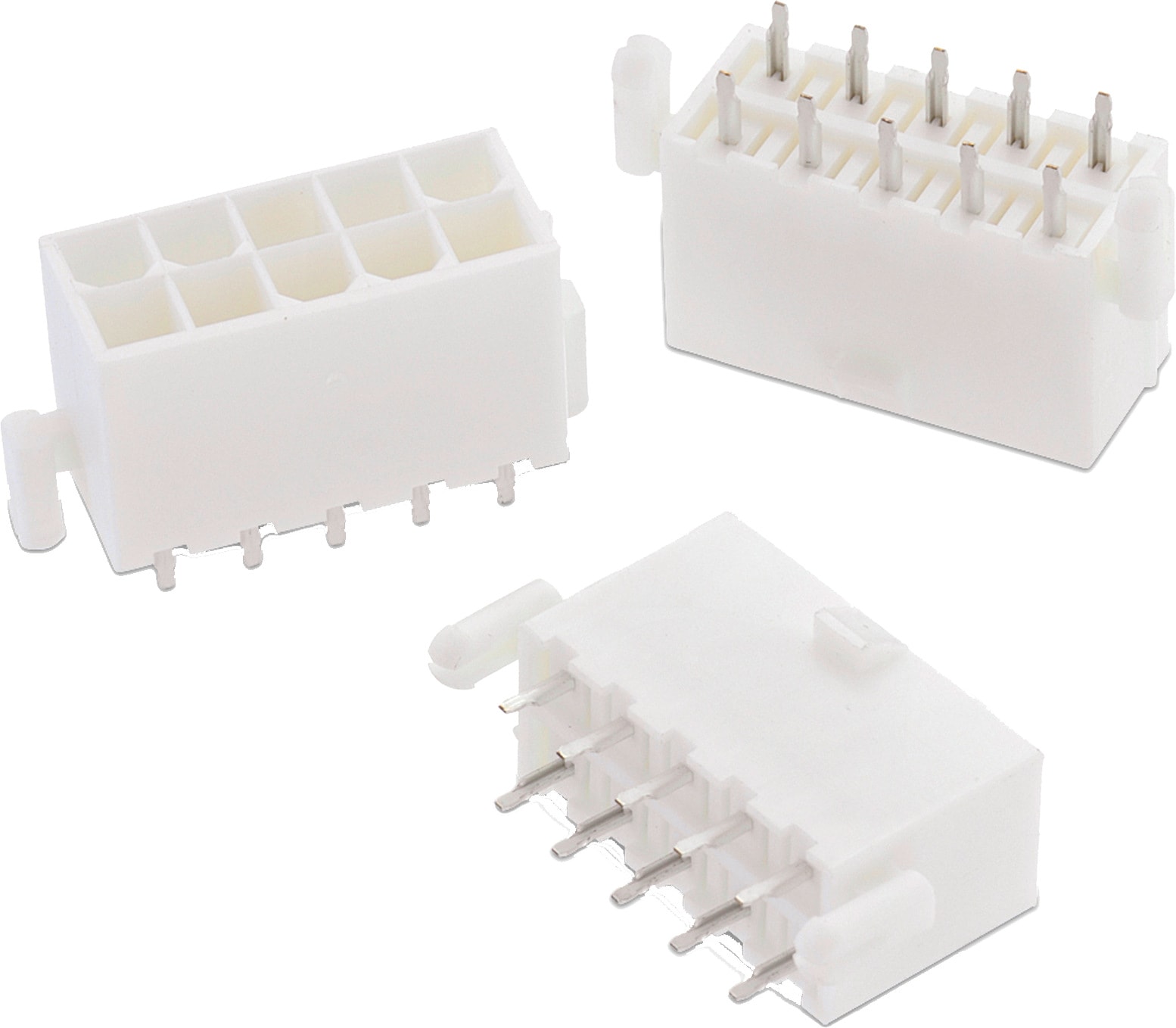

WR-MPC4 4.20 mm Male Dual Row Vertical Header w. Mounting Pegs

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
I_R	6 A; 7 A; 8 A; 9 A
Working Voltage	600 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ
Pitch	4.2 mm
Gender	Male

Certification
UL Approval	E323964

Wire Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
649002221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649002221732_1 (rev1).pdf \| 116 KB IGS Download_IGES_649002221732 (rev1).iges \| 1.4 MB STP 649002221732 (rev1).stp \| 321.7 KB Download all 6 files as zip archive ZIP	2	4.2	9	Male	Vertical	Dual	THT	600	PCB	9.4	Tray	649001
649004221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649004221732_1 (rev1).pdf \| 132.7 KB IGS Download_IGES_649004221732 (rev1).iges \| 1.8 MB STP 649004221732 (rev1).stp \| 401.6 KB Download all 6 files as zip archive ZIP	4	4.2	8	Male	Vertical	Dual	THT	600	PCB	13.6	Tray	649001
649006221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649006221732_1 (rev1).pdf \| 149.6 KB IGS Download_IGES_649006221732 (rev1).iges \| 2.1 MB STP 649006221732 (rev1).stp \| 485.4 KB Download all 6 files as zip archive ZIP	6	4.2	8	Male	Vertical	Dual	THT	600	PCB	17.8	Tray	649001
649008221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649008221732_1 (rev1).pdf \| 164.4 KB IGS 649008221732 (rev1).iges \| 2.5 MB STP 649008221732 (rev1).stp \| 566.2 KB Download all 6 files as zip archive ZIP	8	4.2	7	Male	Vertical	Dual	THT	600	PCB	22	Tray	649001
649010221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649010221732_1 (rev1).pdf \| 179.4 KB IGS Download_IGES_649010221732 (rev1).iges \| 2.8 MB STP 649010221732 (rev1).stp \| 648.7 KB Download all 6 files as zip archive ZIP	10	4.2	7	Male	Vertical	Dual	THT	600	PCB	26.2	Tray	649001
649012221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649012221732_1 (rev1).pdf \| 198.2 KB IGS Download_IGES_649012221732 (rev1).iges \| 3.1 MB STP 649012221732 (rev1).stp \| 732.3 KB Download all 6 files as zip archive ZIP	12	4.2	6	Male	Vertical	Dual	THT	600	PCB	30.4	Tray	649001
649014221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649014221732_1 (rev1).pdf \| 215.2 KB IGS Download_IGES_649014221732 (rev1).iges \| 3.5 MB STP 649014221732 (rev1).stp \| 819.1 KB Download all 6 files as zip archive ZIP	14	4.2	6	Male	Vertical	Dual	THT	600	PCB	34.6	Tray	649001
649016221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649016221732_1 (rev1).pdf \| 228.4 KB IGS Download_IGES_649016221732 (rev1).iges \| 3.8 MB STP 649016221732 (rev1).stp \| 898.6 KB Download all 6 files as zip archive ZIP	16	4.2	6	Male	Vertical	Dual	THT	600	PCB	38.8	Tray	649001
649018221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649018221732_1 (rev1).pdf \| 244.7 KB IGS Download_IGES_649018221732 (rev1).iges \| 4.2 MB STP 649018221732 (rev1).stp \| 981.5 KB Download all 6 files as zip archive ZIP	18	4.2	6	Male	Vertical	Dual	THT	600	PCB	43	Tray	649001
649020221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649020221732_1 (rev1).pdf \| 263.1 KB IGS Download_IGES_649020221732 (rev1).iges \| 4.5 MB STP 649020221732 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	20	4.2	6	Male	Vertical	Dual	THT	600	PCB	47.2	Tray	649001
649022221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649022221732_1 (rev1).pdf \| 282 KB IGS Download_IGES_649022221732 (rev1).iges \| 4.9 MB STP 649022221732 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	22	4.2	6	Male	Vertical	Dual	THT	600	PCB	51.4	Tray	649001
649024221732	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649024221732_1 (rev1).pdf \| 299.5 KB IGS 649024221732 (rev1).iges \| 5.2 MB STP 649024221732 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	24	4.2	6	Male	Vertical	Dual	THT	600	PCB	55.6	Tray	649001

Order Code	Datasheet
649002221732	SPEC
649004221732	SPEC
649006221732	SPEC
649008221732	SPEC
649010221732	SPEC
649012221732	SPEC
649014221732	SPEC
649016221732	SPEC
649018221732	SPEC
649020221732	SPEC
649022221732	SPEC
649024221732	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-MPC4 4.20 mm Female Dual Row Plug

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC4 Mini Power Connectors
