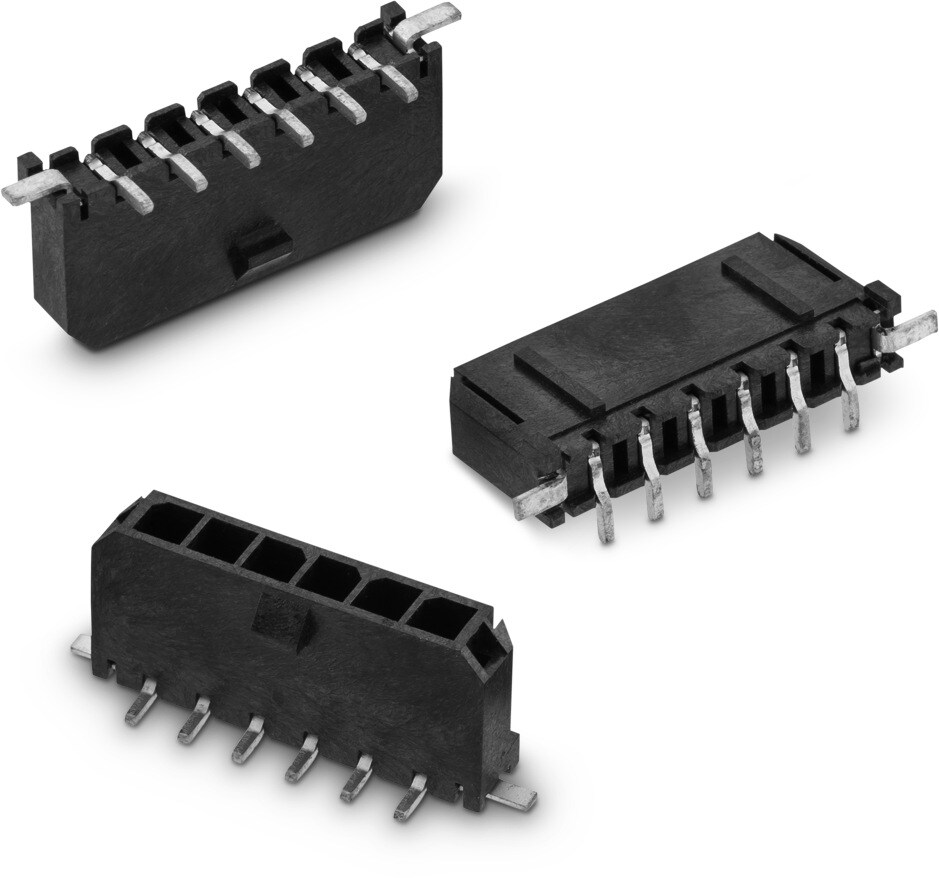

WR-MPC3 3.00 mm SMT Male Single Vertical Header with SMT Solder Tab

Kind Properties
Pitch 3 mm
Gender Male
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 1500 V (AC)
Contact Resistance 10 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Wire Properties
Packaging Tape and Reel with Cap

Products

Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Rows Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
662302131822
IGE STE 3D ALT EAG CAD 2 3 Male Vertical Single SMT 5 250 PCB 10 max. 9.65 Tape and Reel with Cap 662001
662303131822
IGE STE 3D ALT EAG CAD 3 3 Male Vertical Single SMT 5 250 PCB 10 max. 12.65 Tape and Reel with Cap 662001
662304131822
IGE STE 3D ALT EAG CAD 4 3 Male Vertical Single SMT 5 250 PCB 10 max. 15.65 Tape and Reel with Cap 662001
662305131822
IGE STE 3D ALT EAG CAD 5 3 Male Vertical Single SMT 5 250 PCB 10 max. 18.65 Tape and Reel with Cap 662001
662306131822
IGE STE 3D ALT EAG CAD 6 3 Male Vertical Single SMT 5 250 PCB 10 max. 21.65 Tape and Reel with Cap 662001
Order Code Data­sheet
662302131822
662303131822
662304131822
662305131822
662306131822
Samples
Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Rows Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
