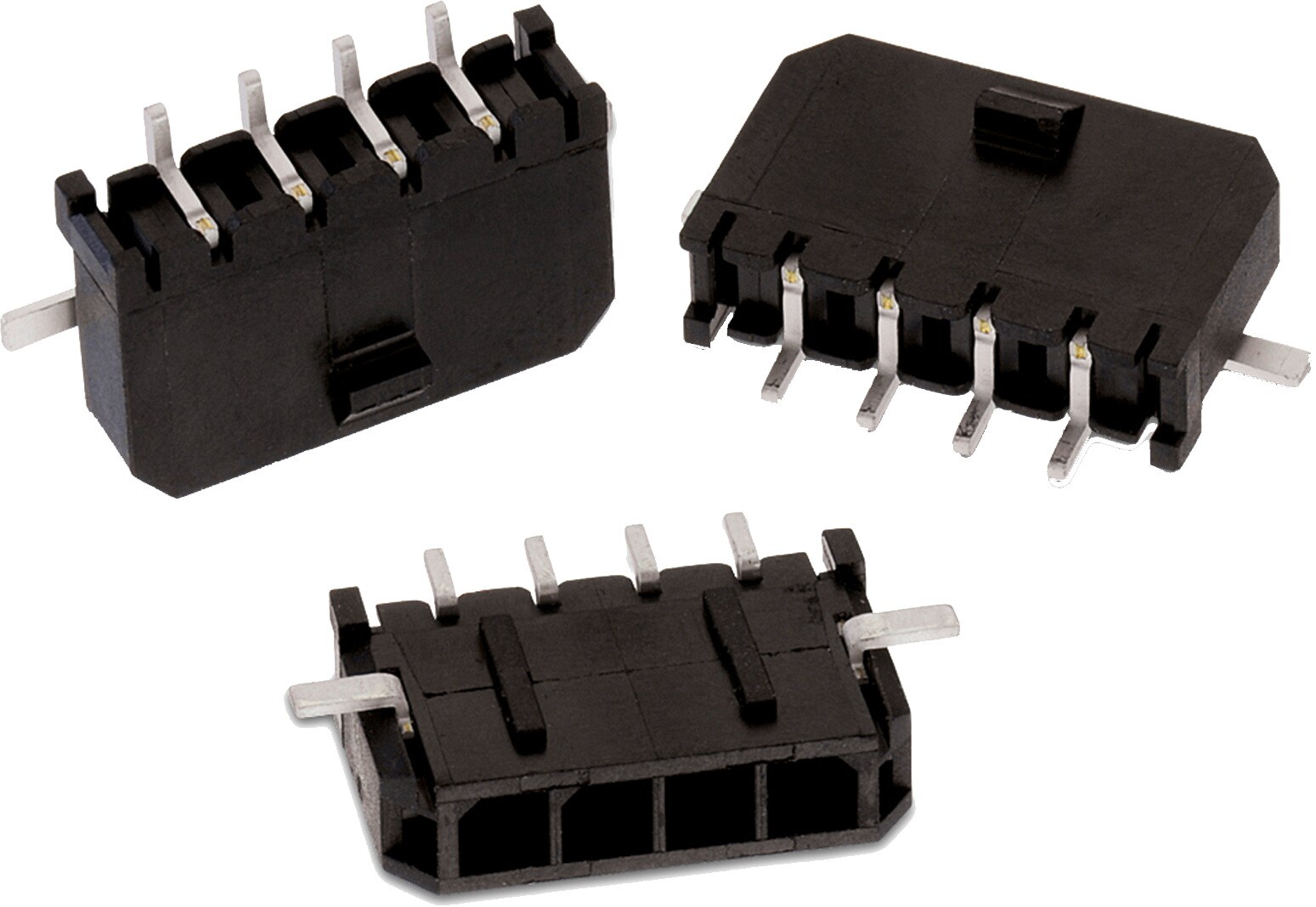

WR-MPC3 3.00 mm SMT Male Single Row Angled Header with SMT Solder Tabs – SMT - Reel - Tin

General Informations
Pitch	3 mm
Rows	Single
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tape and Reel

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662102145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662102145021 (rev1).pdf \| 63.5 KB IGS 662102145021 (rev1).igs \| 1 MB STP 662102145021 (rev1).stp \| 414.4 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662103145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662103145021 (rev1).pdf \| 70.2 KB IGS 662103145021 (rev1).igs \| 1.2 MB STP 662103145021 (rev1).stp \| 470.6 KB Download all 6 files as zip archive ZIP	3	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662104145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662104145021 (rev1).pdf \| 76.8 KB IGS 662104145021 (rev1).igs \| 1.3 MB STP 662104145021 (rev1).stp \| 526.4 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662105145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662105145021 (rev1).pdf \| 84 KB IGS 662105145021 (rev1).igs \| 1.4 MB STP 662105145021 (rev1).stp \| 582.5 KB Download all 6 files as zip archive ZIP	5	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662106145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662106145021 (rev1).pdf \| 92 KB IGS 662106145021 (rev1).igs \| 1.6 MB STP 662106145021 (rev1).stp \| 640.1 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662107145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662107145021 (rev1).pdf \| 99 KB IGS 662107145021 (rev1).igs \| 1.7 MB STP 662107145021 (rev1).stp \| 697.8 KB Download all 6 files as zip archive ZIP	7	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662108145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662108145021 (rev1).pdf \| 106 KB IGS 662108145021 (rev1).igs \| 1.9 MB STP 662108145021 (rev1).stp \| 755.7 KB Download all 6 files as zip archive ZIP	8	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662109145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662109145021 (rev1).pdf \| 113 KB IGS 662109145021 (rev1).igs \| 2 MB STP 662109145021 (rev1).stp \| 813.5 KB Download all 6 files as zip archive ZIP	9	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662110145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662110145021 (rev1).pdf \| 119.8 KB IGS 662110145021 (rev1).igs \| 2.1 MB STP 662110145021 (rev1).stp \| 871.7 KB Download all 6 files as zip archive ZIP	10	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662111145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662111145021 (rev1).pdf \| 126.8 KB IGS 662111145021 (rev1).igs \| 2.3 MB STP 662111145021 (rev1).stp \| 930 KB Download all 6 files as zip archive ZIP	11	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662112145021	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662112145021 (rev1).pdf \| 133.8 KB IGS 662112145021 (rev1).igs \| 2.4 MB STP 662112145021 (rev1).stp \| 988.4 KB Download all 6 files as zip archive ZIP	12	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001

Order Code	Datasheet
662102145021	SPEC
662103145021	SPEC
662104145021	SPEC
662105145021	SPEC
662106145021	SPEC
662107145021	SPEC
662108145021	SPEC
662109145021	SPEC
662110145021	SPEC
662111145021	SPEC
662112145021	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
