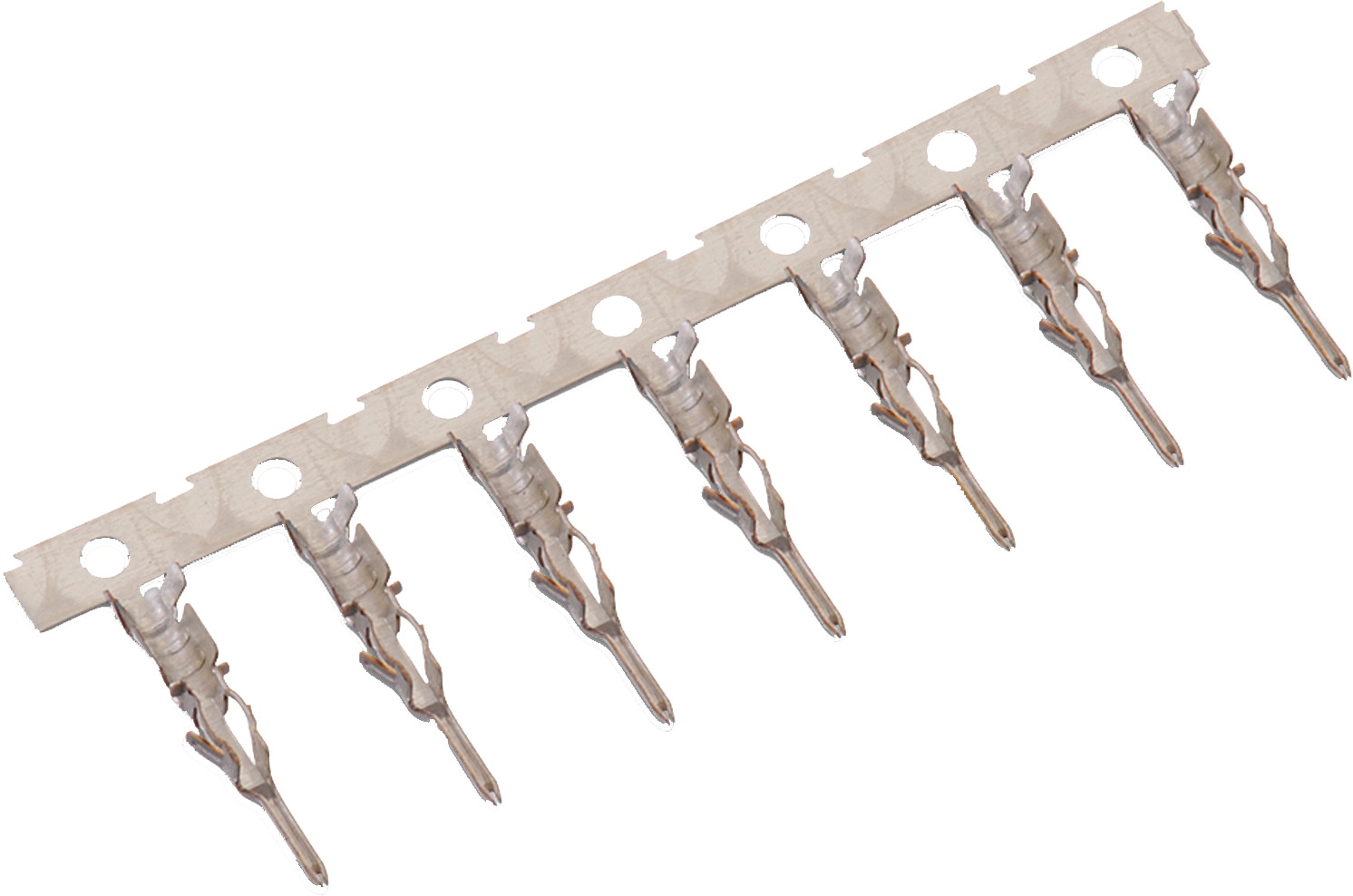

WR-MPC3 3.00 mm Male Crimp Contact

Kind Properties
Gender Male
Material Properties
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -25 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Contact Resistance 10 mΩ
Wire Properties
Stranded Wire Section (AWG) 24 to 20 (AWG); 30 to 26 (AWG)
Stranded Wire Section (Metric) 0.129 to 0.0509 (mm²)
Packaging Bag; Big Reel; Small Reel
Qty. 100; 1000; 10000

Products

Order Code Data­sheet Downloads Gender Type IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R Stranded Wire Section (AWG) Packaging Tools Use with Design Kit Samples
66200213722
IGE STE STE 3D 3D IGS Male Crimp Terminal 5 250 Cable 10 max. 24 to 20 (AWG) Big Reel 600662401
66200213722DEC
IGE STE 3D Male Crimp Terminal 5 250 Cable 10 max. 24 to 20 (AWG) Bag 600300300001
600001
612690
662001
66210213722
IGE IGE STE STE 3D Male Crimp Terminal 5 250 Cable 10 max. 24 to 20 (AWG) Small Reel 600662401
66200513722
IGE STE STE 3D 3D Male Crimp Terminal 5 250 Cable 10 max. 30 to 26 (AWG) Big Reel 600662404
66210513722
IGE IGE STE STE 3D Male Crimp Terminal 5 250 Cable 10 max. 30 to 26 (AWG) Small Reel 600662404
66200513722DEC
IGE STE STE 3D Male Crimp Terminal 5 250 Cable 10 max. 30 to 26 (AWG) Bag 600300300001
600001
662001
Order Code Data­sheet
66200213722
66200213722DEC
66210213722
66200513722
66210513722
66200513722DEC
Samples
Order Code Data­sheet Downloads Gender Type IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R Stranded Wire Section (AWG) Packaging Tools Use with Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
