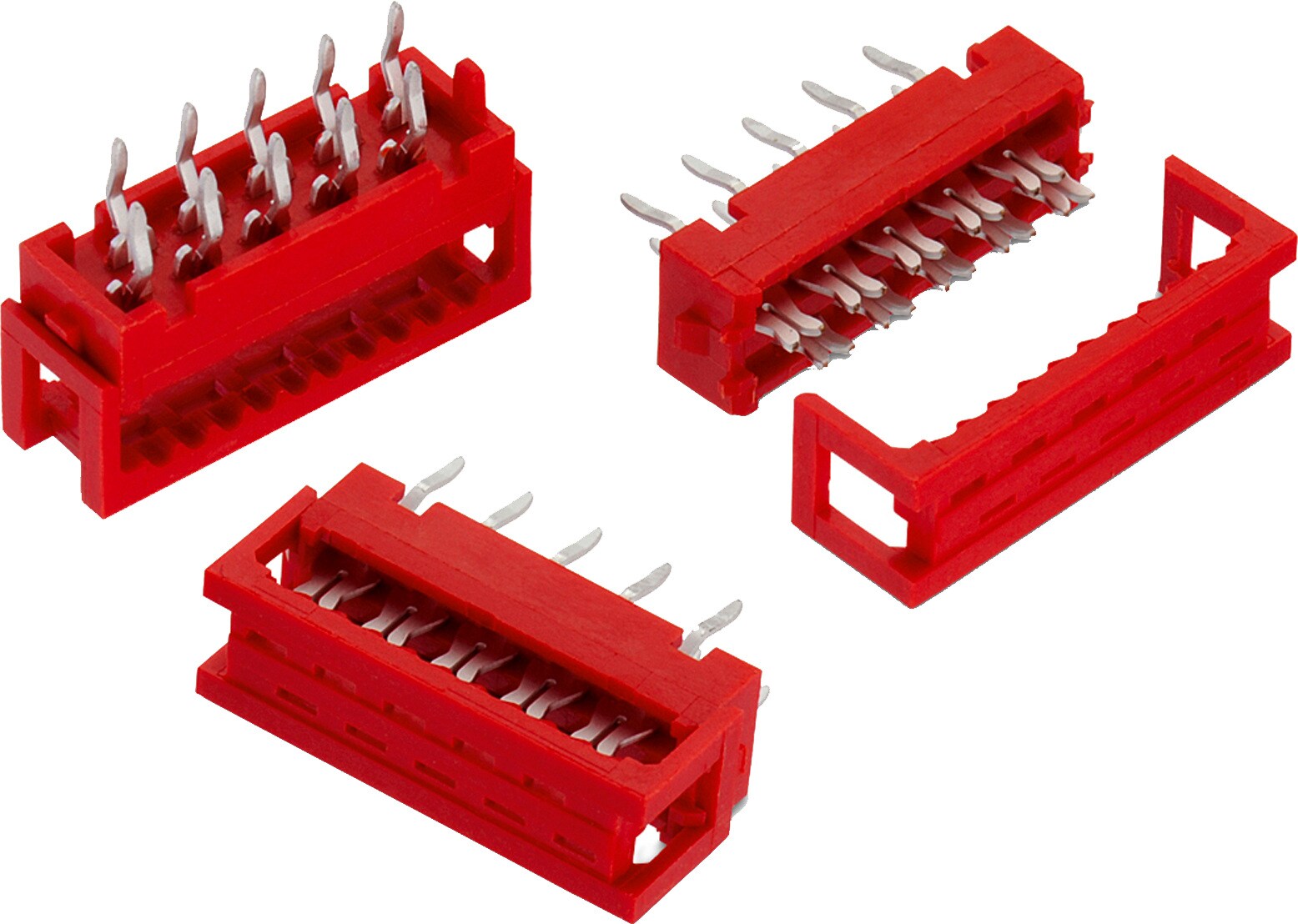

WR-MM Transition Connector

Kind Properties
Pitch2.54 mm
GenderTransition
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorRed
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Working Voltage100 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
cULus ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderL
(mm)
Working Voltage
(V (AC))
IR
(A)
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
690207100472SPEC
6 files 4 2.54 Transition 8.51 100 1 10 max. Tube690001
690207100672SPEC
6 files 6 2.54 Transition 11.05 100 1 10 max. Tube690001
690207100872SPEC
6 files 8 2.54 Transition 13.59 100 1 10 max. Tube690001
690207101072SPEC
6 files 10 2.54 Transition 16.13 100 1 10 max. Tube612690
690001
690207101272SPEC
6 files 12 2.54 Transition 18.67 100 1 10 max. Tube690001
690207101472SPEC
6 files 14 2.54 Transition 21.21 100 1 10 max. Tube690001
690207101672SPEC
6 files 16 2.54 Transition 23.75 100 1 10 max. Tube690001
690207101872SPEC
6 files 18 2.54 Transition 26.29 100 1 10 max. Tube690001
690207102072SPEC
6 files 20 2.54 Transition 28.83 100 1 10 max. Tube690001
690207102272SPEC
6 files 22 2.54 Transition 31.37 100 1 10 max. Tube690001
690207102472SPEC
6 files 24 2.54 Transition 33.91 100 1 10 max. Tube690001
690207102672SPEC
6 files 26 2.54 Transition 36.45 100 1 10 max. Tube690001
Order Code Data­sheet
690207100472SPEC
690207100672SPEC
690207100872SPEC
690207101072SPEC
690207101272SPEC
690207101472SPEC
690207101672SPEC
690207101872SPEC
690207102072SPEC
690207102272SPEC
690207102472SPEC
690207102672SPEC
Samples
Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderL
(mm)
Working Voltage
(V (AC))
IR
(A)
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
