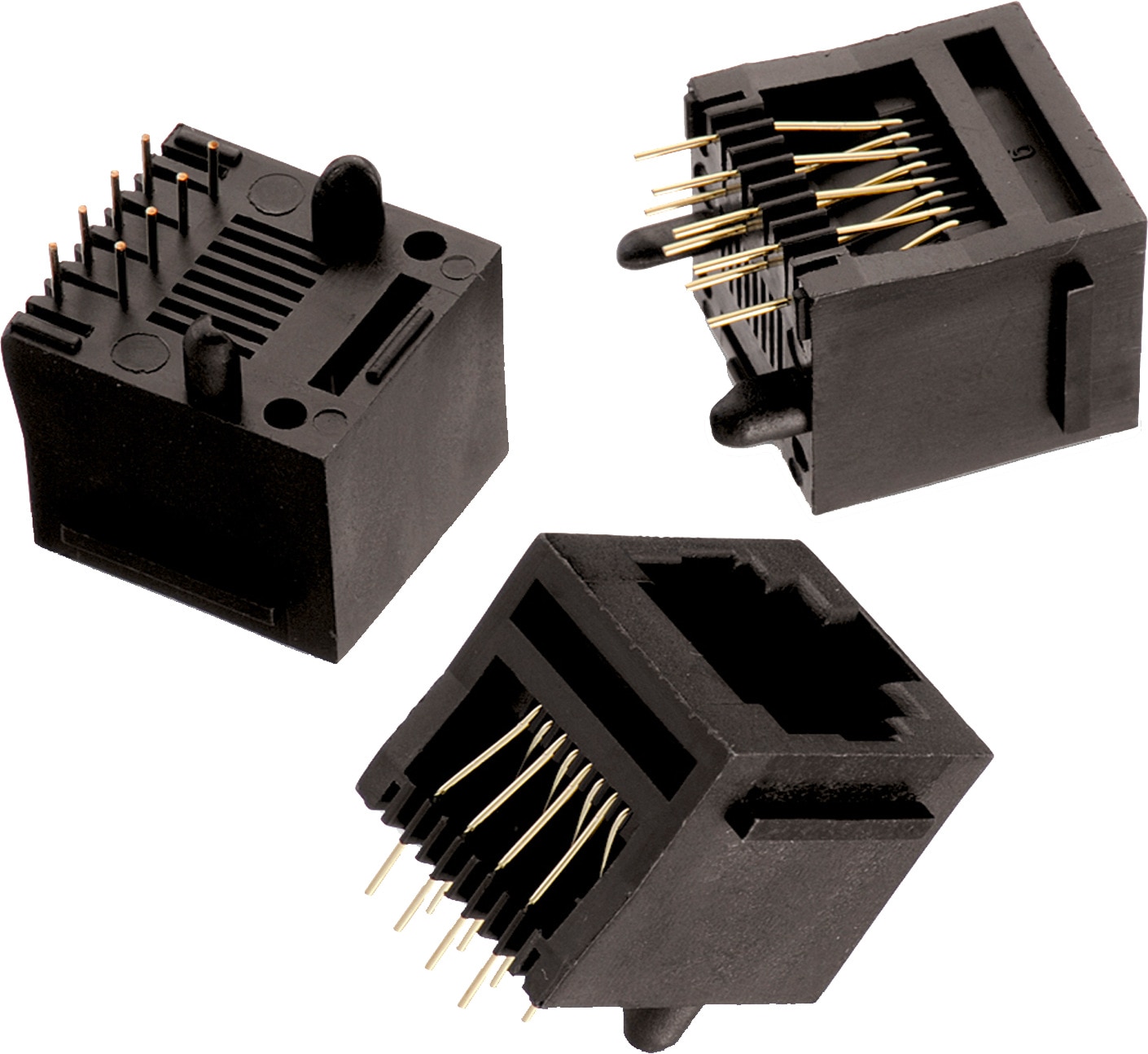

WR-MJ Modular Jack Vertical Plastic 8P8C w. Ears

General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
Shielding MaterialBronze
Shielding PlatingNickel (Ni)
Electrical Properties
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples
615008144221SPEC
7 files 8P8C Vertical THT CAT 3615001
Order Code Data­sheet
615008144221SPEC
Samples
Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples
