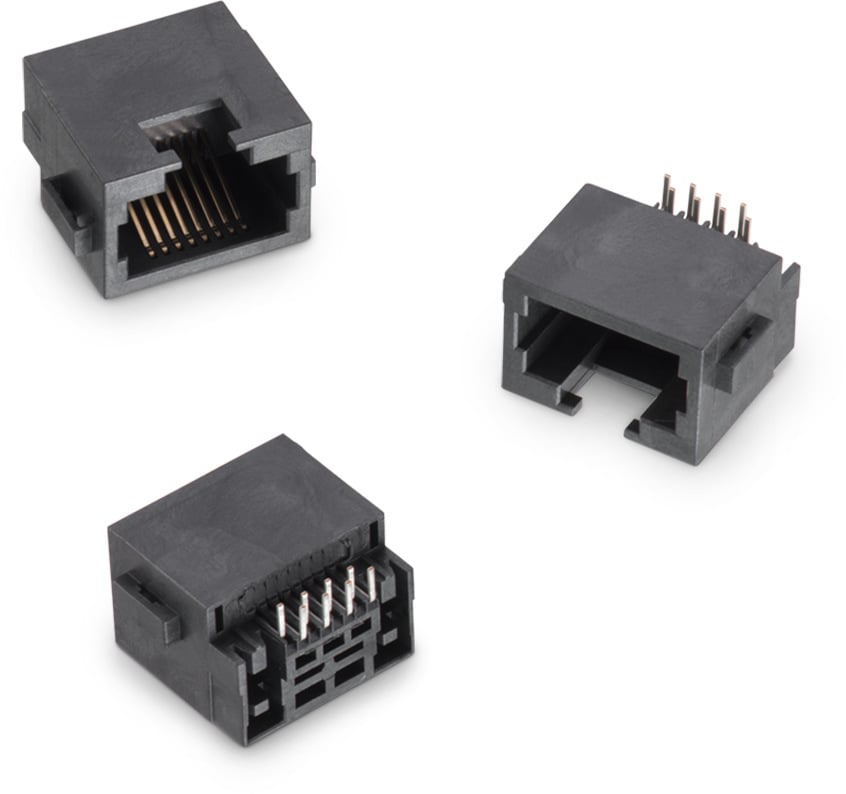

WR-MJ Modular Jack THT Horizontal Mid-Mount Plastic Tab Up

Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +85 °C
Compliance Lead free / RoHS
Electrical Properties
Working Voltage 125 V (AC)
Withstanding Voltage 1000 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Packaging Properties
Packaging Tray

Products

Order Code Data­sheet Downloads xPxC Type Mount Application System Samples
615008150021
IGE STE 3D ALT EAG CAD 8P8C Right Angle THT CAT 3
Order Code Data­sheet
615008150021
Samples
Order Code Data­sheet Downloads xPxC Type Mount Application System Samples
