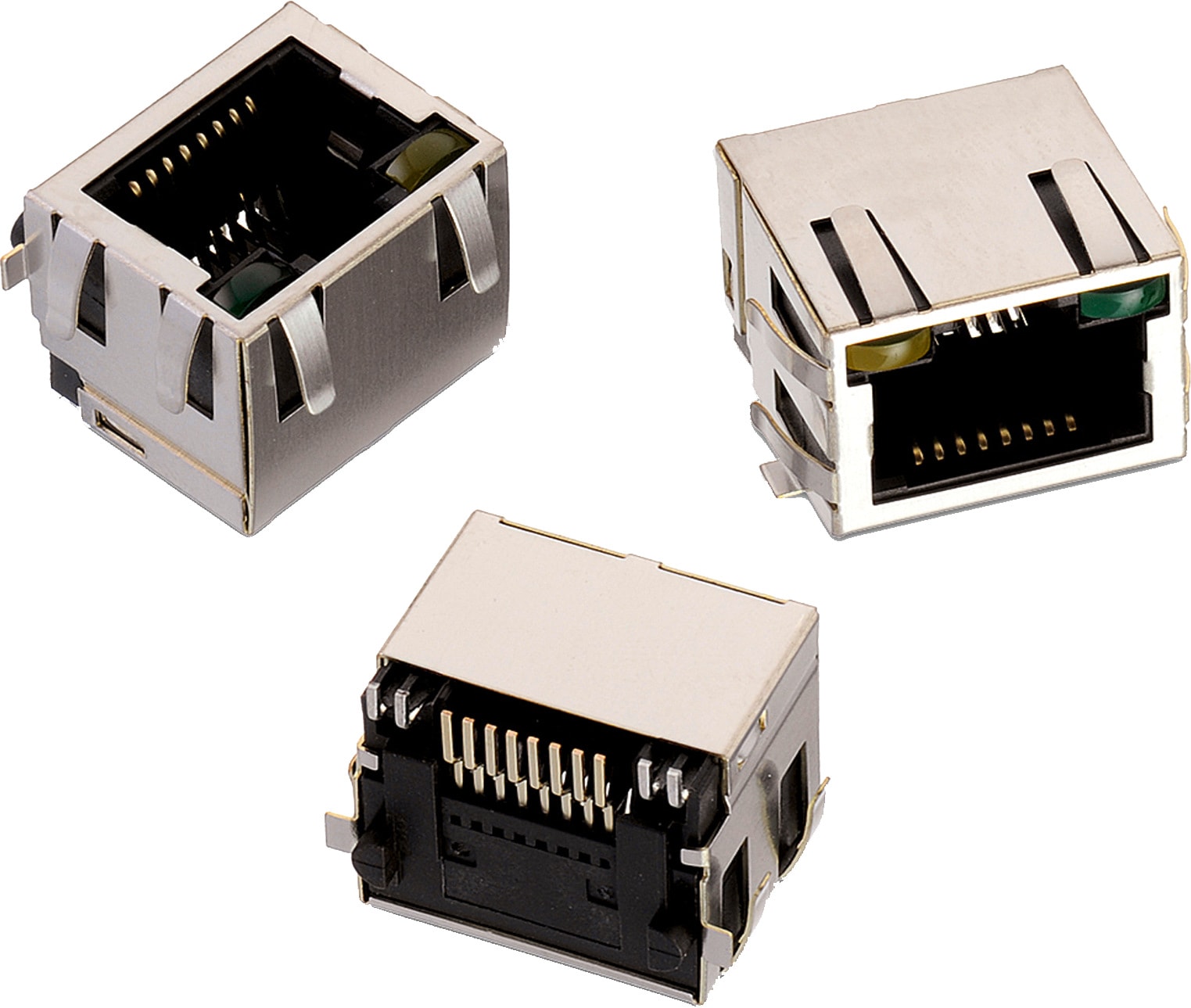

WR-MJ Modular Jack Horizontal Shielded SMT w. LED and EMI Panel Finger 8P8C Tab Up

Kind Properties
LEDyellow-green
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact Plating6 (µ") Gold
Contact TypeStamped
Shielding MaterialBrass
Shielding PlatingNickel
General Information
Operating Temperature-40 up to +85 °C
Electrical Properties
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsxPxCLEDTypeMountApplication SystemDesign Kit Samples
634008137521SPEC
6 files 8P8C yellow-green Horizontal SMT CAT 3612690
615001
749615
Order Code Data­sheet
634008137521SPEC
Samples
Order Code Data­sheet DownloadsxPxCLEDTypeMountApplication SystemDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
