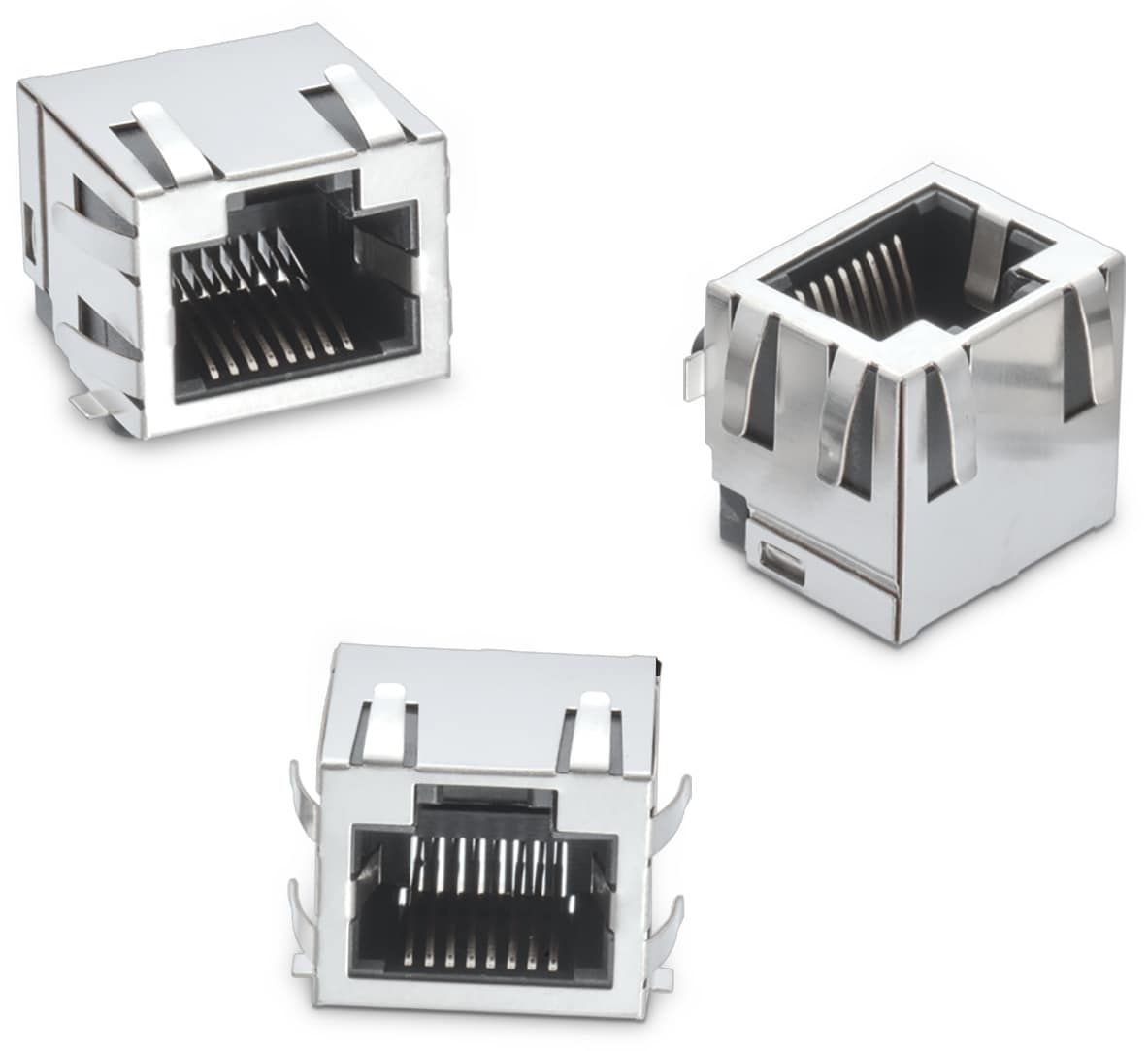

WR-MJ Modular Jack Horizontal Shielded SMT with EMI Panel Finger 8P8C

General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialBrass
Shielding PlatingNickel (Ni)
Electrical Properties
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples
634008149721SPEC
6 files 8P8C Horizontal SMT CAT 3615001
Order Code Data­sheet
634008149721SPEC
Samples
Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples
