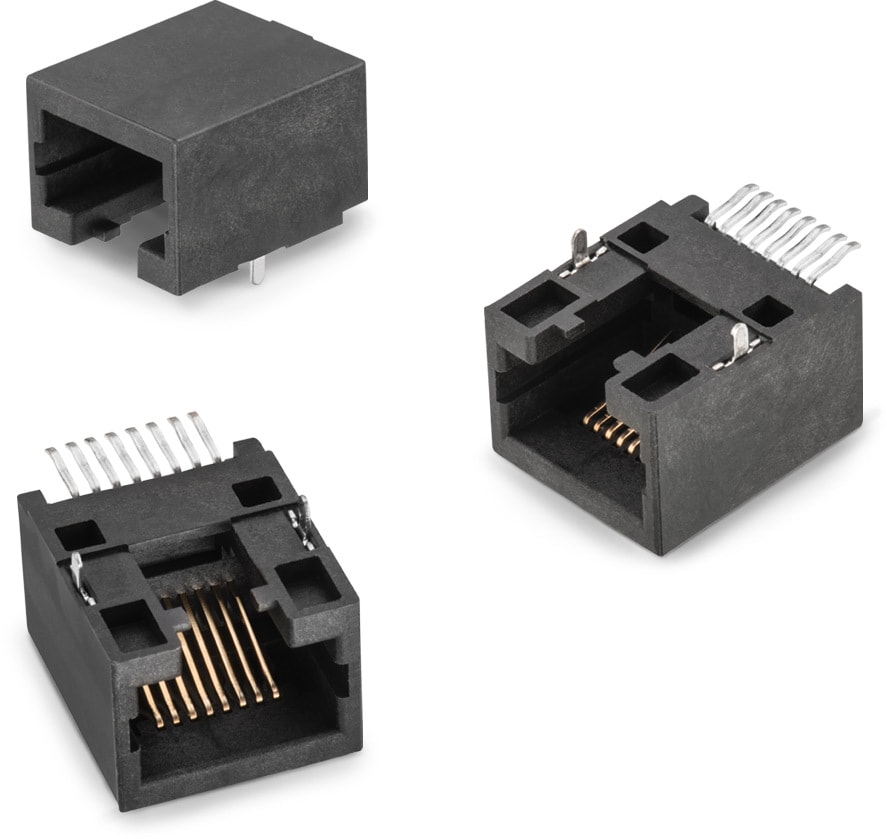

WR-MJ Modular Jack SMT Horizontal Plastic 8P8C Tab Down Low Profile

WR-MJ Modular Jack SMT Horizontal Plastic 8P8C Tab Down Low Profile
General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Electrical Properties
Working Voltage125 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance35 mΩ
RISO1000 MΩ
Packaging Properties
PackagingTape and Reel & Mylar

Products

Order Code Data­sheet Downloads StatusxPxCTabEMIMountApplication System Samples
634108185521SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

6 files Active i| Production is active. Expected lifetime: >10 years. 8P8C Down No SMT CAT 3
Order Code Data­sheet
634108185521SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Samples
Order Code Data­sheet Downloads StatusxPxCTabEMIMountApplication System Samples
