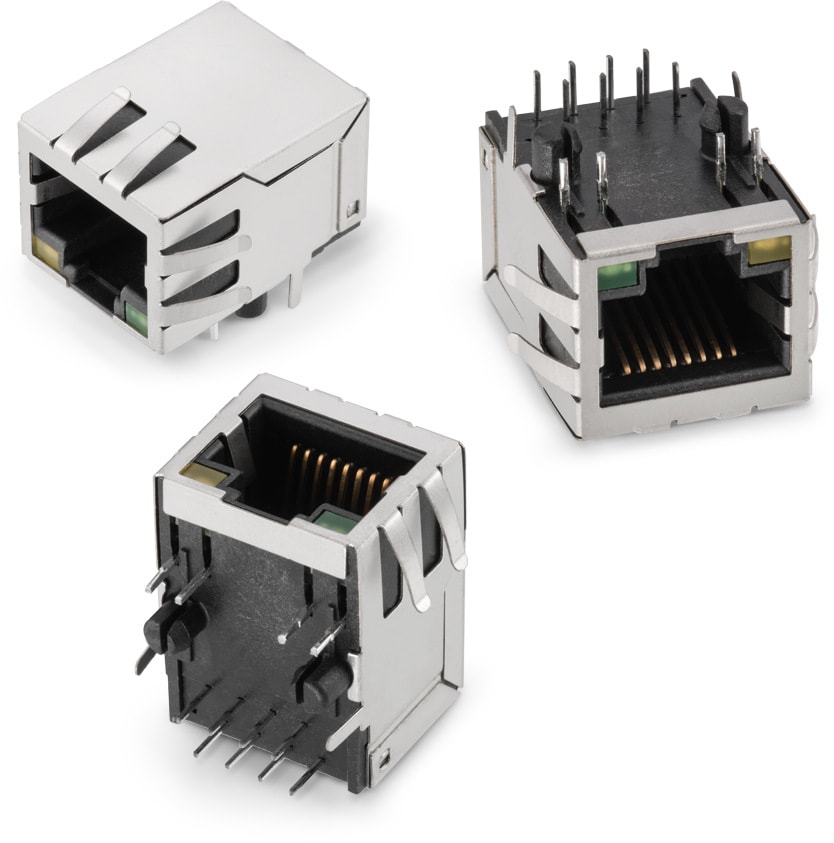

WR-MJ Modular Jack Horizontal Shielded w. LED and EMI Panel Finger 8P8C Tab Down

Kind Properties
LED yellow-green
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
Shielding Material Brass
Shielding Plating Nickel
General Information
Operating Temperature -40 up to +85 °C
Electrical Properties
Working Voltage 125 V (AC)
Withstanding Voltage 1000 V (AC)
Contact Resistance 30 mΩ
RISO 1000 MΩ
Packaging Properties
Packaging Tray
Qty. 70

Products

Order Code Data­sheet Downloads xPxC LED Type Mount Application System Design Kit Samples
615008185221
IGE STE 3D ALT EAG CAD 8P8C yellow-green Horizontal THT CAT 3 615001
Order Code Data­sheet
615008185221
Samples
Order Code Data­sheet Downloads xPxC LED Type Mount Application System Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
