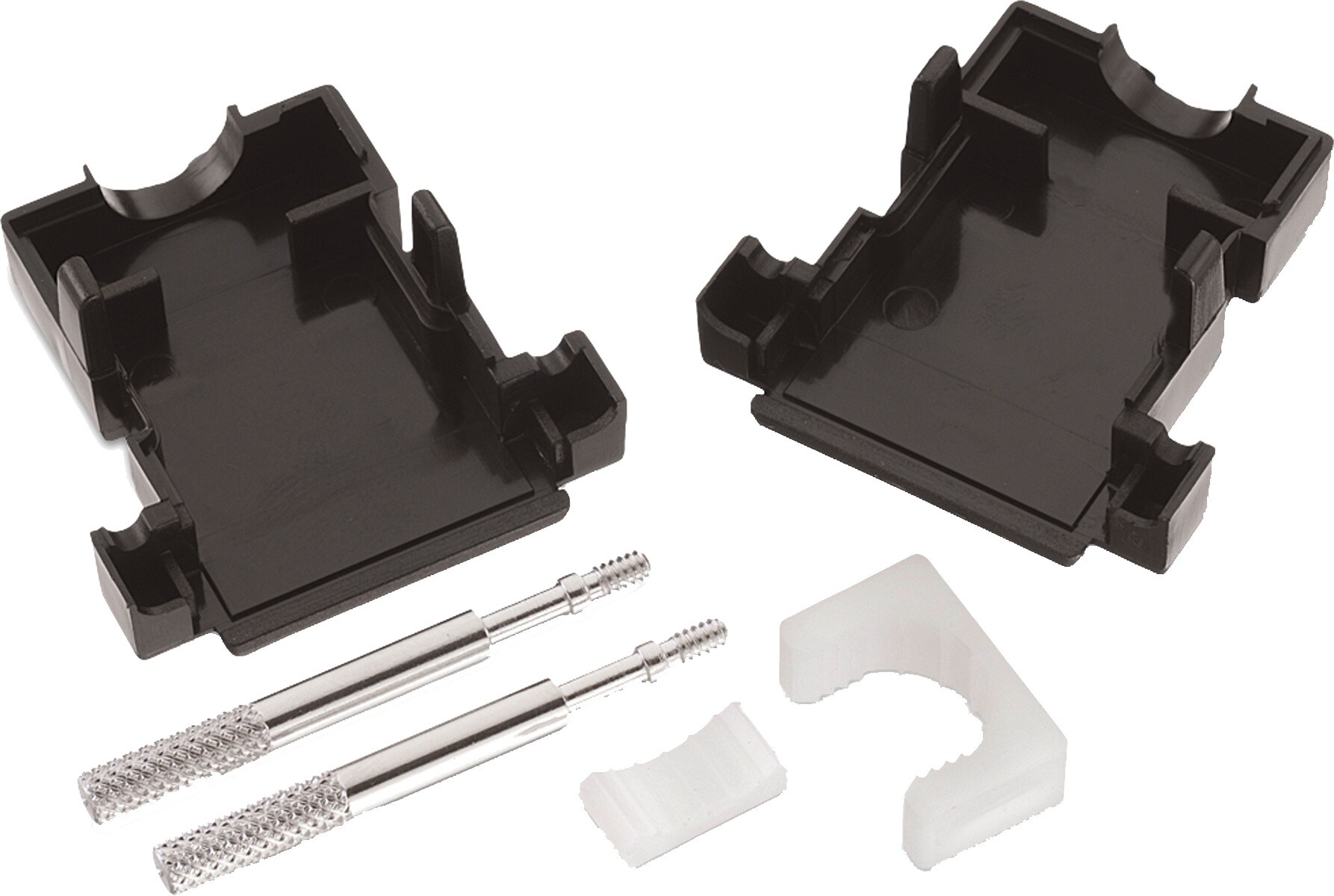

WR-DSUB Plastic Hood Small Top Entry 4-40 Screw

General Information
Compliance	RoHS
Type	Small Top Entry
Insulator Material	ABS
Insulator Flammability Rating	UL94 HB
Insulator Color	Black
Color	Black

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Pins	Type	Variant	Samples
618009214622	9, Small Top Entry, Plastic	Downloads3 files CAD files ZIP 3D 3D_618009214622 (rev1).pdf \| 765.7 KB IGS IGES_618009214622 (rev1).iges \| 9.3 MB STP STP_618009214622 (rev1).stp \| 5.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	TypeSmall Top Entry	VariantPlastic
618015214622	15, Small Top Entry, Plastic	Downloads3 files CAD files ZIP 3D 3D_618015214622 (rev1).pdf \| 767.2 KB IGS IGES_618015214622 (rev1).iges \| 9.4 MB STP STP_618015214622 (rev1).stp \| 5.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	TypeSmall Top Entry	VariantPlastic
618025214622	25, Small Top Entry, Plastic	Downloads3 files CAD files ZIP 3D 3D_618025214622 (rev1).pdf \| 134.7 KB IGS IGES_618025214622 (rev1).iges \| 9.4 MB STP STP_618025214622 (rev1).stp \| 5.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins25	TypeSmall Top Entry	VariantPlastic
