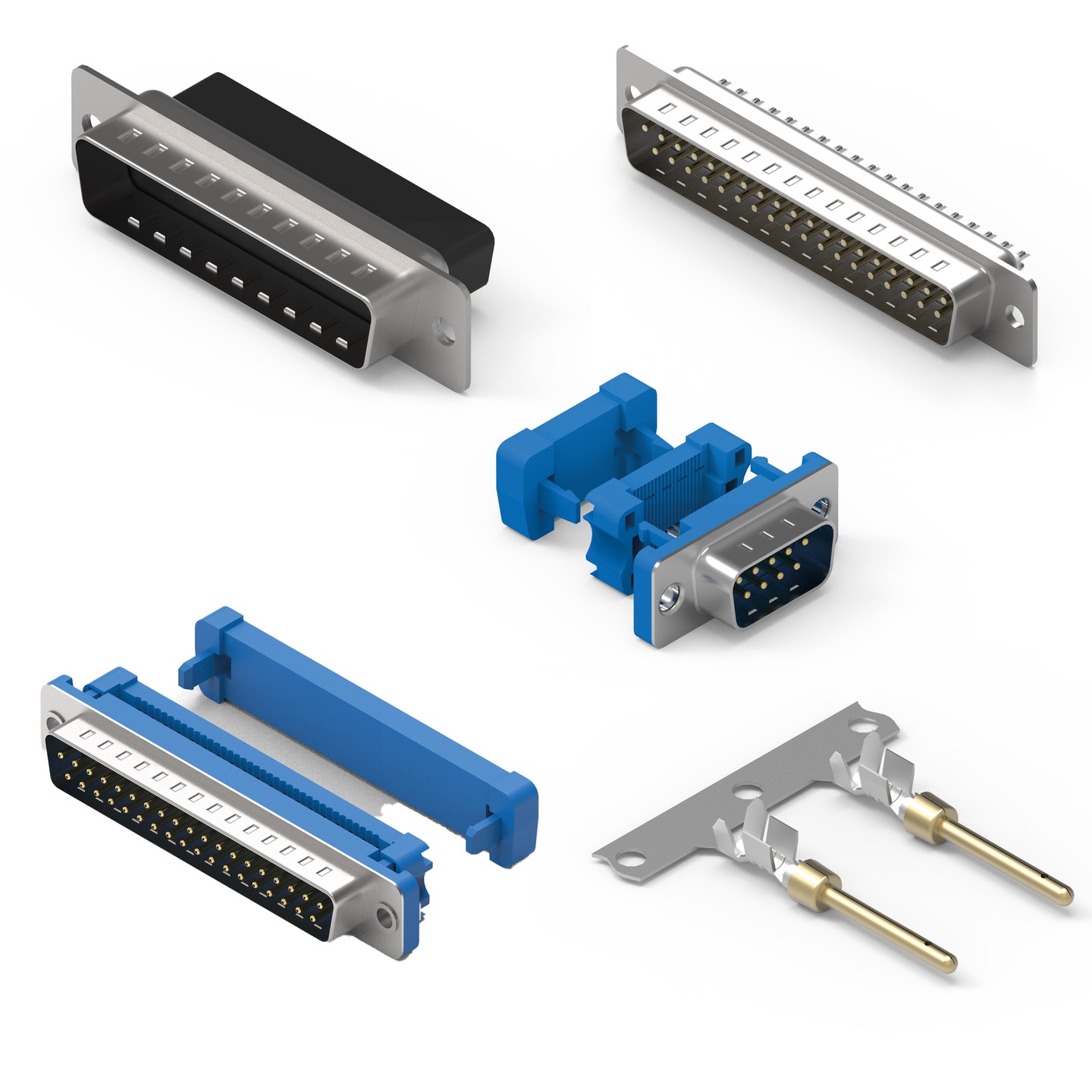

WR-DSUB Cable

Size	Dimensions
IDC
IDC with UNC nuts
Solder
Terminal Housing
Crimping Terminals

Characteristics

Characteristics
Operating Temperature: -25 °C up to +105 °C

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

All

IDC

IDC with UNC nuts

Solder

Terminal Housing

Crimping Terminals

Reset all

Filter article data

show article in 5 product lines

article in 5 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	Gender	Type	Variant	Working Voltage (V (AC))	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Design Kit	IDC Tool	Manual Crimping Tool
618009217122	9, Male, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618009217122 (rev1).pdf \| 624.7 KB IGS 618009217122 (rev1).iges \| 4.3 MB STP 618009217122 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Male	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618009217222	9, Female, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618009217222_1 (rev1).pdf \| 633.4 KB IGS 618009217222 (rev1).iges \| 3.7 MB STP 618009217222 (rev1).stp \| 967.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Female	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit 612690 614001	IDC Tool –	Manual Crimping Tool –
618009221823	9, Male, IDC	Downloads 4 files CAD files ZIP 3D 3D_618009221823 (rev1).pdf \| 442.7 KB IGS 618009221823 (rev1).igs \| 3 MB IGS IGES_618009221823 (rev1).iges \| 3.6 MB STP STP_618009221823 (rev1).stp \| 778.3 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Male	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit 612690 614001	IDC Tool 600618282806	Manual Crimping Tool –
618009221923	9, Female, IDC	Downloads 4 files CAD files ZIP 3D 3D_618009221923 (rev1).pdf \| 785.8 KB IGS 618009221923 (rev1).igs \| 3.4 MB IGS IGES_618009221923 (rev1).iges \| 6.8 MB STP STP_618009221923 (rev1).stp \| 1.6 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Female	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618009226221	9, Male, IDC	Downloads 3 files CAD files ZIP 3D 618009226221 (rev1).pdf \| 814.5 KB IGS 618009226221 (rev1).iges \| 6.1 MB STP 618009226221 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Male	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618009227221	9, Female, IDC	Downloads 3 files CAD files ZIP 3D 618009227221 (rev1).pdf \| 729.4 KB IGS 618009227221 (rev1).iges \| 6.8 MB STP 618009227221 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Female	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
61800924823	9, Male, Solder bucket	Downloads 3 files CAD files ZIP 3D 3D_61800924823 (rev1).pdf \| 354.5 KB IGS IGES_61800924823 (rev1).iges \| 2.6 MB STP STP_61800924823 (rev1).stp \| 503.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Male	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit 612690 614001	IDC Tool –	Manual Crimping Tool –
61800924923	9, Female, Solder bucket	Downloads 4 files CAD files ZIP 3D 3D_61800924923 (rev1).pdf \| 394.9 KB IGS 61800924923 (rev1).igs \| 2.4 MB IGS IGES_61800924923 (rev1).iges \| 1.6 MB STP STP_61800924923 (rev1).stp \| 392.4 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	Gender Female	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618015217122	15, Male, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618015217122 (rev1).pdf \| 758.3 KB IGS 618015217122 (rev1).iges \| 6.2 MB STP 618015217122 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Male	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618015217222	15, Female, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618015217222 (rev1).pdf \| 751.8 KB IGS 618015217222 (rev1).iges \| 5 MB STP 618015217222 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Female	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618015221823	15, Male, IDC	Downloads 4 files CAD files ZIP 3D 3D_618015221823 (rev1).pdf \| 555.6 KB IGS 618015221823 (rev1).igs \| 3.7 MB IGS IGES_618015221823 (rev1).iges \| 4.9 MB STP STP_618015221823 (rev1).stp \| 1 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Male	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618015221923	15, Female, IDC	Downloads 4 files CAD files ZIP 3D 3D_618015221923 (rev1).pdf \| 1 MB IGS 618015221923 (rev1).igs \| 4.1 MB IGS IGES_618015221923 (rev1).iges \| 9.9 MB STP STP_618015221923 (rev1).stp \| 2.4 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Female	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618015226221	15, Male, IDC	Downloads 3 files CAD files ZIP 3D 618015226221 (rev1).pdf \| 1.2 MB IGS 618015226221 (rev1).iges \| 9 MB STP 618015226221 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Male	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618015227221	15, Female, IDC	Downloads 3 files CAD files ZIP 3D 618015227221 (rev1).pdf \| 1014.9 KB IGS 618015227221 (rev1).iges \| 9.9 MB STP 618015227221 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Female	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
61801524823	15, Male, Solder bucket	Downloads 3 files CAD files ZIP 3D 3D_61801524823 (rev1).pdf \| 419.4 KB IGS IGES_61801524823 (rev1).iges \| 3.3 MB STP STP_61801524823 (rev1).stp \| 703.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Male	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
61801524923	15, Female, Solder bucket	Downloads 4 files CAD files ZIP 3D 3D_61801524923 (rev1).pdf \| 436.6 KB IGS 61801524923 (rev1).igs \| 3.1 MB IGS IGES_61801524923 (rev1).iges \| 1.7 MB STP STP_61801524923 (rev1).stp \| 405.5 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	Gender Female	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618025217122	25, Male, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618025217122 (rev1).pdf \| 1009.4 KB IGS 618025217122 (rev1).iges \| 9.2 MB STP 618025217122 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Male	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618025217222	25, Female, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618025217222 (rev1).pdf \| 1019.6 KB IGS 618025217222 (rev1).iges \| 7.1 MB STP 618025217222 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Female	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618025221823	25, Male, IDC	Downloads 4 files CAD files ZIP 3D 3D_618025221823 (rev1).pdf \| 754.5 KB IGS 618025221823 (rev1).igs \| 4.6 MB IGS IGES_618025221823 (rev1).iges \| 7 MB STP STP_618025221823 (rev1).stp \| 1.5 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Male	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618025221923	25, Female, IDC	Downloads 4 files CAD files ZIP 3D 3D_618025221923 (rev1).pdf \| 1.5 MB IGS 618025221923 (rev1).igs \| 5.3 MB IGS IGES_618025221923 (rev1).iges \| 15.2 MB STP STP_618025221923 (rev1).stp \| 3.8 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Female	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618025226221	25, Male, IDC	Downloads 3 files CAD files ZIP 3D 618025226221 (rev1).pdf \| 1.8 MB IGS 618025226221 (rev1).iges \| 13.8 MB STP 618025226221 (rev1).stp \| 3.4 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Male	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618025227221	25, Female, IDC	Downloads 3 files CAD files ZIP 3D 618025227221 (rev1).pdf \| 1.5 MB IGS 618025227221 (rev1).iges \| 15.2 MB STP 618025227221 (rev1).stp \| 3.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Female	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
61802524823	25, Male, Solder bucket	Downloads 3 files CAD files ZIP 3D 3D_61802524823 (rev1).pdf \| 517.9 KB IGS IGES_61802524823 (rev1).iges \| 4.3 MB STP STP_61802524823 (rev1).stp \| 979.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Male	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
61802524923	25, Female, Solder bucket	Downloads 4 files CAD files ZIP 3D 3D_61802524923 (rev1).pdf \| 527 KB IGS 61802524923 (rev1).igs \| 4.2 MB IGS IGES_61802524923 (rev1).iges \| 2 MB STP STP_61802524923 (rev1).stp \| 434.9 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 25	Gender Female	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618037217122	37, Male, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618037217122 (rev1).pdf \| 1.4 MB IGS 618037217122 (rev1).iges \| 12.8 MB STP 618037217122 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Male	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618037217222	37, Female, Crimp Housing	Downloads 3 files CAD files ZIP 3D 618037217222 (rev1).pdf \| 1.4 MB IGS 618037217222 (rev1).iges \| 9.7 MB STP 618037217222 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Female	Type Crimp Housing	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
618037221823	37, Male, IDC	Downloads 4 files CAD files ZIP 3D 3D_618037221823 (rev1).pdf \| 1008.3 KB IGS 618037221823 (rev1).igs \| 5.8 MB IGS IGES_618037221823 (rev1).iges \| 9.7 MB STP STP_618037221823 (rev1).stp \| 2.1 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Male	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618037221923	37, Female, IDC	Downloads 4 files CAD files ZIP 3D 3D_618037221923 (rev1).pdf \| 2.1 MB IGS 618037221923 (rev1).igs \| 6.7 MB IGS IGES_618037221923 (rev1).iges \| 21.5 MB STP STP_618037221923 (rev1).stp \| 5.5 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Female	Type IDC	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618037226221	37, Male, IDC	Downloads 3 files CAD files ZIP 3D 618037226221 (rev1).pdf \| 2.6 MB IGS 618037226221 (rev1).iges \| 19.4 MB STP 618037226221 (rev1).stp \| 4.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Male	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
618037227221	37, Female, IDC	Downloads 3 files CAD files ZIP 3D 618037227221 (rev1).pdf \| 2.1 MB IGS 618037227221 (rev1).iges \| 21.5 MB STP 618037227221 (rev1).stp \| 5.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Female	Type IDC	Variant with Nut	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool 600618282806	Manual Crimping Tool –
61803724823	37, Male, Solder bucket	Downloads 3 files CAD files ZIP 3D 3D_61803724823 (rev1).pdf \| 677.4 KB IGS IGES_61803724823 (rev1).iges \| 5.6 MB STP STP_61803724823 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Male	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
61803724923	37, Female, Solder bucket	Downloads 4 files CAD files ZIP 3D 3D_61803724923 (rev1).pdf \| 693.6 KB IGS 61803724923 (rev1).igs \| 5.6 MB IGS IGES_61803724923 (rev1).iges \| 2.3 MB STP STP_61803724923 (rev1).stp \| 476.5 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 37	Gender Female	Type Solder bucket	–	Working Voltage 125 V (AC)	–	–	Packaging Tray	–	Design Kit –	IDC Tool –	Manual Crimping Tool –
61800213722	–, Female, Terminal/Contact	Downloads 4 files EDA models: Components ZIP ALT 61800213722 (rev1).IntLib \| 22.4 MB CAD files ZIP 3D 618x0213722_1 (rev1).pdf \| 279.8 KB IGS 618x0213722 (rev1).iges \| 2.5 MB STP 618x0213722 (rev1).stp \| 982.5 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 22 to 20 (AWG)	Stranded Wire Section (Metric) 0.326 to 0.518 (mm²)	Packaging Big Reel	Packaging Unit 5000 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180001
61800413722	–, Male, Terminal/Contact	Downloads 6 files CAD files ZIP 3D 61800413722_1 (rev1).pdf \| 258.6 KB 3D 618x0413722_1 (rev1).pdf \| 371 KB IGS 61800413722 (rev1).igs \| 1.5 MB IGS 618x0413722 (rev1).iges \| 2.7 MB STP 61800413722 (rev1).stp \| 529.4 KB STP 618x0413722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 20 to 22 (AWG)	Stranded Wire Section (Metric) 0.518 to 0.326 (mm²)	Packaging Big Reel	Packaging Unit 5000 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002
61800513722	–, Male, Terminal/Contact	Downloads 6 files CAD files ZIP 3D 61800513722_1 (rev1).pdf \| 257.5 KB 3D 618x0513722_1 (rev1).pdf \| 371 KB IGS 61800513722 (rev1).igs \| 1.5 MB IGS 618x0513722 (rev1).iges \| 2.7 MB STP 61800513722 (rev1).stp \| 534.2 KB STP 618x0513722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 26 to 24 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Big Reel	Packaging Unit 5000 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002
61800313722	–, Female, Terminal/Contact	Downloads 3 files CAD files ZIP 3D 618x0313722_1 (rev1).pdf \| 279.8 KB IGS 618x0313722 (rev1).iges \| 2.5 MB STP 618x0313722 (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 24 to 26 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Big Reel	Packaging Unit 5000 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180001
61800213722DEC	–, Female, Terminal/Contact	Downloads 3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 160.2 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 426.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 22 to 20 (AWG)	Stranded Wire Section (Metric) 0.326 to 0.518 (mm²)	Packaging Bag	Packaging Unit 100 pcs	Design Kit 612690	IDC Tool –	Manual Crimping Tool 600180180001
61800313722DEC	–, Female, Terminal/Contact	Downloads 3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 161.5 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 426.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 26 to 24 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Bag	Packaging Unit 100 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180001
61810213722	–, Female, Terminal/Contact	Downloads 3 files CAD files ZIP 3D 618x0213722_3D (rev1).pdf \| 279.8 KB IGS 618x0213722 (rev1).iges \| 2.5 MB STP 618x0213722 (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 22 to 20 (AWG)	Stranded Wire Section (Metric) 0.326 to 0.518 (mm²)	Packaging Small Reel	Packaging Unit 500 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180001
61810313722	–, Female, Terminal/Contact	Downloads 3 files CAD files ZIP 3D 618x0313722_3D (rev1).pdf \| 279.8 KB IGS 618x0313722 (rev1).iges \| 2.5 MB STP 618x0313722 (rev1).stp \| 982.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Female	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 26 to 24 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Small Reel	Packaging Unit 500 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180001
61800413722DEC	–, Male, Terminal/Contact	Downloads 3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 22 to 20 (AWG)	Stranded Wire Section (Metric) 0.518 to 0.326 (mm²)	Packaging Bag	Packaging Unit 100 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002
61800513722DEC	–, Male, Terminal/Contact	Downloads 3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 26 to 24 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Bag	Packaging Unit 100 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002
61810413722	–, Male, Terminal/Contact	Downloads 3 files CAD files ZIP 3D 618x0413722_3D (rev1).pdf \| 371 KB IGS 618x0413722 (rev1).iges \| 2.7 MB STP 618x0413722 (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 22-20	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 22 to 20 (AWG)	Stranded Wire Section (Metric) 0.518 to 0.326 (mm²)	Packaging Small Reel	Packaging Unit 500 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002
61810513722	–, Male, Terminal/Contact	Downloads 3 files CAD files ZIP 3D 618x0513722_3D (rev1).pdf \| 371 KB IGS 618x0513722 (rev1).iges \| 2.7 MB STP 618x0513722 (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	–	Gender Male	Type Terminal/Contact	Variant AWG 26-24	Working Voltage 250 V (AC)	Stranded Wire Section (AWG) 26 to 24 (AWG)	Stranded Wire Section (Metric) 0.129 to 0.205 (mm²)	Packaging Small Reel	Packaging Unit 500 pcs	Design Kit –	IDC Tool –	Manual Crimping Tool 600180180002

Wave Soldering Profile

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now
