WS-DISV Small Compact SMT Flat Actuator with Top Tape 2.54 mm | Electromechanical Components | Würth Elektronik Product Catalog

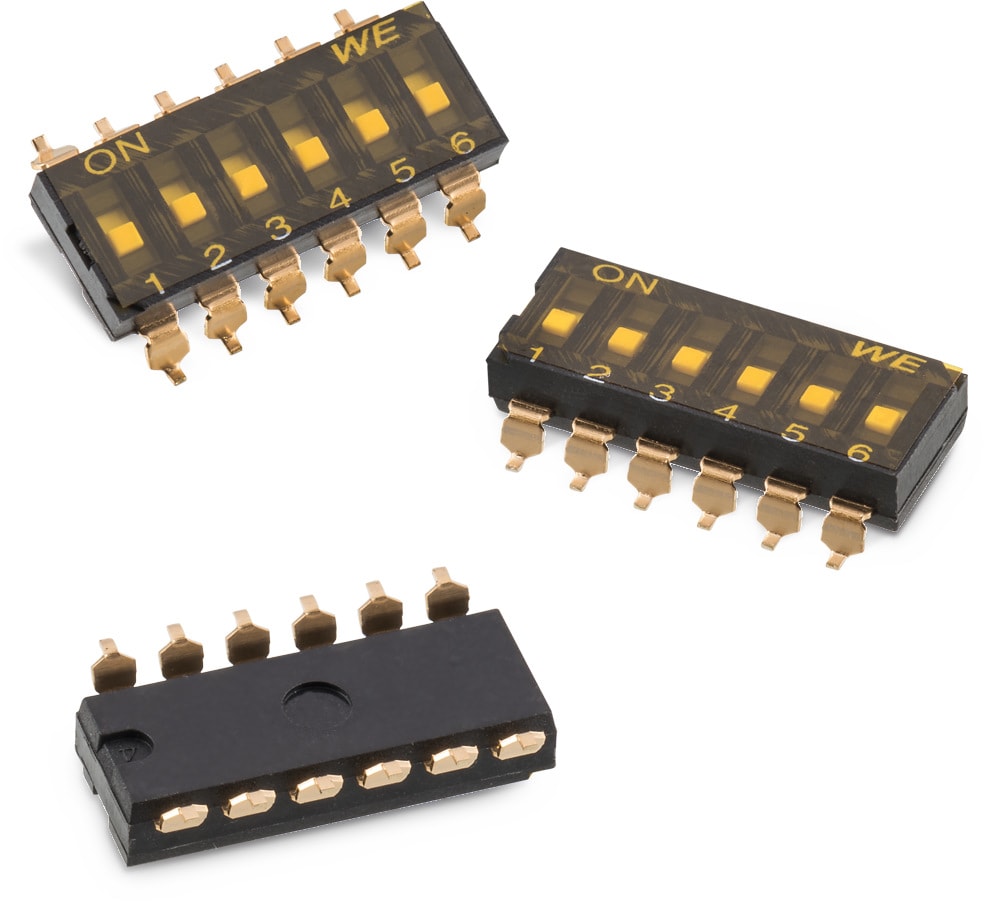

WS-DISV Small Compact SMT Flat Actuator with Top Tape 2.54 mm

Material Properties
Cover Material	PA9T
Cover Flammability Rating	UL94 V-0
Base Material	PA9T
Base Flammability Rating	UL94 V-0
Actuator Material	PA46
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	600 g
Electrical Life	2000 Cycles
Actuator Type	Flat Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes

Packaging Properties
Packaging	Tape and Reel

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

Order Code	Datasheet	Downloads	Status	Poles	L(mm)	Vaporphase process	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
418121160801	SPEC1, 3.48 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160801 (rev1).pdf \| 116.1 KB IGS 418121160801 (rev1).igs \| 1.3 MB STP 418121160801 (rev1).stp \| 520.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles1	Length3.48 mm	Vaporphase processYes	Design Kit –	–Check availability
418121160802	SPEC2, 6.02 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160802 (rev1).pdf \| 133.9 KB IGS Download_IGES_418121160802 (rev1).iges \| 684.9 KB STP 418121160802 (rev1).stp \| 634.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles2	Length6.02 mm	Vaporphase processYes	Design Kit 499001	–Check availability
418121160803	SPEC3, 8.56 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160803 (rev1).pdf \| 164.5 KB IGS Download_IGES_418121160803 (rev1).iges \| 1.9 MB STP 418121160803 (rev1).stp \| 487.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles3	Length8.56 mm	Vaporphase processYes	Design Kit –	–Check availability
418121160804	SPEC4, 11.1 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160804 (rev1).pdf \| 186.7 KB IGS Download_IGES_418121160804 (rev1).iges \| 1001.7 KB STP 418121160804 (rev1).stp \| 949 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles4	Length11.1 mm	Vaporphase processYes	Design Kit 499001	–Check availability
418121160805	SPEC5, 13.64 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160805 (rev1).pdf \| 208.1 KB IGS Download_IGES_418121160805 (rev1).iges \| 1.1 MB STP 418121160805 (rev1).stp \| 1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles5	Length13.64 mm	Vaporphase processYes	Design Kit –	–Check availability
418121160806	SPEC6, 16.18 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160806 (rev1).pdf \| 235 KB IGS Download_IGES_418121160806 (rev1).iges \| 1.2 MB STP 418121160806 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles6	Length16.18 mm	Vaporphase processYes	Design Kit 499001	–Check availability
418121160807	SPEC7, 18.72 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160807 (rev1).pdf \| 253.5 KB IGS Download_IGES_418121160807 (rev1).iges \| 1.3 MB STP 418121160807 (rev1).stp \| 1.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles7	Length18.72 mm	Vaporphase processYes	Design Kit –	–Check availability
418121160808	SPEC8, 21.26 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160808 (rev1).pdf \| 281.2 KB IGS Download_IGES_418121160808 (rev1).iges \| 1.4 MB STP 418121160808 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles8	Length21.26 mm	Vaporphase processYes	Design Kit 499001	–Check availability
418121160810	SPEC10, 26.34 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160810 (rev1).pdf \| 330.7 KB IGS Download_IGES_418121160810 (rev1).iges \| 1.7 MB STP 418121160810 (rev1).stp \| 1.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles10	Length26.34 mm	Vaporphase processYes	Design Kit 499001	–Check availability
418121160812	SPEC12, 31.42 mm, Yes	Availability –	Downloads7 files ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26b).zip \| 9.4 MB 3D 3D_418121160812 (rev1).pdf \| 380.6 KB IGS Download_IGES_418121160812 (rev1).iges \| 2 MB STP 418121160812 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Poles12	Length31.42 mm	Vaporphase processYes	Design Kit –	–Check availability
