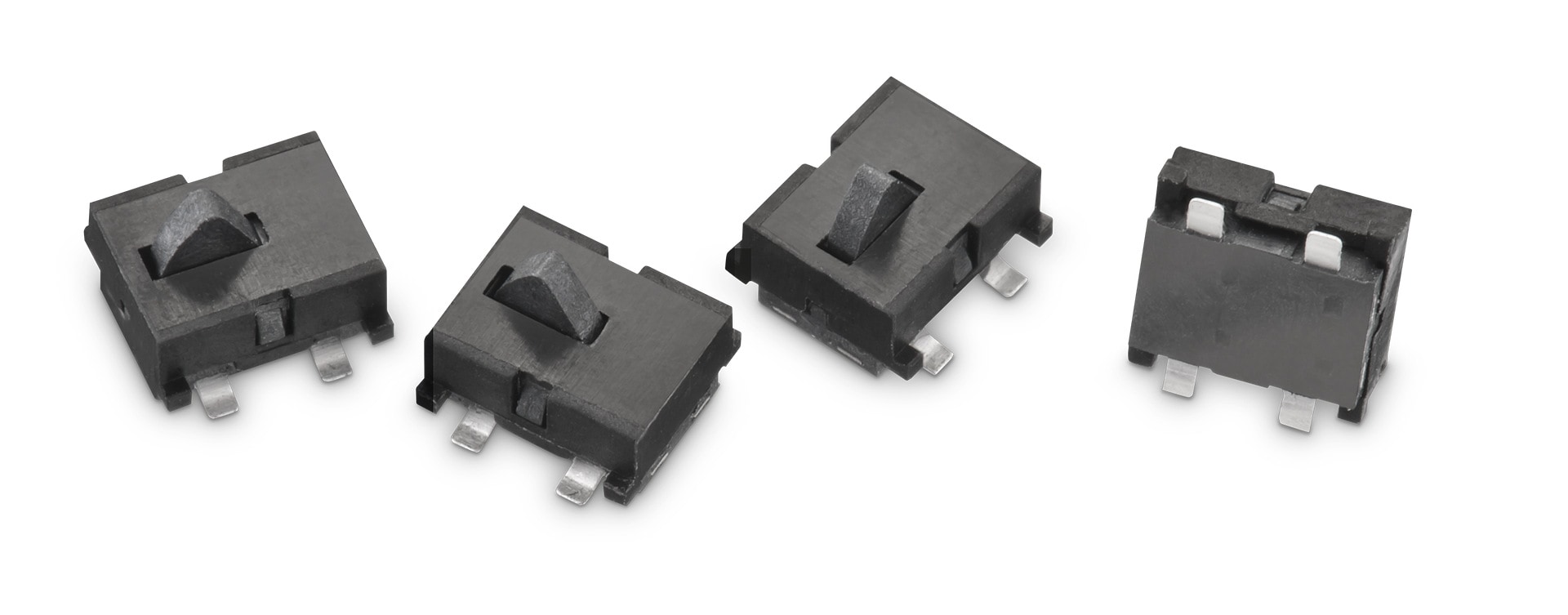

WS-DESV SMT Detector Switch 4.7x3.8 mm

WS-DESV SMT Detector Switch 4.7x3.8 mm
Material Properties
Actuator MaterialLCP
Actuator Flammability RatingUL94 V-0
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Contact MaterialStainless Steel
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
Contact Resistance Initial500 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Electrical Life100000 Cycles
SchematicSPST-NO
General Information
Operating Temperature-40 °C up to +85 °C
Packaging Properties
PackagingTape and Reel

Application Notes

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Operation Force(g)
Schematic
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WS-DESV SMT Detector Switch 4.7x3.8 mm
461011220101
SPEC60 g, SPST-NO
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Operation Force60 g
SchematicSPST-NO
Design Kit
499001
–Check availability
