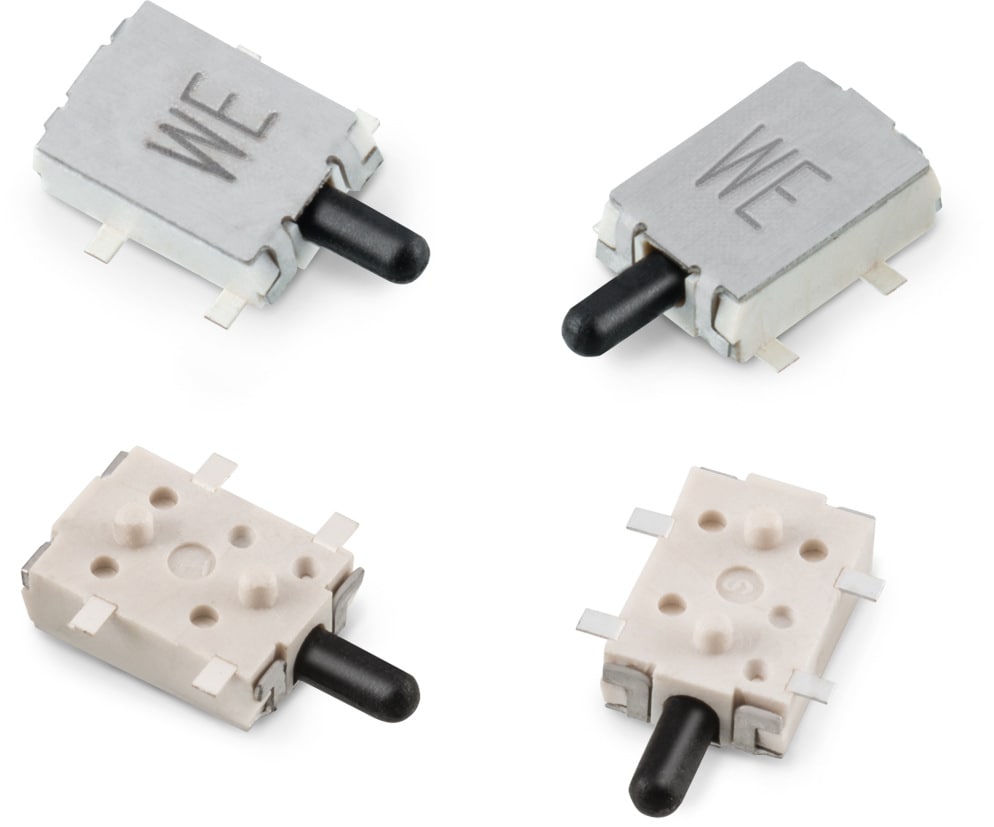

WS-DESU SMT Detector Switch Side Push 5.7 x 4.0 mm

Material Properties
Actuator Material	PA46
Actuator Flammability Rating	UL94 HB
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	100 mA
V_R	12 V (DC)
Contact Resistance Initial	500 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	100000 Cycles
Schematic	SPST-NC; SPST-NO

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Operation Force (Value) (g)	Schematic	Design Kit	Samples
	461011442105	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DESU (rev22a).IntLib \| 93 KB CDS Cadence_WS-DESU (rev18a).zip \| 1.3 MB EAG Eagle_WS-DESU (rev20a).lbr \| 20.5 KB CAD files ZIP 3D 3D_461011442105 (rev1).pdf \| 580.6 KB IGS Download_IGS_461011442105 (rev1).igs \| 1.5 MB STP Download_STP_461011442105 (rev1).stp \| 753.6 KB Download all 6 files as zip archive ZIP	100	SPST-NO	499001
	461031442105	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DESU (rev22a).IntLib \| 93 KB CDS Cadence_WS-DESU (rev18a).zip \| 1.3 MB EAG Eagle_WS-DESU (rev20a).lbr \| 20.5 KB CAD files ZIP 3D 3D_461031442105 (rev1).pdf \| 580.6 KB IGS Download_IGS_461031442105 (rev1).igs \| 1.5 MB STP Download_STP_461031442105 (rev1).stp \| 753.6 KB Download all 6 files as zip archive ZIP	100	SPST-NC	499001

	Order Code	Datasheet
	461011442105	SPEC
	461031442105	SPEC

Samples

	Order Code	Datasheet	Downloads	Operation Force (Value) (g)	Schematic	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
