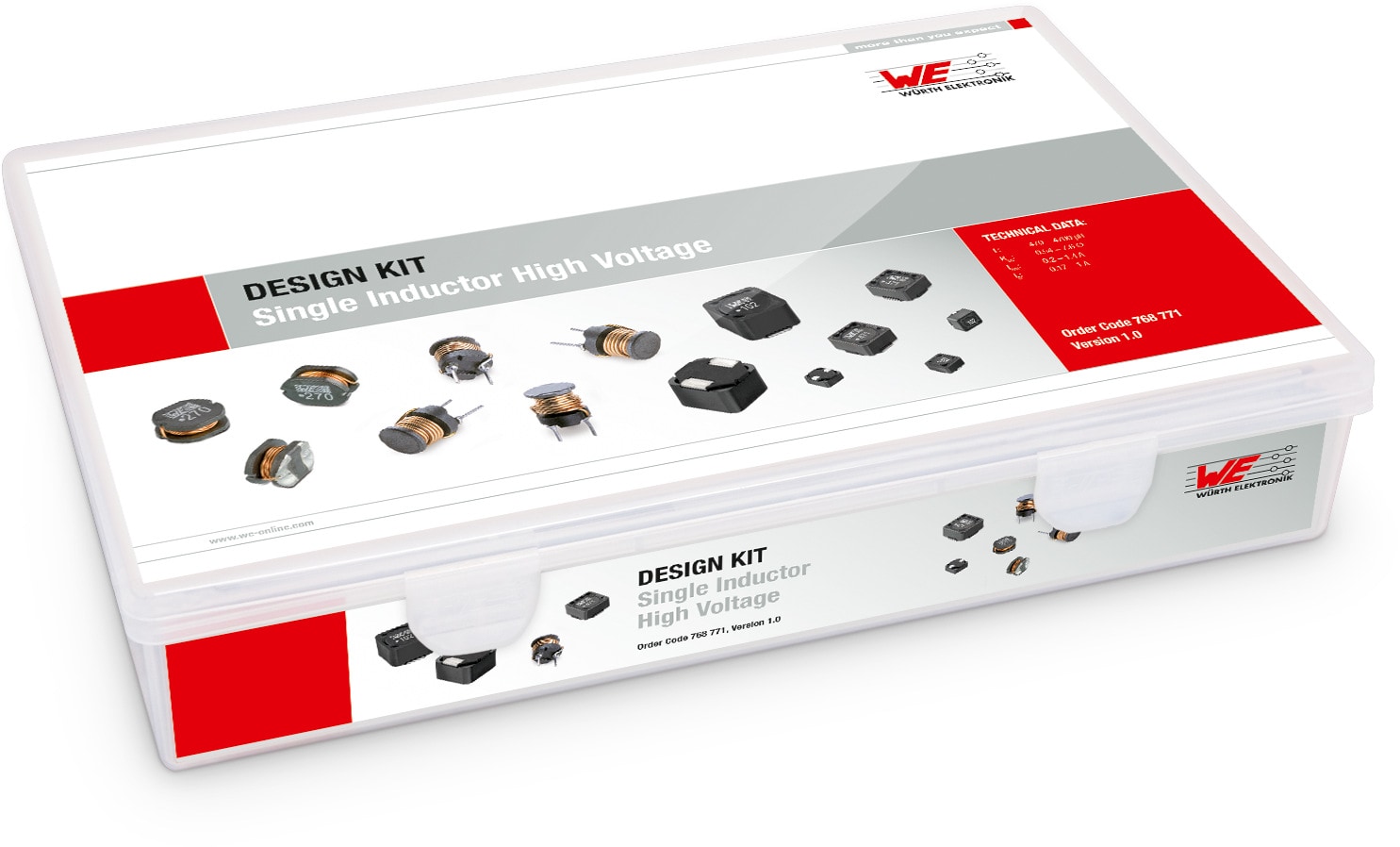

Design Kit Single Inductor High Voltage WE-PD HV, WE-PD2 HV, WE-TI HV

Order Code 768771

Characteristics

  • Contains 3 product series and 31 articles

Products

Order Code Data­sheet Simu­lation Downloads Product seriesL
(µH)
IR
(A)
ISAT
(A)
RDC
(mΩ)
RDC max.
(mΩ)
fres
(MHz)
Size Samples
7687714471SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 470 0.6 0.8 1250 1450 2.7 1060
7687709471SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 470 0.97 1.4 680 800 1.9 1210
7687779471SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 470 0.35 0.37 2700 3200 3 7345
7687789471SPEC
6 files 470 0.25 0.35 2900 3500 4.9 7332
768772471SPEC
8 files WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 470 0.6 0.9 1140 1320 2.5 8095
7687480471SPEC
WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 470 1 1.3 440 540 1.7 1014
7687714681SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 680 0.55 0.61 1900 2250 2 1060
7687709681SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 680 0.8 1.2 950 1150 1.5 1210
7687779681SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 680 0.3 0.3 3400 4000 2.8 7345
768775268SPEC
8 files WE-PD2 HV SMT Power Inductor (High Voltage) 680 0.38 0.38 2040 2400 2.7 7850
768774268SPEC
4 files 680 0.2 0.3 4000 4800 3 5848
768772681SPEC
8 files WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 680 0.52 0.76 1400 1680 2.15 8095
7687789681SPEC
6 files 680 0.22 0.26 4700 5200 3.5 7332
7687714102SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 1000 0.4 0.55 2700 3200 1.7 1060
7687709102SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 1000 0.72 0.9 1200 1400 1.2 1210
7687779102SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 1000 0.24 0.25 5100 6000 2.3 7345
76877530SPEC
8 files WE-PD2 HV SMT Power Inductor (High Voltage) 1000 0.3 0.3 2780 3300 2.4 7850
76877630SPEC
8 files WE-PD2 HV SMT Power Inductor (High Voltage) 1000 0.38 0.38 2200 2600 1.9 1054
768772102SPEC
8 files WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 1000 0.5 0.55 1750 2080 1.8 8095
7687480102SPEC
WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 1000 0.8 0.8 1000 1200 1.1 1014
7687789102SPEC
6 files 1000 0.17 0.2 7600 9000 2.5 7332
7687714152SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 1500 0.32 0.46 3800 4600 1.4 1060
7687709152SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 1500 0.52 0.8 1900 2200 0.9 1210
768772182SPEC
8 files WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 1800 0.35 0.38 3000 3300 1.4 8095
7687714222SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 2200 0.26 0.37 5500 6500 1.2 1060
7687709222SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 2200 0.43 0.65 3100 3700 0.8 1210
768776322SPEC
8 files WE-PD2 HV SMT Power Inductor (High Voltage) 2200 0.18 0.26 4400 5300 1.3 1054
768772222SPEC
8 files WE-TI HV Radial Leaded Wire Wound Inductor (High Voltage) 2200 0.32 0.32 3900 4730 1.2 8095
7687709332SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 3300 0.37 0.52 4400 5200 0.6 1210
7687709472SPEC
8 files WE-PD HV SMT Power Inductor (High Voltage) 4700 0.3 0.48 6500 7800 0.5 1210
