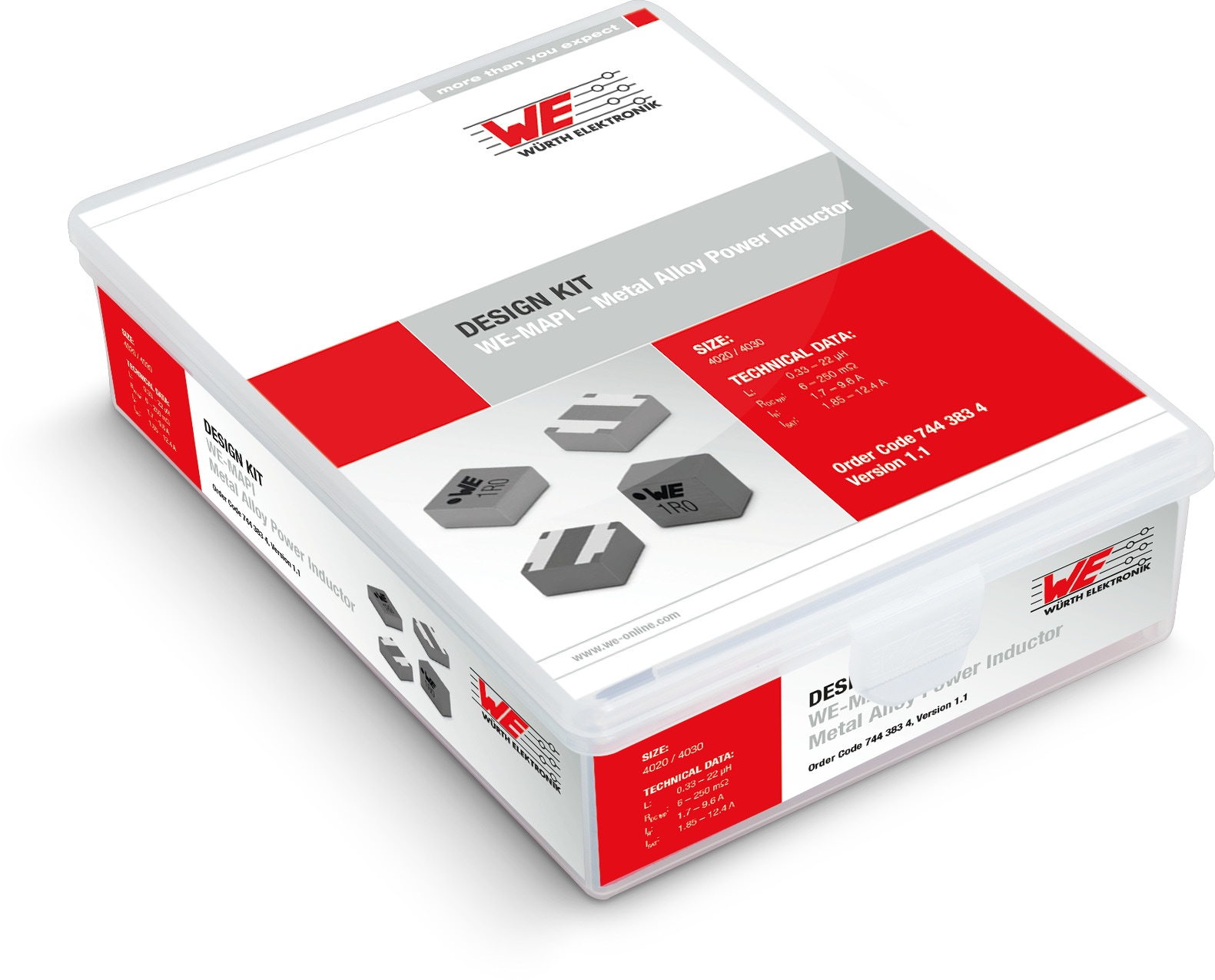

Design Kit WE-MAPI Metal Alloy Power Inductor 4020/4030
Order Code 7443834
Applications
- DC/DC-converter for high current power supplies
- DC/DC-converter for Field Programmable Gate Array (FPGA)
- POL-converters
- Portable power like PDA, digital camera
- Mainboards/graphic cards
- Battery powered devices
- Wireless communication devices
- Power supplies for smartphones, tablet PCs and other mobile devices
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | Product series | L(µH) | IR(A) | ISAT(A) | Size | Samples |
|---|---|---|---|---|---|---|---|---|---|---|
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance0.33 µH | Rated Current9.6 A | Saturation Current12.4 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance0.56 µH | Rated Current8.5 A | Saturation Current10.8 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance0.68 µH | Rated Current8.2 A | Saturation Current9.4 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1 µH | Rated Current7.2 A | Saturation Current9 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1 µH | Rated Current7.4 A | Saturation Current9.6 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.2 µH | Rated Current5.8 A | Saturation Current9 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.2 µH | Rated Current7 A | Saturation Current8.8 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.5 µH | Rated Current5.8 A | Saturation Current7.8 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.5 µH | Rated Current6.2 A | Saturation Current8.5 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.8 µH | Rated Current4.6 A | Saturation Current6.5 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance1.8 µH | Rated Current5.8 A | Saturation Current8 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance2.2 µH | Rated Current4.7 A | Saturation Current6.2 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance2.2 µH | Rated Current5.2 A | Saturation Current7 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance3.3 µH | Rated Current3.6 A | Saturation Current5.5 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance3.3 µH | Rated Current5 A | Saturation Current5 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance4.7 µH | Rated Current2.9 A | Saturation Current4.7 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance4.7 µH | Rated Current3.9 A | Saturation Current6.4 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance5.6 µH | Rated Current2.8 A | Saturation Current4.6 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance5.6 µH | Rated Current3.6 A | Saturation Current6 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance6.8 µH | Rated Current3 A | Saturation Current5.5 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance8.2 µH | Rated Current2.8 A | Saturation Current5.2 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance10 µH | Rated Current2.7 A | Saturation Current4.6 A | Size4030 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance15 µH | Rated Current1.9 A | Saturation Current2.1 A | Size4020 | ||||
| SPEC | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MAPI SMT Power Inductor | Inductance22 µH | Rated Current1.7 A | Saturation Current1.85 A | Size4020 |
