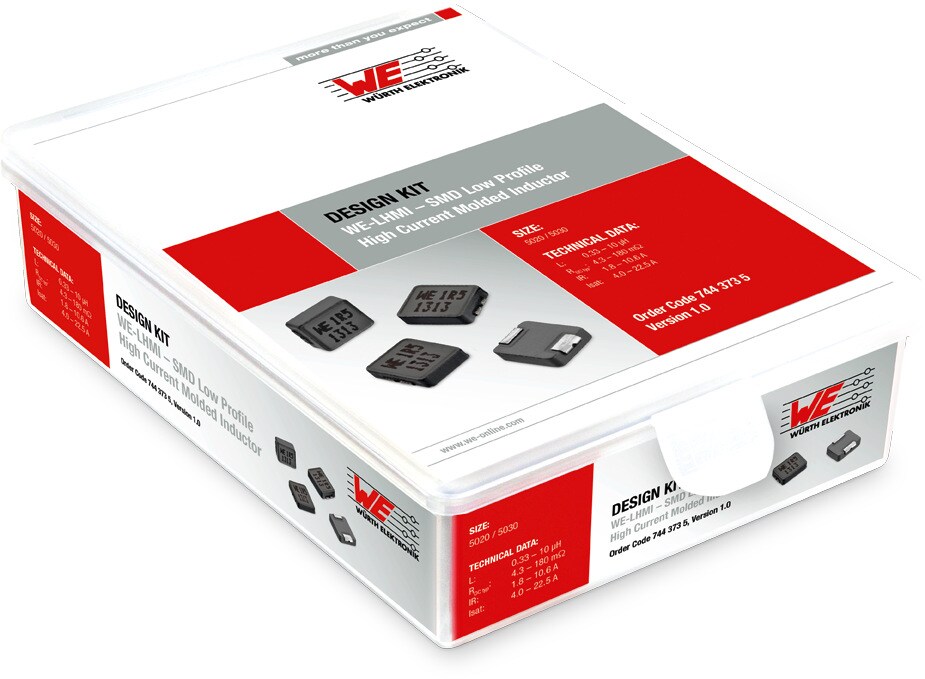

Design Kit WE-LHMI SMT Power Inductor - 5020/5030

Order Code 7443735

Products

Order Code SPEC Simu­lation Downloads Product series L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Size Version Samples
744373340033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.33 9 22 6.3 7.3 100 5020 SMT
744373360033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.33 10.6 22.5 4.3 5 120 5030 SMT
744373340047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.47 7.5 15 7.3 8.6 95 5020 SMT
744373360047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.47 9.2 16.5 6.4 7.4 100 5030 SMT
744373340068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.68 6.8 14.5 11 12.4 90 5020 SMT
744373360068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.68 8 15 10 12 90 5030 SMT
74437334010
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1 5.3 13.9 17.5 20 65 5020 SMT
74437336010
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1 7.3 11.2 13 14 60 5030 SMT
74437334012
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1.2 5.2 11.3 23 28 60 5020 SMT
74437336012
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1.2 6.5 11.1 14 16 50 5030 SMT
74437334015
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1.5 5.1 10 26.5 30.5 50 5020 SMT
74437336015
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1.5 5.6 11 16 25 45 5030 SMT
74437334022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 2.2 3.5 9.4 42 50 46 5020 SMT
74437336022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 2.2 4.9 10.8 25 35 42 5030 SMT
74437334033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 3.3 2.9 7.7 66 76 35 5020 SMT
74437336033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 3.3 4.1 8.4 32 38 27 5030 SMT
74437334047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 4.7 2.5 6 103 116 27 5020 SMT
74437336047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 4.7 3.9 5.9 50 53 25 5030 SMT
74437334056
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 5.6 2.1 5.5 112 122 21 5020 SMT
74437336056
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 5.6 3.3 5.7 55 63 22 5030 SMT
74437334068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 6.8 2 4.6 130 150 20.5 5020 SMT
74437336068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 6.8 2.6 4.5 68 76.2 20 5030 SMT
74437334082
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 8.2 1.9 4.5 148 171 20 5020 SMT
74437334100
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 10 1.8 4 180 199 16 5020 SMT
74437336100
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 10 2.4 4.2 110 128 16 5030 SMT
