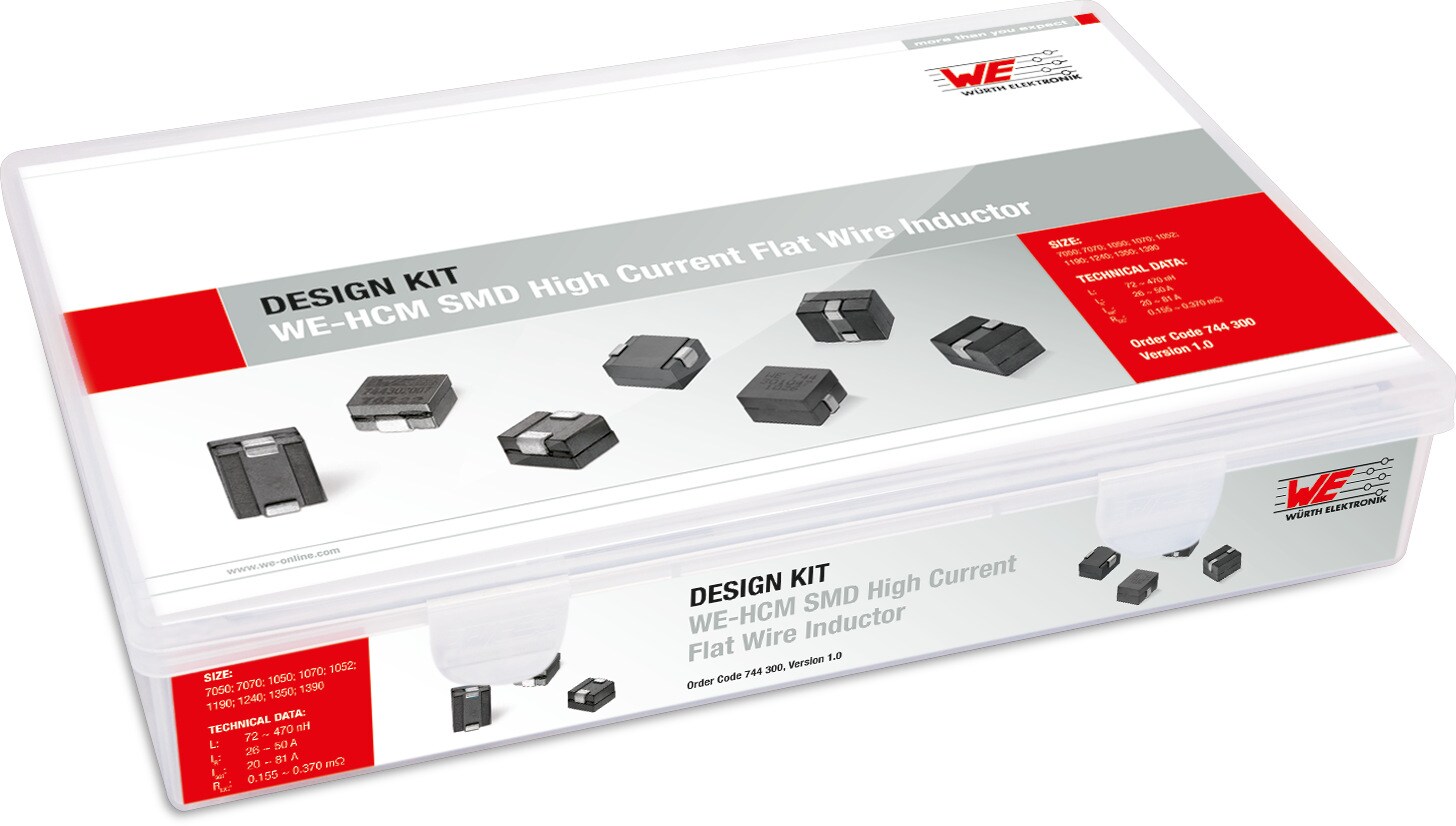

Design Kit WE-HCM SMT High Current Flat Wire Inductor

Order Code 744300

Products

Order Code Data­sheet Simu­lation Downloads Product series L
(nH)
LR
(nH)
IR
(A)
ISAT
(A)
RDC
(mΩ)
fres
(MHz)
Material Size Samples
744302007
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 72 71 30 60 0.235 150 MnZn 7050
744304010
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 100 100 24 52 0.17 105 MnZn 1240
744302010
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 105 104 30 45 0.235 70 MnZn 7050
744307012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 120 118 26 48 0.29 66 MnZn 7070
744303012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 120 118 31 55 0.325 150 MnZn 1050
744309012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 120 120 47.5 125 0.165 65 MnZn 1390
744302015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 150 125 30 32 0.235 55 MnZn 7050
744308015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 150 150 25 58 0.37 60 MnZn 1070
744303015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 155 150 31 42 0.325 110 MnZn 1050
744307016
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 160 155 26 41 0.29 50 MnZn 7070
744304016
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 160 155 24 32 0.17 80 MnZn 1240
744308020
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 200 198 25 48 0.37 45 MnZn 1070
744306020
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 200 195 25 36 0.26 51 MnZn 1052
744307022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 220 174 26 29 0.29 38 MnZn 7070
744303022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 220 180 31 30 0.325 80 MnZn 1050
744304022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 220 160 24 23 0.17 70 MnZn 1240
744305022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 220 215 26 42 0.155 36 MnZn 1350
744308025
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 250 246 25 44 0.37 40 MnZn 1070
744306025
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 250 240 25 32 0.26 38 MnZn 1052
744301025
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 250 250 38 65 0.32 250 MnZn 1190
744309025
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 250 245 47.5 81 0.165 37 MnZn 1390
744306030
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 300 220 25 24 0.26 31 MnZn 1052
744308033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 330 305 25 30 0.37 35 MnZn 1070
744301033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 330 325 38 46 0.32 115 MnZn 1190
744305033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 330 270 26 26 0.155 22 MnZn 1350
744309033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 330 310 47.5 62.5 0.165 28 MnZn 1390
744308040
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 400 345 25 26 0.37 25 MnZn 1070
744305040
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 400 100 26 20 0.155 20 MnZn 1350
744301047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 470 240 38 35 0.32 110 MnZn 1190
744309047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-HCM SMT High Current Flat Wire Inductor 470 200 47.5 40.5 0.165 22 MnZn 1390
