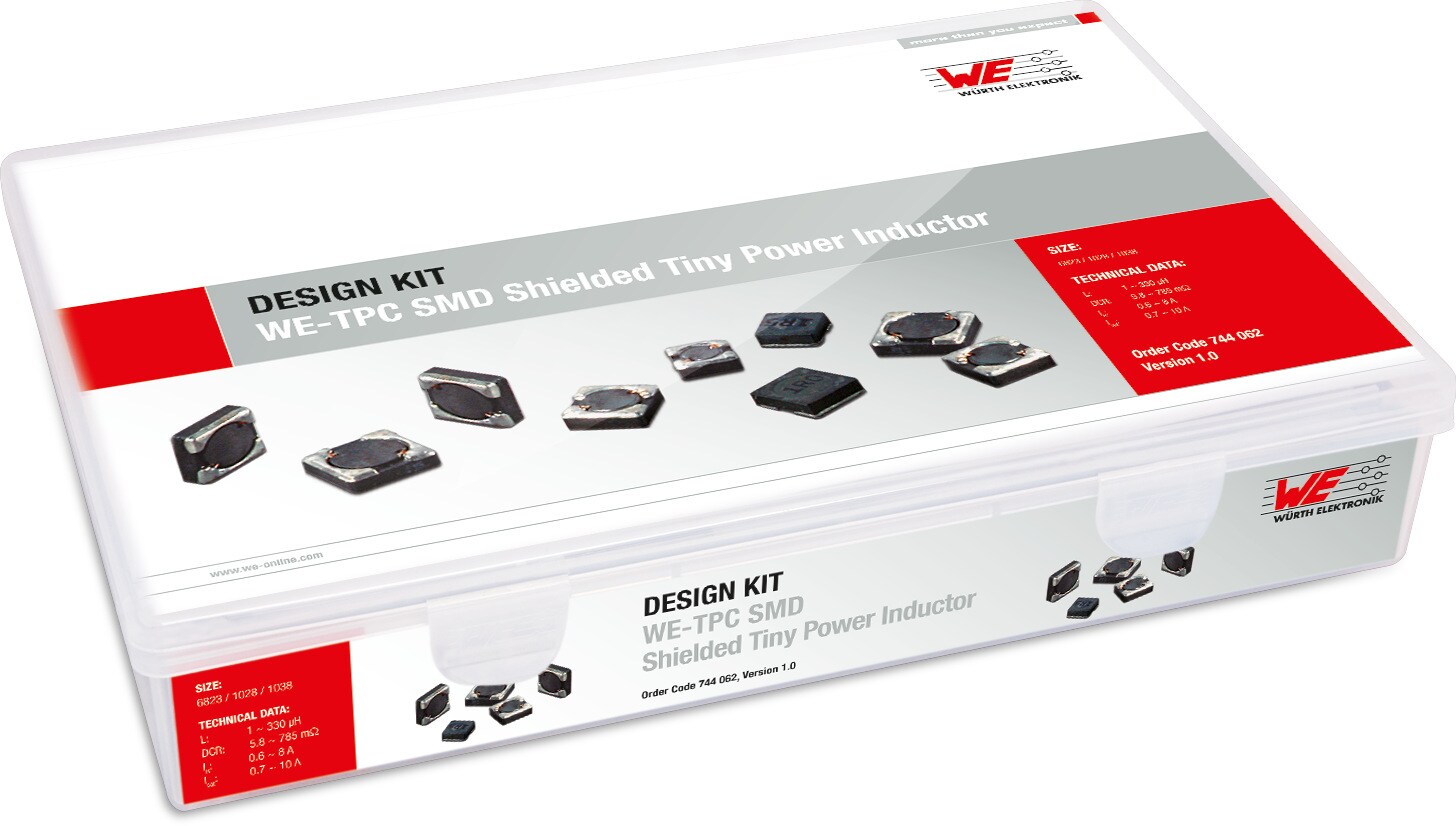

Design Kit WE-TPC SMT-Tiny Power Inductors - Large Size

Order Code 744062

Products

Order Code SPEC Simu­lation Downloads Product series L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Size Version Samples
744062001
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 1 4.8 4.6 10 14 110 6823
744065001
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 1 8 9.5 4.9 6.5 100 1028 SMT
7440620015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 1.5 4.3 4 10 18 100 6823 SMT
7440650015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 1.5 7.2 7.5 7.3 10 80 1028 SMT
7440660015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 1.5 7.2 10 5.2 7.5 65 1038 SMT
744062002
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 2.2 3.4 2.7 10 24 70 6823 SMT
7440650022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 2.2 6.2 5.9 11 15 65 1028 SMT
7440660022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 2.2 6.7 6.8 7.7 10.5 55 1038 SMT
744062003
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 3.3 2.8 2.5 20 32 55 6823 SMT
7440650033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 3.3 5.3 4.7 15 20 55 1028 SMT
7440660035
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 3.5 5.8 6.4 11.5 15 35 1038 SMT
7440650047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 4.7 4.6 4.2 16.5 23 40 1028 SMT
744062005
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 5 2.15 2 40 46 50 6823 SMT
744066005
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 5 4.9 5.5 14.5 22 30 1038 SMT
744062006
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 6.2 1.9 1.8 40 54 45 6823 SMT
7440660062
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 6.2 4.3 4.5 16.5 24 25 1038 SMT
7440650068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 6.8 4.2 3.6 25 33 30 1028 SMT
744062007
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 7.5 1.7 1.6 50 60 40 6823 SMT
7440650082
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 8.2 3.8 2.8 28.5 37 28 1028 SMT
744062100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 10 1.6 1.4 53 70 35 6823 SMT
744065100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 10 3 2.5 40 53 25 1028 SMT
744066100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 10 3.6 4 25 35 20 1038 SMT
744062150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 15 1.31 1.1 80 95 25 6823 SMT
744065150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 15 2.2 2.25 69 90 22 1028 SMT
744066150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 15 3.2 3.25 37 50 16 1038 SMT
744062180
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 18 1.28 1 90 100 25 6823 SMT
744065220
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 22 1.8 1.9 104 135 16 1028 SMT
744066220
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 22 2.5 2.3 55.8 75 12 1038 SMT
744066330
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 33 2.1 1.8 92 112 10 1038 SMT
744066470
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 47 1.75 1.85 121 160 8 1038 SMT
744066680
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 68 1.5 1.5 185 216 7 1038 SMT
744066101
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 100 1.2 1.2 255 300 6 1038 SMT
744066151
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 150 1 1.1 350 470 6 1038 SMT
744066221
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 220 0.75 0.85 570 740 6 1038 SMT
744066331
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT Tiny Power Inductor 330 0.6 0.7 770 1000 6 1038 SMT
