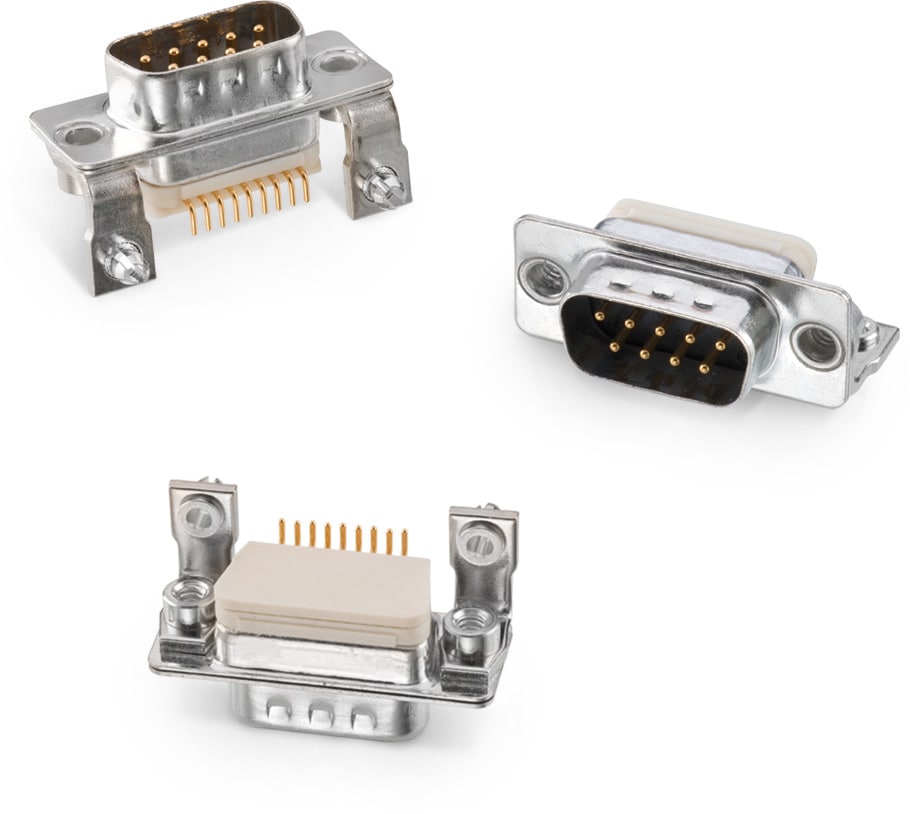

WE-D-SUB Filter Bent 90° SMT

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7.5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Low size: 6.3 mm
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

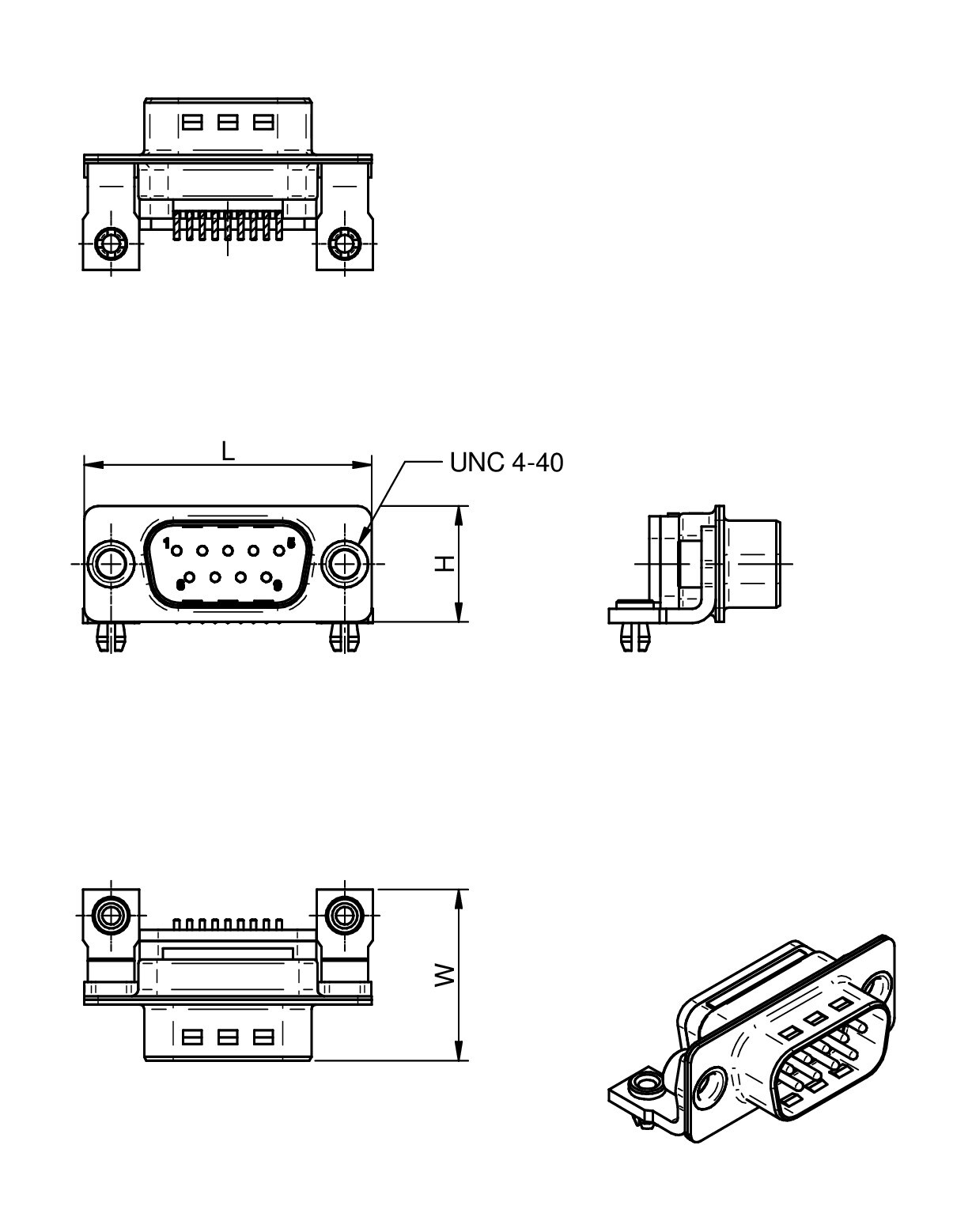

	Order Code	Datasheet	Downloads	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples
	240117113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 240117113 (rev1).igs \| 16 MB STP 240117113 (rev1).stp \| 1.6 MB	9	Male	30.8	18.3	12.4
	240617113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 240617113 (rev1).igs \| 18.9 MB STP 240617113 (rev1).stp \| 1.7 MB	9	Female	30.8	18.3	12.4
	242117113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 242117113 (rev1).igs \| 23.3 MB STP 242117113 (rev1).stp \| 1.7 MB	15	Male	39.2	18.3	12.4
	242617113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 242617113 (rev1).igs \| 28.1 MB STP 242617113 (rev1).stp \| 1.8 MB	15	Female	39.2	18.3	12.4
	244117113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_244117113 (rev1).igs \| 9.3 MB STP Download_STP_244117113 (rev1).stp \| 2.9 MB	25	Male	53.1	18.3	12.4
	244617113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_244617113 (rev1).igs \| 9.1 MB STP Download_STP_244617113 (rev1).stp \| 1.9 MB	25	Female	53.1	18.3	12.4
	246117113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_246117113 (rev1).igs \| 9.7 MB STP Download_STP_246117113 (rev1).stp \| 2.1 MB	37	Male	69.5	18.3	12.4
	246617113	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_246617113 (rev1).igs \| 10.2 MB STP Download_STP_246617113 (rev1).stp \| 2.1 MB	37	Female	69.5	18.3	12.4
