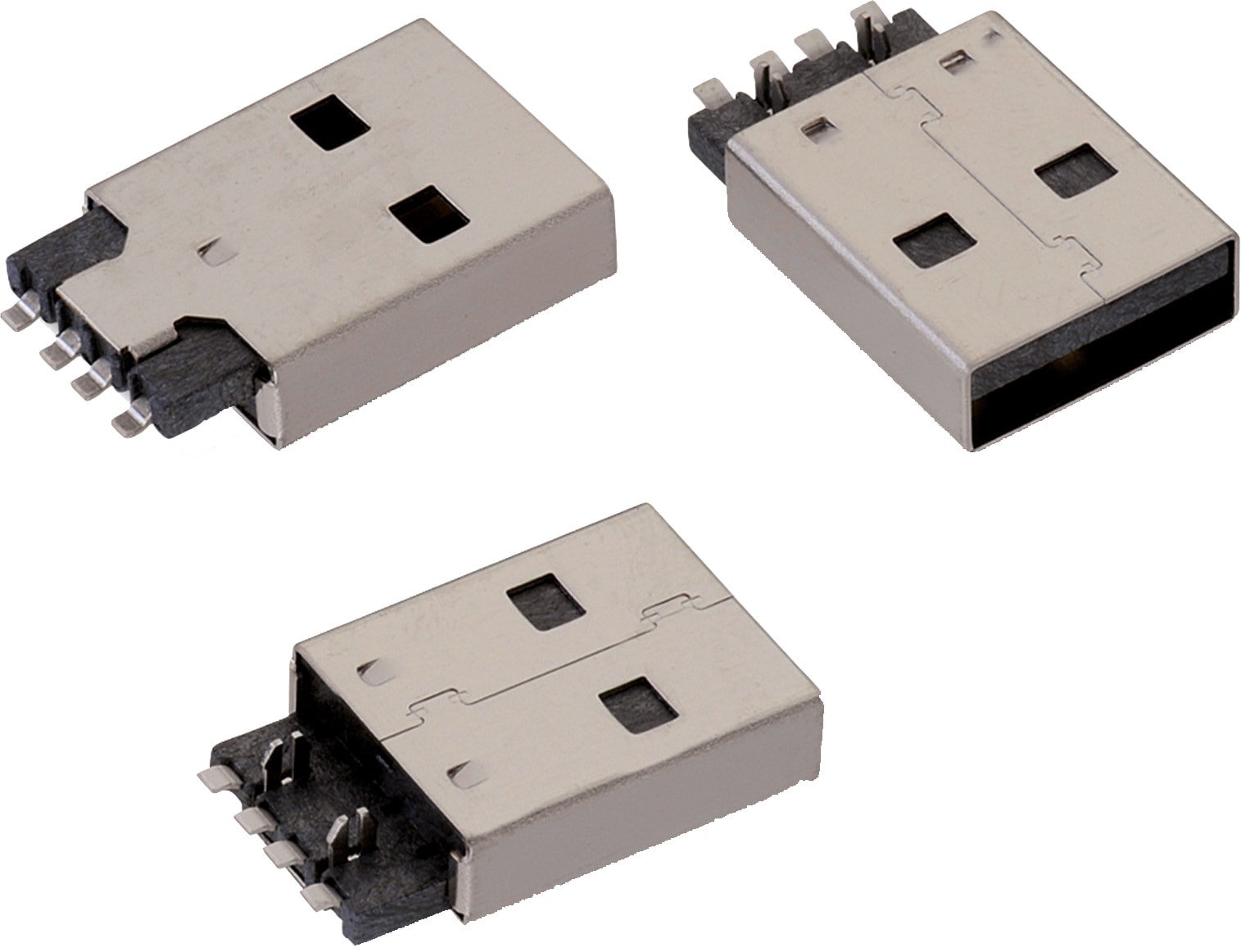

WR-COM USB 2.0 Plug Type A SMT w. Clip

Characteristics

Also available in tape and reel packaging. Please contact us for more information.

General Information
Operating Temperature	-40 °C up to +105 °C
Durability	1 500 Mating cycles
Connector Type	USB
Gender	Plug
Type	Horizontal

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Brass
Shielding Plating	Nickel (Ni)

Electrical Properties
Working Voltage	30 V (AC)
Withstanding Voltage	750 V (AC)
Contact Resistance	20 mΩ

Application Notes

ANE014 USB 2.0 with REDFIT IDC SKEDD Connector
PDF

Products

	Order Code	Datasheet	Downloads	Application	Interface Type	Type	Gender	Pins	Mount	Working Voltage (V (AC))	Packaging	Design Kit	Filter Stick	Filter Bag	Samples
	629004113921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev24a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev24b).zip \| 61.5 MB EAG Eagle_WR-USB (rev24a).lbr \| 448.2 KB CAD files ZIP 3D 3D_629004113921 (rev1).pdf \| 211.5 KB IGS Download_IGS_629004113921 (rev1).igs \| 3.2 MB STP Download_STP_629004113921 (rev1).stp \| 769.7 KB Download all 6 files as zip archive ZIP	USB 2.0	Type A	Horizontal	Plug	4	SMT	30	Tube	612690 614001	829999STICK	829999BAG

	Order Code	Datasheet
	629004113921	SPEC

Samples

	Order Code	Datasheet	Downloads	Application	Interface Type	Type	Gender	Pins	Mount	Working Voltage (V (AC))	Packaging	Design Kit	Filter Stick	Filter Bag	Samples

Mates with

WR-COM USB 2.0 Type A Horizontal THT Short Type

WR-COM USB 2.0 Type A Horizontal SMT Short Type

WR-COM USB 2.0 Type A Up Right THT

WR-COM USB 2.0 Type A Horizontal SMT

WR-COM USB 2.0 Type A Horizontal

WR-COM USB 2.0 Type A Horizontal THT Short Type

WR-COM USB 2.0 Type A Vertical Dual

WR-COM USB 2.0 Type A Horizontal SMT with pegs

WR-COM Type A Horizontal THR Dual Mid-Mount

WR-COM USB 2.0 Type A Vertical Short Type THT

WR-COM USB 2.0 Type A Vertical THR

WR-COM USB 2.0 Type A Horizontal THT
