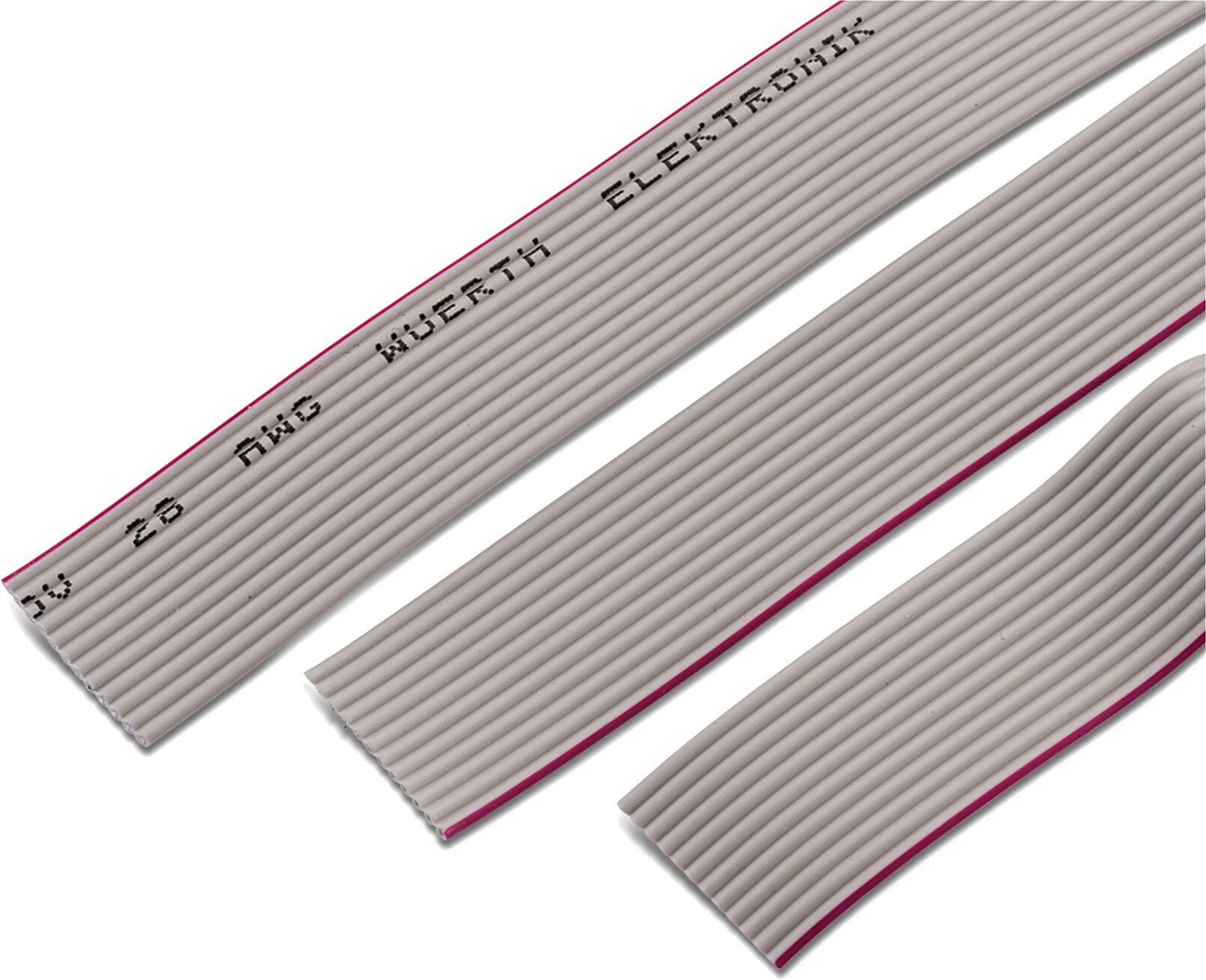

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces. Operating temperature -25 °C up to 105 °C. Dielectric strength 2000 V (AC)
Material Properties
Insulator MaterialPVC
Insulator ColorGrey with Red Marking on 1st Conductor
General Information
Operating Temperature-25 °C up to +105 °C
Withstanding Voltage2000 V (AC)
RISO100 MΩ
Unbalanced Impedance105 Ω
Pitch1.27 mm
Certification
cULus ApprovalE328849
Wire Properties
Stranded Wire Section (AWG)28 (AWG)
Stranded Wire Section (Metric)0.089 (mm²)
Packaging Properties
PackagingBag

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Pins
L(mm)
IR(A)
Operating Temperature
Stranded Wire Section (AWG)
Packaging
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
63910415521CAB
SPEC4, 5.08 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins4
Length5.08 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63910615521CAB
SPEC6, 7.62 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins6
Length7.62 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
690001
–Check availability
63910815521CAB
SPEC8, 10.16 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins8
Length10.16 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
690001
–Check availability
63910915521CAB
SPEC9, 11.43 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins9
Length11.43 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63911015521CAB
SPEC10, 12.7 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins10
Length12.7 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001612690690001
–Check availability
63911215521CAB
SPEC12, 15.24 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins12
Length15.24 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
690001
–Check availability
63911415521CAB
SPEC14, 17.78 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins14
Length17.78 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001690001
–Check availability
63911515521CAB
SPEC15, 19.05 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins15
Length19.05 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63911615521CAB
SPEC16, 20.32 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins16
Length20.32 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001690001
–Check availability
63912015521CAB
SPEC20, 25.4 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins20
Length25.4 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001690001
–Check availability
63912415521CAB
SPEC24, 30.48 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins24
Length30.48 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
690001
–Check availability
63912515521CAB
SPEC25, 31.75 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins25
Length31.75 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63912615521CAB
SPEC26, 33.02 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins26
Length33.02 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001690001
–Check availability
63913415521CAB
SPEC34, 43.18 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins34
Length43.18 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit
612001
–Check availability
63914015521CAB
SPEC40, 50.8 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins40
Length50.8 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63915015521CAB
SPEC50, 63.5 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins50
Length63.5 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63916015521CAB
SPEC60, 76.2 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins60
Length76.2 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability
63916415521CAB
SPEC64, 81.28 mm, 1 A
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Pins64
Length81.28 mm
Rated Current1 A
Operating Temperature -25 °C up to +105 °C
Stranded Wire Section (AWG)28 (AWG)
PackagingBag
Design Kit –
–Check availability

Suitable for

WR-WST REDFIT IDC SKEDD

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
Design Kit Connector Solutions
Design Kit WR-MM MiniModule Connectors
