WE-XHMI SMT Power Inductor EXTENDED

Shielded

 Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
1090 11.6 10.5 8.8 SMT

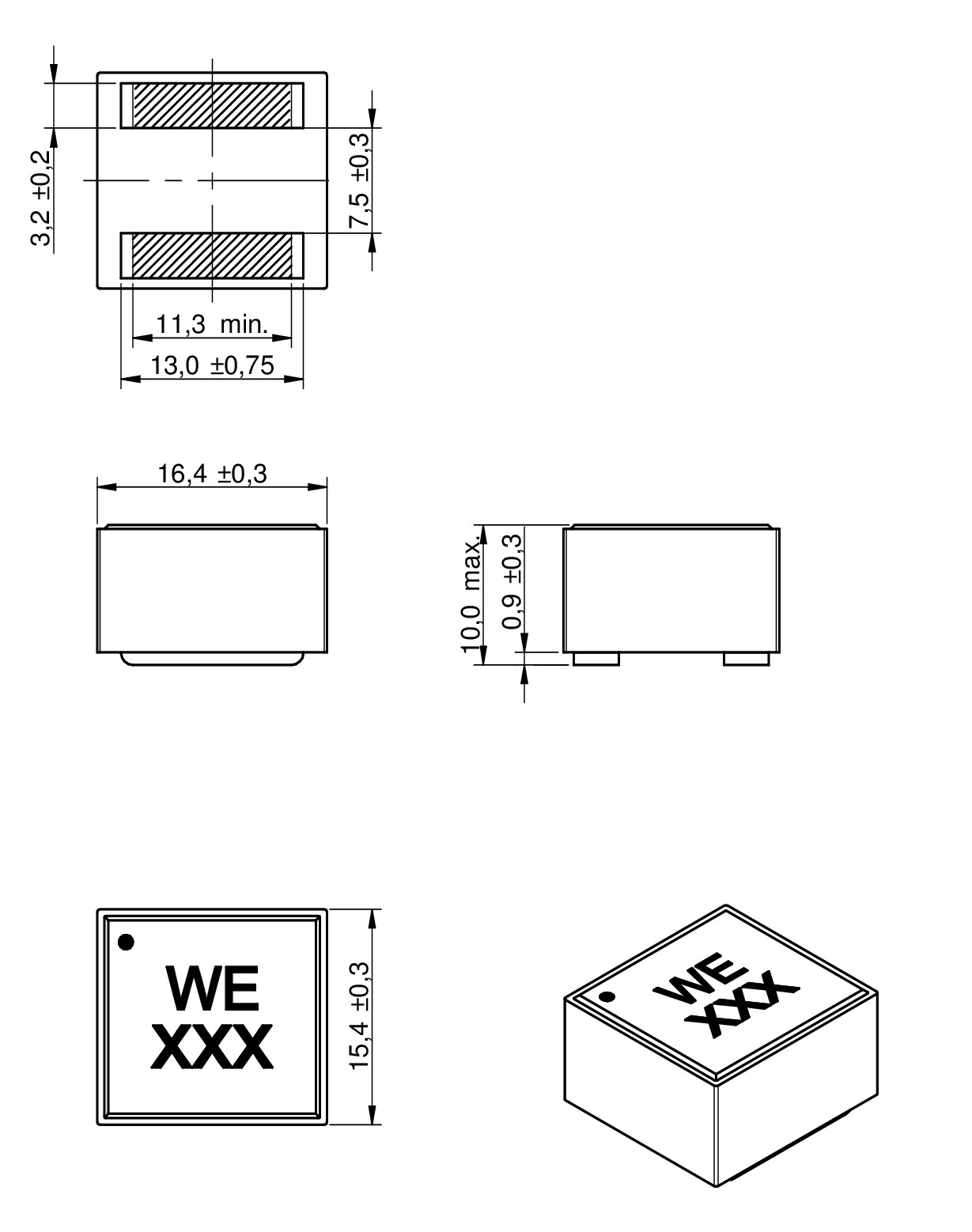

1510 16.4 15.4 10 SMT
6030 6.65 6.45 2.75 SMT
6060 6.65 6.45 5.8 SMT
EXT. 8080 8.8 8.3 - SMT

Characteristics

  • Flat wire coil for low copper losses
  • Composite core material allows high saturation currents
  • Compact design
  • Magnetically shielded
  • High current capability and handles high transient current spikes
  • Low leakage flux noise
  • Operating temperature: -40°C up to +125°C

Applications

  • DC/DC-converter for high current power supplies
  • DC/DC-converter for Field Programmable Gate Array (FPGA)
  • Power supplies for mobile devices
  • POL-converters
  • Mainboards/ graphic cards
  • Battery powered devices
  • Wireless communication devices
  • Filter

Products

All
1090
1510
6030
6060
8080
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IR
(A)
ISAT
(A)
RDC
(mΩ)
fres
(MHz)
MountDesign Kit Samples
744393440018SPEC
8 files 0.18 1.32 169 SMT7443934
744393440033SPEC
8 files 0.33 16.5 31 2.1 113 SMT7443934
744393440056SPEC
8 files 0.56 16 30.5 2.9 77 SMT7443934
74439358010SPEC
8 files 1 17 2.1 53 SMT7443934
74439344010SPEC
8 files 1 12 27.5 5.5 59 SMT7443934
74439344012SPEC
8 files 1.2 10.3 26 6.4 53 SMT7443934
74439358022SPEC
8 files 2.2 13 3.7 33 SMT7443934
74439369022SPEC
8 files 2.2 16 2.2 28 SMT7443936
74439344022SPEC
8 files 2.2 8 16 10.5 37 SMT7443934
74439369033SPEC
8 files 3.3 15 3.4 23 SMT7443936
74439344033SPEC
8 files 3.3 6 14.5 19.2 31 SMT7443934
74439358047SPEC
8 files 4.7 9.5 8.65 22 SMT7443934
74439369047SPEC
8 files 4.7 13.5 5 21 SMT7443936
74439370047SPEC
8 files 4.7 17 3.1 16 SMT7443936
74439346047SPEC
8 files 4.7 7.4 13 28 SMT7443934
74439344047SPEC
8 files 4.7 4.7 13 31 28 SMT
74439369056SPEC
8 files 5.6 11.5 5.9 18 SMT7443936
74439346056SPEC
8 files 5.6 6.9 15 25 SMT7443934
74439358068SPEC
8 files 6.8 7.2 15 13 22 SMT7443934
74439369068SPEC
8 files 6.8 10.5 7.16 16 SMT7443936
74439370068SPEC
8 files 6.8 15 4.1 14 SMT7443936
74439346068SPEC
8 files 6.8 6.5 17.6 22 SMT7443934
74439370082SPEC
8 files 8.2 13 5.5 11 SMT7443936
74439346082SPEC
8 files 8.2 5.3 23 19 SMT7443934
74439369082SPEC
8 files 8.2 9.8 10 16 SMT
74439358100SPEC
8 files 10 5.8 19 17 SMT7443934
74439370100SPEC
8 files 10 11.5 6.4 9 SMT7443936
74439346100SPEC
8 files 10 5 26.5 18 SMT7443934
74439369100SPEC
8 files 10 9.4 11 14 SMT
74439370150SPEC
8 files 15 10 34 10.5 8 SMT7443936
74439346150SPEC
5 files 15 4.2 42 14 SMT
74439369150SPEC
8 files 15 8.3 14.8 11 SMT
NEW74439358150SPEC
5 files 15 25 12 SMT
74439370220SPEC
8 files 22 8 12.5 7 SMT7443936
74439370330SPEC
8 files 33 8.5 18 5 SMT
Order Code Data­sheet Simu­lation
744393440018SPEC
744393440033SPEC
744393440056SPEC
74439358010SPEC
74439344010SPEC
74439344012SPEC
74439358022SPEC
74439369022SPEC
74439344022SPEC
74439369033SPEC
74439344033SPEC
74439358047SPEC
74439369047SPEC
74439370047SPEC
74439346047SPEC
74439344047SPEC
74439369056SPEC
74439346056SPEC
74439358068SPEC
74439369068SPEC
74439370068SPEC
74439346068SPEC
74439370082SPEC
74439346082SPEC
74439369082SPEC
74439358100SPEC
74439370100SPEC
74439346100SPEC
74439369100SPEC
74439370150SPEC
74439346150SPEC
74439369150SPEC
NEW74439358150SPEC
74439370220SPEC
74439370330SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IR
(A)
ISAT
(A)
RDC
(mΩ)
fres
(MHz)
MountDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
