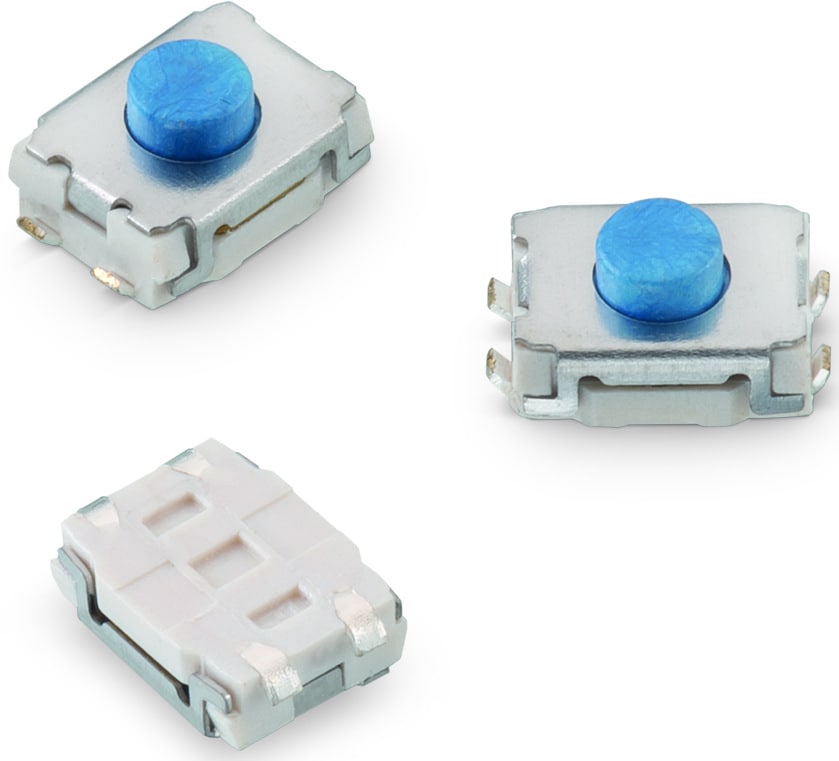

WS-TASV J-Bend SMT Tact Switch 4.7x3.5 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	20 mA
V_R	15 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g
Electrical Life	100000 Cycles; 300000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Status	H (mm)	Operation Force (g)	Electrical Life (Cycles)	Actuator Color	Washable	Vaporphase process	Design Kit	Samples
	434133025826	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev25a).lbr \| 448 KB CAD files ZIP 3D 3D_4341x30258x6 (rev1).pdf \| 54 KB IGS IGS_4341x30258x6 (rev1).igs \| 1.2 MB STP STP_4341x30258x6 (rev1).stp \| 268.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	260	100000	Blue	No	not specified	499001
	434163025816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev25a).lbr \| 448 KB CAD files ZIP 3D 3D_4341x30258x6 (rev1).pdf \| 54 KB IGS IGS_4341x30258x6 (rev1).igs \| 1.2 MB STP STP_4341x30258x6 (rev1).stp \| 268.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	160	300000	Black	No	not specified	499001
