Applications

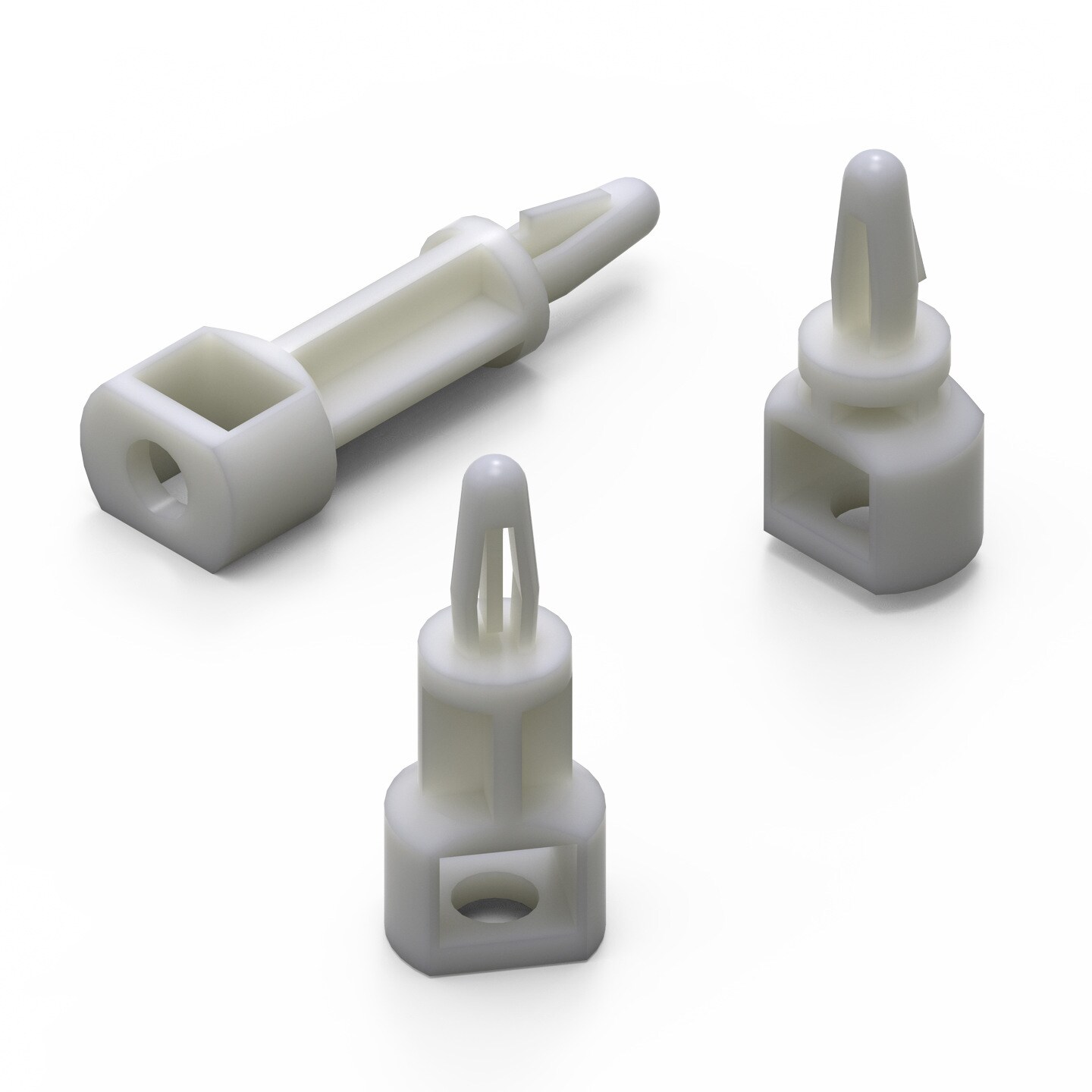

On one end these circuit board spacers have a snap-in for a panel thickness of 1.6mm and a drilling of 4.0mm. On the other end you can use a snap rivet which will accommodate a wide range of panel thicknesses.

Properties
Material	Nylon 66
Color	Natural
Flammability Rating according to	UL94 V-2

General Information
Operating Temperature	-30 up to +85 °C

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	L (mm)	Board	Samples
709851000	SPEC	3 files CAD files ZIP 3D 3D_709851000 (rev1).pdf \| 60.6 KB IGS Download_IGS_709851000 (rev1).igs \| 270.5 KB STP Download_STEP_709851000 (rev1).stp \| 51.5 KB Download all 3 files as zip archive ZIP	9.5	700990
709852000	SPEC	3 files CAD files ZIP 3D 3D_709852000 (rev1).pdf \| 60.3 KB IGS Download_IGS_709852000 (rev1).igs \| 368 KB STP Download_STEP_709852000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	11.1	–
709853000	SPEC	3 files CAD files ZIP 3D 3D_709853000 (rev1).pdf \| 62.2 KB IGS Download_IGS_709853000 (rev1).igs \| 369.6 KB STP Download_STEP_709853000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	12.7	–
709854000	SPEC	3 files CAD files ZIP 3D 3D_709854000 (rev1).pdf \| 60.6 KB IGS Download_IGS_709854000 (rev1).igs \| 370 KB STP Download_STEP_709854000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	15.9	–
709855000	SPEC	3 files CAD files ZIP 3D 3D_709855000 (rev1).pdf \| 58.2 KB IGS Download_IGS_709855000 (rev1).igs \| 369.3 KB STP Download_STEP_709855000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	19.1	700990
709856000	SPEC	3 files CAD files ZIP 3D 3D_709856000 (rev1).pdf \| 54.5 KB IGS Download_IGS_709856000 (rev1).igs \| 369 KB STP Download_STEP_709856000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	22.2	–
709857000	SPEC	3 files CAD files ZIP 3D 3D_709857000 (rev1).pdf \| 54 KB IGS Download_IGS_709857000 (rev1).igs \| 371.1 KB STP Download_STEP_709857000 (rev1).stp \| 125 KB Download all 3 files as zip archive ZIP	25.4	–

Order Code	Datasheet
709851000	SPEC
709852000	SPEC
709853000	SPEC
709854000	SPEC
709855000	SPEC
709856000	SPEC
709857000	SPEC

Samples

Order Code	Datasheet	Downloads	L (mm)	Board	Samples

Use with

WA-EXRV Snap Rivet
