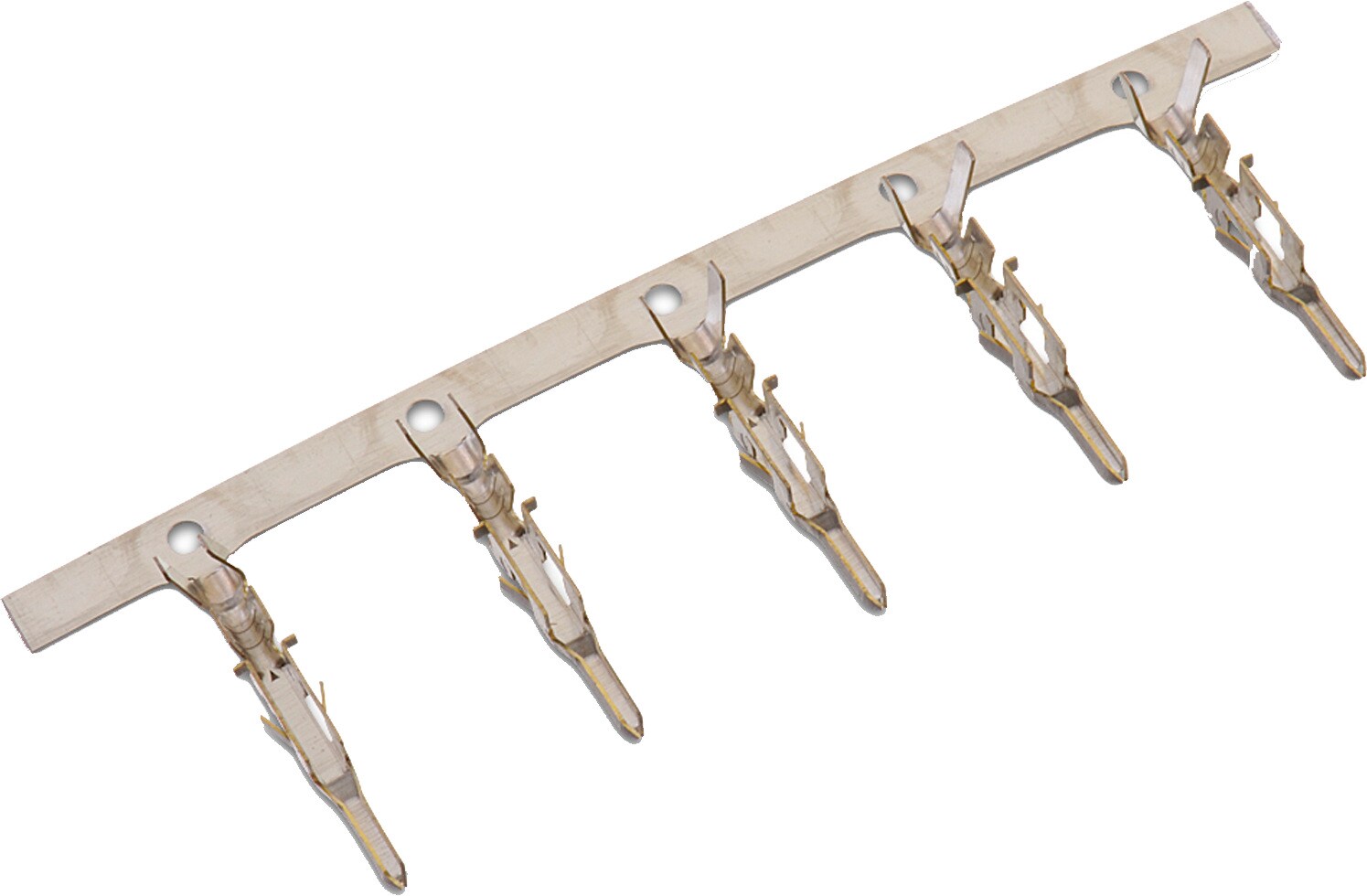

WR-MPC4 4.20 mm Male Terminal

Kind Properties
Pitch4.2 mm
GenderMale
Material Properties
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Working Voltage600 V (AC)
Contact Resistance10 mΩ
Wire Properties
Stranded Wire Section (AWG)16 (AWG); 18 to 24 (AWG); 22 to 28 (AWG)
PackagingBag; Big Reel; Small Reel

Products

Order Code Data­sheet DownloadsPitch
(mm)
GenderTypeIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
Stranded Wire Section (AWG)PackagingToolsDesign Kit Samples
64900813722SPEC
3 files 4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 16 (AWG) Big Reel600649405
64900913722SPEC
3 files 4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 18 to 24 (AWG) Big Reel600420420001
600649406
64900013722SPEC
3 files 4.2 Male Crimp Terminal 9 600 Cable 10 max. 2.3 22 to 28 (AWG) Big Reel600420420001
600649407
64900813722DECSPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 16 (AWG) Bag600420420001
649001
64900913722DECSPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 18 to 24 (AWG) Bag600420420001
612690
649001
64900013722DECSPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 2.3 22 to 28 (AWG) Bag600420420001
649001
64910813722SPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 16 (AWG) Small Reel600649405
64910913722SPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 4.5 18 to 24 (AWG) Small Reel600420420001
600649406
64910013722SPEC
4.2 Male Crimp Terminal 9 600 Cable 10 max. 2.3 22 to 28 (AWG) Small Reel600420420001
600649407
Order Code Data­sheet
64900813722SPEC
64900913722SPEC
64900013722SPEC
64900813722DECSPEC
64900913722DECSPEC
64900013722DECSPEC
64910813722SPEC
64910913722SPEC
64910013722SPEC
Samples
Order Code Data­sheet DownloadsPitch
(mm)
GenderTypeIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
Stranded Wire Section (AWG)PackagingToolsDesign Kit Samples
