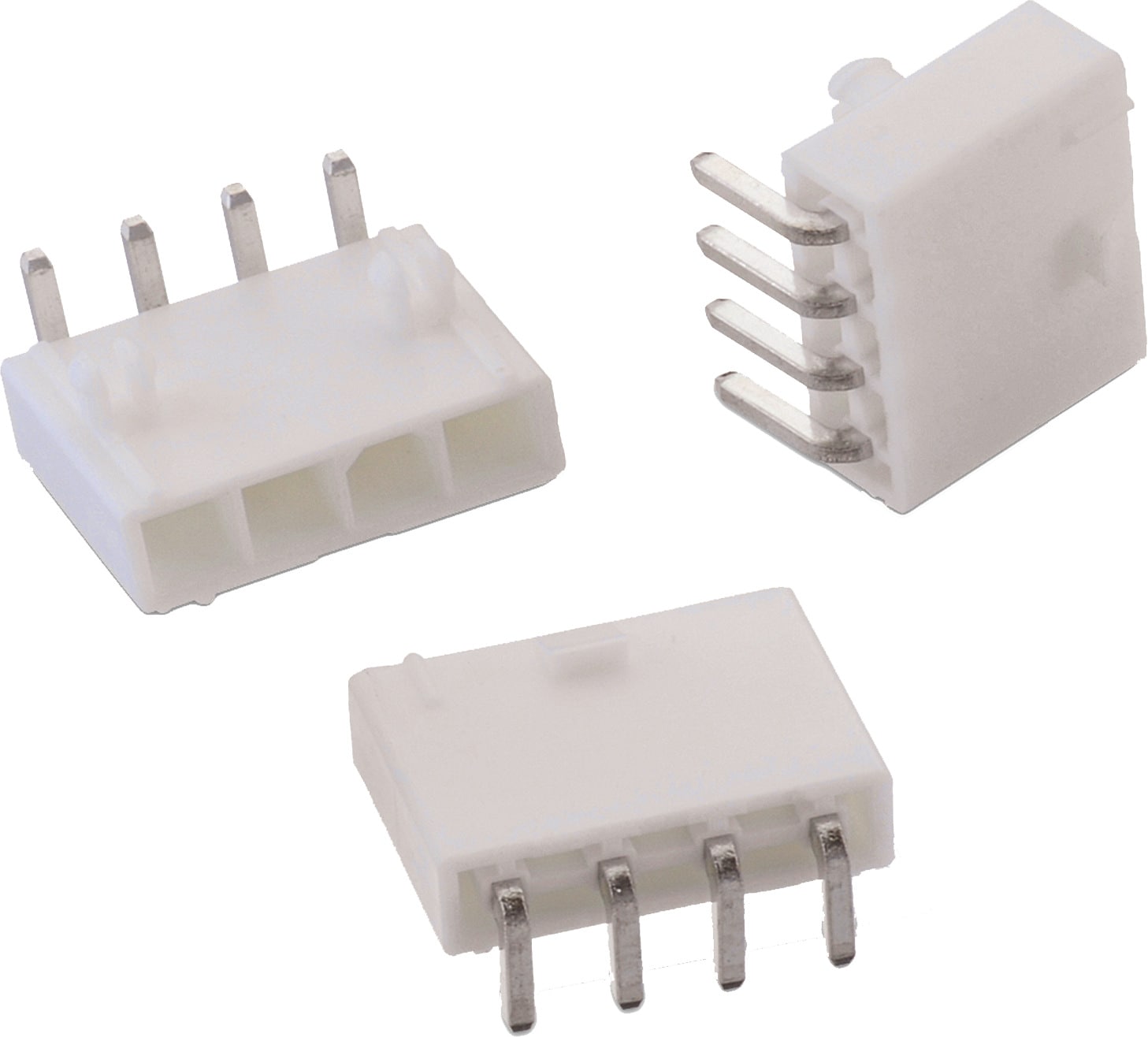

WR-MPC4 4.20 mm Male Single Row Angled Header w. Mounting Pegs

Kind Properties
Pitch4.2 mm
GenderMale
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Working Voltage600 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Wire Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
649002127222SPEC
6 files 2 4.2 Male Right Angled Single THT 600 PCB 10 max. 9.6 Tray649001
649003127222SPEC
6 files 3 4.2 Male Right Angled Single THT 600 PCB 10 max. 13.8 Tray612690
649001
649004127222SPEC
6 files 4 4.2 Male Right Angled Single THT 600 PCB 10 max. 18 Tray649001
649005127222SPEC
6 files 5 4.2 Male Right Angled Single THT 600 PCB 10 max. 22.2 Tray649001
Order Code Data­sheet
649002127222SPEC
649003127222SPEC
649004127222SPEC
649005127222SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
