OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-MPC3 TypeSingle Row Product seriesWR-MPC3 3.00 mm Male Header Single Row Right Angled with Snap-In Plastic Pegs – SMT – Tin

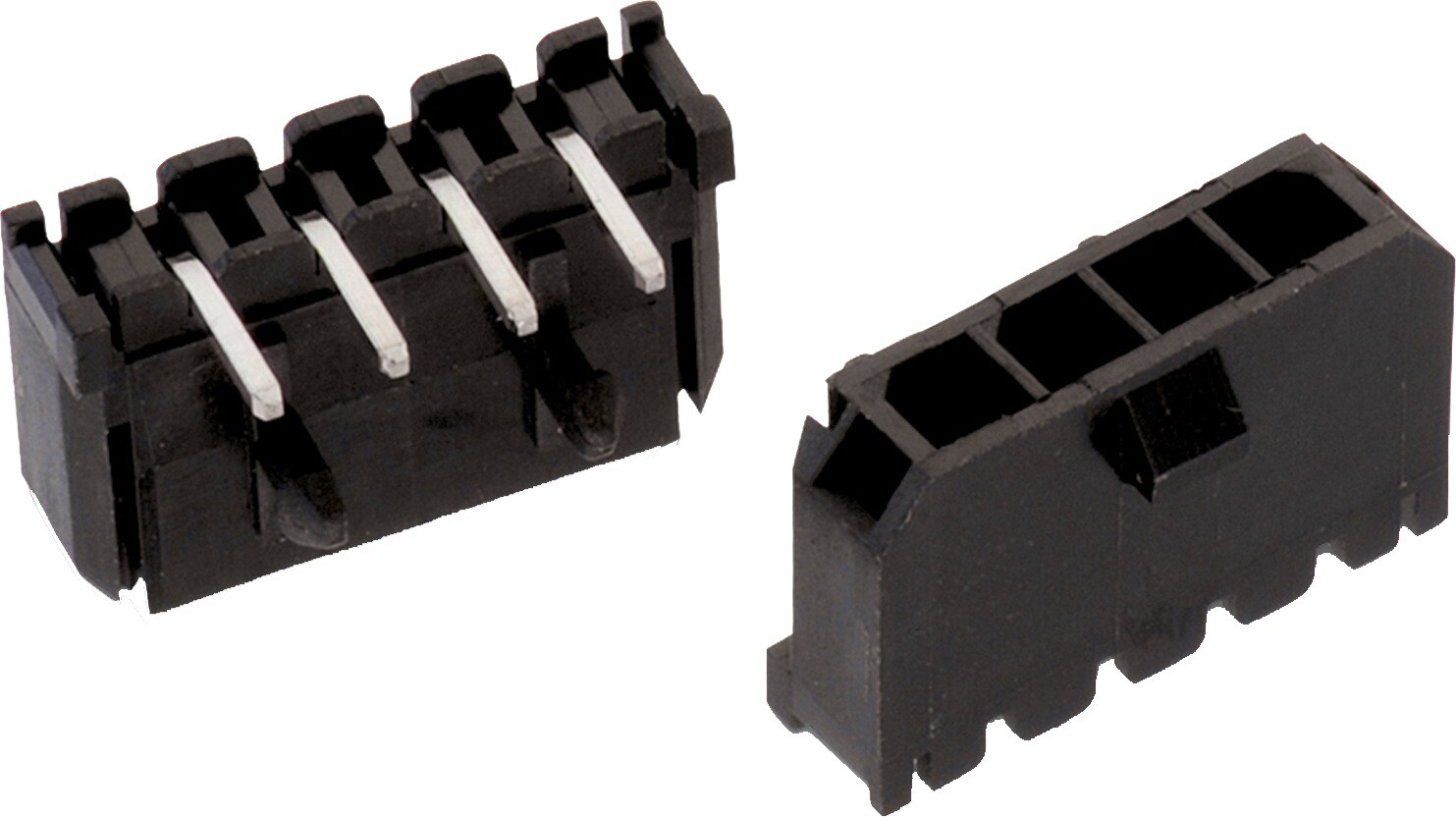

WR-MPC3 3.00 mm Male Header Single Row Right Angled with Snap-In Plastic Pegs – SMT – Tin

General Informations
Pitch	3 mm
Rows	Single
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tube

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
66200211022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200211022 (rev1).pdf \| 73.3 KB IGS Download_IGES_66200211022 (rev1).iges \| 1021.8 KB STP 66200211022 (rev1).stp \| 230.2 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200311022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200311022 (rev1).pdf \| 78.5 KB IGS Download_IGES_66200311022 (rev1).iges \| 1.1 MB STP 66200311022 (rev1).stp \| 263.8 KB Download all 6 files as zip archive ZIP	3	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200411022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200411022 (rev1).pdf \| 83.1 KB IGS Download_IGES_66200411022 (rev1).iges \| 1.3 MB STP 66200411022 (rev1).stp \| 297.1 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200511022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200511022 (rev1).pdf \| 91.6 KB IGS Download_IGES_66200511022 (rev1).iges \| 1.4 MB STP 66200511022 (rev1).stp \| 329.2 KB Download all 6 files as zip archive ZIP	5	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200611022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200611022 (rev1).pdf \| 98.6 KB IGS Download_IGES_66200611022 (rev1).iges \| 1.6 MB STP 66200611022 (rev1).stp \| 366 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200711022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200711022 (rev1).pdf \| 104.8 KB IGS Download_IGES_66200711022 (rev1).iges \| 1.7 MB STP 66200711022 (rev1).stp \| 395.6 KB Download all 6 files as zip archive ZIP	7	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200811022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200811022 (rev1).pdf \| 111.8 KB IGS Download_IGES_66200811022 (rev1).iges \| 1.9 MB STP 66200811022 (rev1).stp \| 429.3 KB Download all 6 files as zip archive ZIP	8	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66200911022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66200911022 (rev1).pdf \| 117.1 KB IGS Download_IGES_66200911022 (rev1).iges \| 2 MB STP 66200911022 (rev1).stp \| 466.6 KB Download all 6 files as zip archive ZIP	9	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66201011022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66201011022 (rev1).pdf \| 124 KB IGS Download_IGES_66201011022 (rev1).iges \| 2.2 MB STP 66201011022 (rev1).stp \| 504 KB Download all 6 files as zip archive ZIP	10	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66201111022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66201111022 (rev1).pdf \| 130.6 KB IGS Download IGES (o123366v245) (rev1).iges \| 2.3 MB STP 66201111022 (rev1).stp \| 531 KB Download all 6 files as zip archive ZIP	11	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001
66201211022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 66201211022 (rev1).pdf \| 138.3 KB IGS Download_IGES_66201211022 (rev1).iges \| 2.4 MB STP 66201211022 (rev1).stp \| 564.4 KB Download all 6 files as zip archive ZIP	12	3	Male	Right Angled	Single	THT	5	250	10	Tin	Tube	662001

Order Code	Datasheet
66200211022	SPEC
66200311022	SPEC
66200411022	SPEC
66200511022	SPEC
66200611022	SPEC
66200711022	SPEC
66200811022	SPEC
66200911022	SPEC
66201011022	SPEC
66201111022	SPEC
66201211022	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
