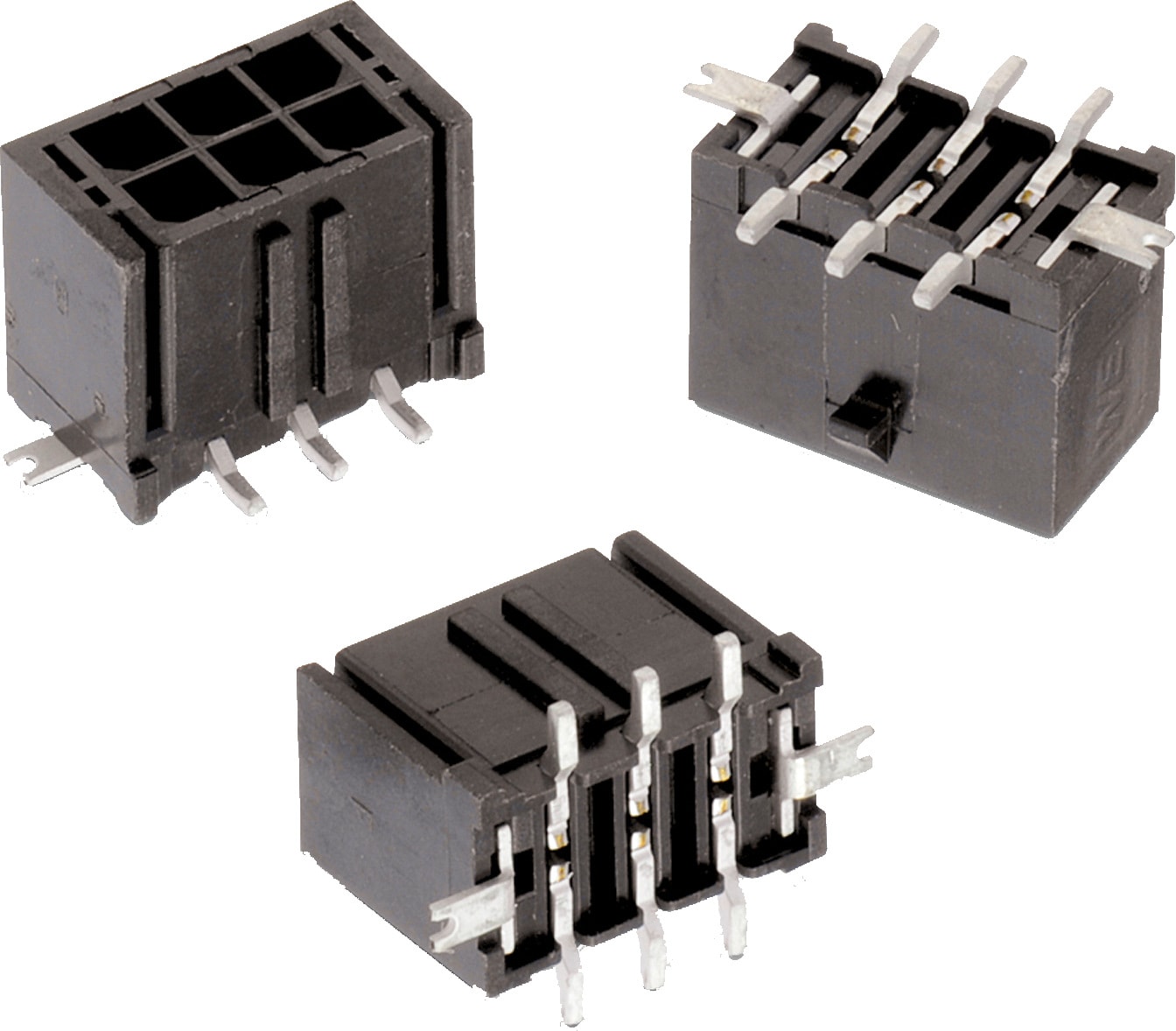

WR-MPC3 3.00 mm Male Header Dual Row Vertical with SMT Solder Tab - SMT - Tin

General Informations
Pitch	3 mm
Rows	Dual
Type	Vertical
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662002231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662002231822 (rev1).pdf \| 65.9 KB IGS Download_IGES_662002231822 (rev1).iges \| 1 MB STP 662002231822 (rev1).stp \| 239.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662004231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662004231822 (rev1).pdf \| 78.9 KB IGS Download_IGES_662004231822 (rev1).iges \| 1.2 MB STP 662004231822 (rev1).stp \| 288.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662006231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662006231822 (rev1).pdf \| 91.7 KB IGS Download_IGES_662006231822 (rev1).iges \| 1.4 MB STP 662006231822 (rev1).stp \| 336.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662008231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662008231822 (rev1).pdf \| 102.8 KB IGS Download_IGES_662008231822 (rev1).iges \| 1.6 MB STP 662008231822 (rev1).stp \| 380.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662010231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662010231822 (rev1).pdf \| 115.5 KB IGS Download_IGES_662010231822 (rev1).iges \| 1.8 MB STP 662010231822 (rev1).stp \| 427.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662012231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662012231822 (rev1).pdf \| 128.2 KB IGS Download_IGES_662012231822 (rev1).iges \| 2 MB STP 662012231822 (rev1).stp \| 478.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662014231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662014231822 (rev1).pdf \| 140.9 KB IGS Download_IGES_662014231822 (rev1).iges \| 2.3 MB STP 662014231822 (rev1).stp \| 527.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662016231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662016231822 (rev1).pdf \| 153.3 KB IGS Download_IGES_662016231822 (rev1).iges \| 2.5 MB STP 662016231822 (rev1).stp \| 575.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662018231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662018231822 (rev1).pdf \| 165.5 KB IGS Download_IGES_662018231822 (rev1).iges \| 2.7 MB STP 662018231822 (rev1).stp \| 619.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662020231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662020231822 (rev1).pdf \| 178.9 KB IGS Download_IGES_662020231822 (rev1).iges \| 2.9 MB STP 662020231822 (rev1).stp \| 679.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662022231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662022231822 (rev1).pdf \| 178.9 KB IGS Download_IGES_662022231822 (rev1).iges \| 2.9 MB STP 662022231822 (rev1).stp \| 736.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001
662024231822	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB KIC KiCad_WR-MPC3 (rev25a).zip \| 72.6 MB CAD files ZIP 3D 662024231822 (rev1).pdf \| 205 KB IGS Download_IGES_662024231822 (rev1).iges \| 3.3 MB STP 662024231822 (rev1).stp \| 779.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	3	Male	Vertical	Dual	SMT	5	250	10	Tin	Tray	662001

Order Code	Datasheet
662002231822	SPEC
662004231822	SPEC
662006231822	SPEC
662008231822	SPEC
662010231822	SPEC
662012231822	SPEC
662014231822	SPEC
662016231822	SPEC
662018231822	SPEC
662020231822	SPEC
662022231822	SPEC
662024231822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Dual Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
