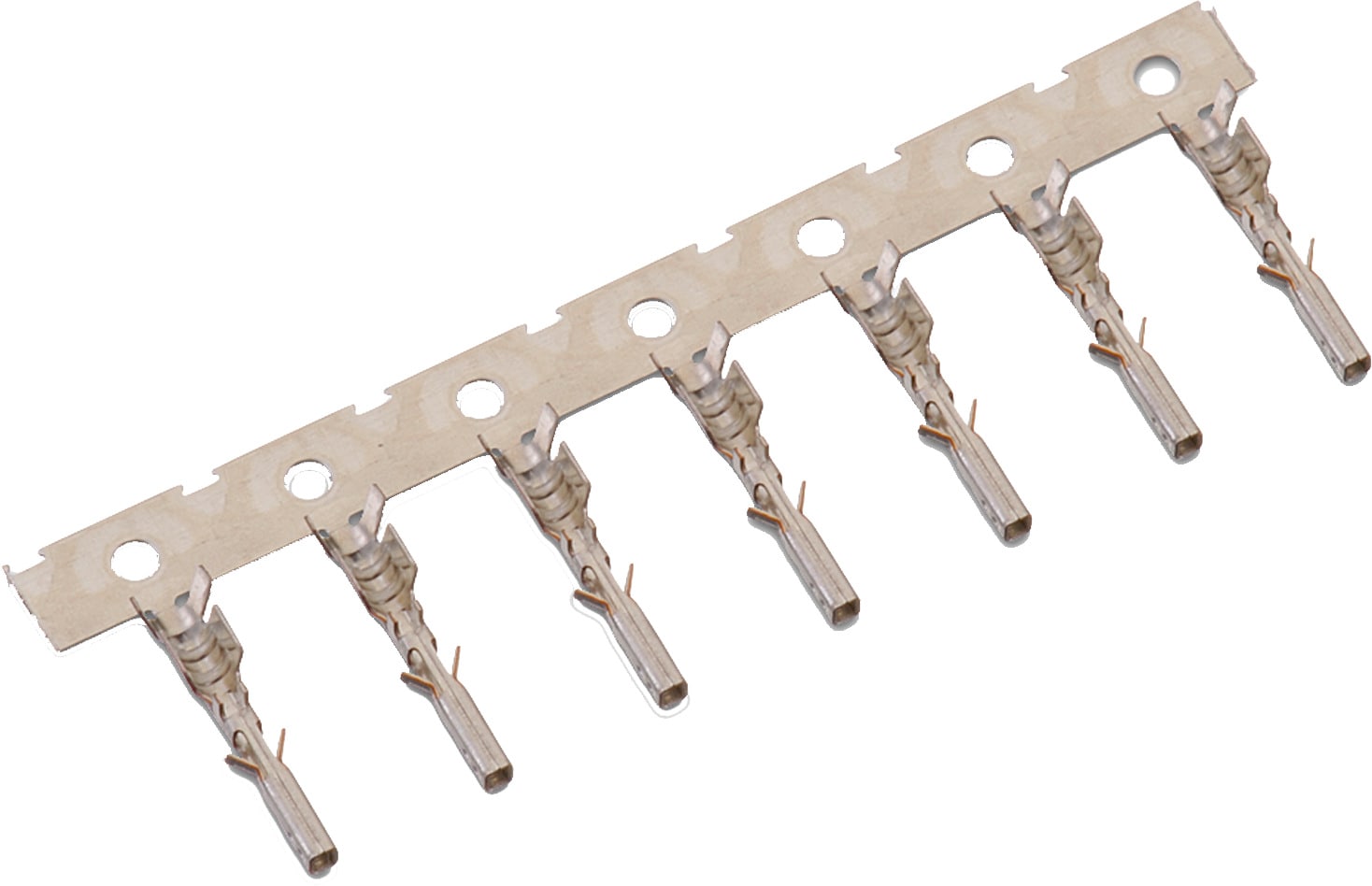

WR-MPC3 3.00 mm Female Crimp Contact | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-MPC3 TypeTerminals Product seriesWR-MPC3 3.00 mm Female Crimp Contact

Kind Properties
Gender	Female

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 up to +105 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Contact Resistance	10 mΩ

Wire Properties
Stranded Wire Section (AWG)	24 to 20 (AWG); 30 to 26 (AWG)
Stranded Wire Section (Metric)	0.129 to 0.0509 (mm²)
Packaging	Bag; Big Reel; Small Reel

Application Notes

ANE001 Low Force Crimp Contacts
PDF

Products

Order Code	Datasheet	Downloads	Gender	Type	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	Stranded Wire Section (AWG)	Packaging	Tools	Design Kit	Samples
66200113722	SPEC	6 files CAD files ZIP 3D 662x0113722_1 (rev1).pdf \| 336.9 KB IGS 662x0113722 (rev1).iges \| 3.1 MB IGS 66200113722 (rev1).igs \| 1.9 MB STP 662x0113722 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	24 to 20 (AWG)	Big Reel	600300300001 600662401	–
66200113722DEC	SPEC	3 files CAD files ZIP 3D 66200113722DEC_1 (rev1).pdf \| 189.8 KB IGS 66200113722DEC (rev1).iges \| 1.3 MB STP 66200113722DEC (rev1).stp \| 557.3 KB Download all 3 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	24 to 20 (AWG)	Bag	600300300001	612690 662001
66210113722	SPEC	6 files CAD files ZIP 3D 66210113722_1 (rev1).pdf \| 288.7 KB IGS 66210113722 (rev1).iges \| 2.8 MB STP 66210113722 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	24 to 20 (AWG)	Small Reel	600300300001 600662401	–
66200413722	SPEC	3 files CAD files ZIP 3D 662x0413722_1 (rev1).pdf \| 311.2 KB IGS 662x0413722 (rev1).iges \| 3.1 MB STP 662x0413722 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	30 to 26 (AWG)	Big Reel	600662404	–
66210413722	SPEC	8 files CAD files ZIP 3D 66210413722_1 (rev1).pdf \| 308 KB IGS 66210413722 (rev1).iges \| 2.8 MB STP 66210413722 (rev1).stp \| 1.1 MB Download all 8 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	30 to 26 (AWG)	Small Reel	–	–
66200413722DEC	SPEC	5 files CAD files ZIP 3D 66200413722DEC_1 (rev1).pdf \| 176.3 KB IGS 66200413722DEC (rev1).iges \| 1.4 MB STP 66200413722DEC (rev1).stp \| 556.2 KB Download all 5 files as zip archive ZIP	Female	Crimp Terminal	5	250	Cable	10	max.	30 to 26 (AWG)	Bag	600300300001	662001

Order Code	Datasheet
66200113722	SPEC
66200113722DEC	SPEC
66210113722	SPEC
66200413722	SPEC
66210413722	SPEC
66200413722DEC	SPEC

Samples

Order Code	Datasheet	Downloads	Gender	Type	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	Stranded Wire Section (AWG)	Packaging	Tools	Design Kit	Samples

Use with

WR-MPC3 3.00 mm Female Dual Row Receptacle

WR-MPC3 3.00 mm Female Single Row Receptacle

Suitable for

WR-MPC3 3.00 mm Female Dual Row Receptacle

WR-MPC3 3.00 mm Female Single Row Receptacle

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MPC3 Micro PowerConnectors
