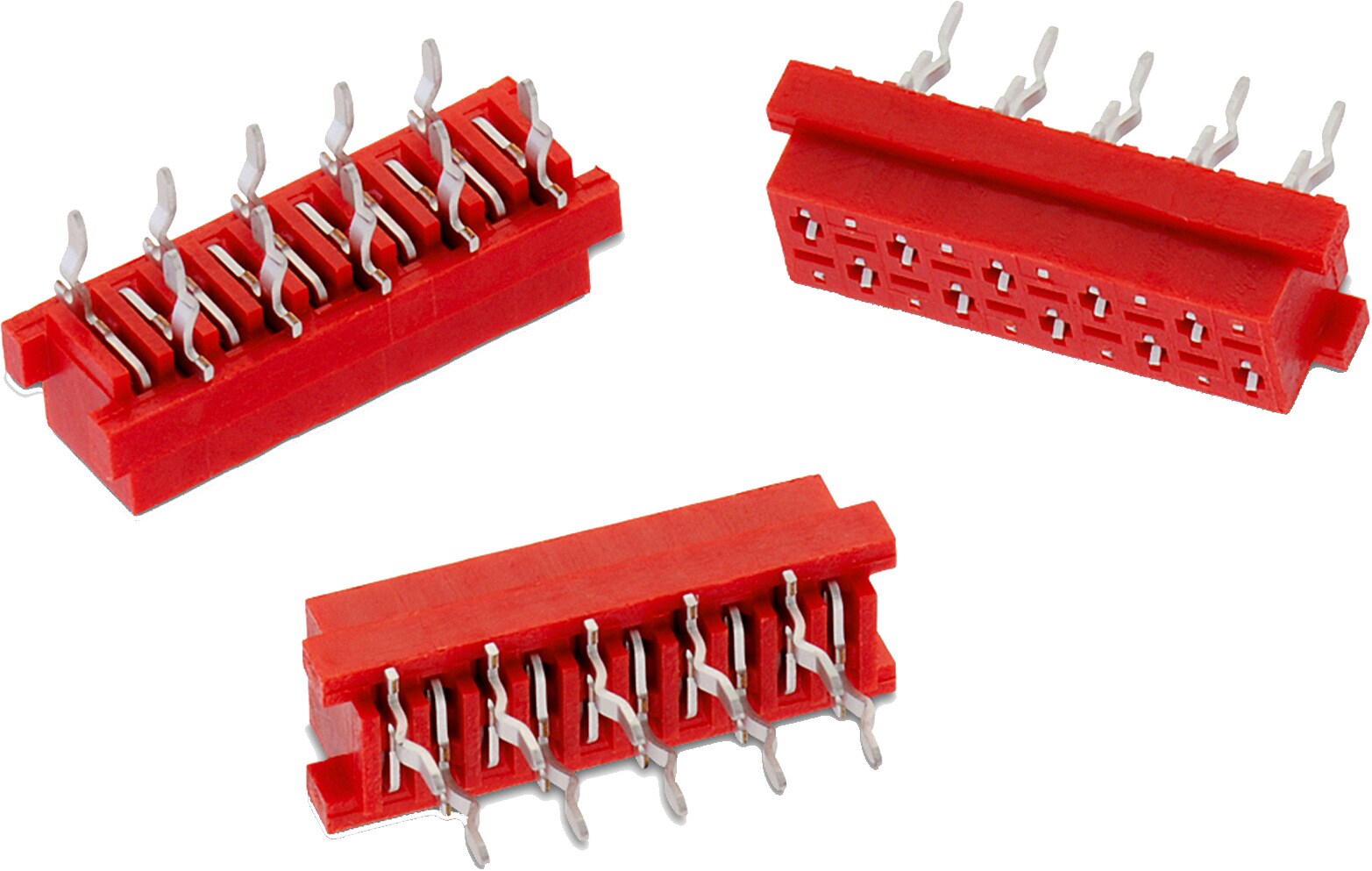

WR-MM Female Connector w/o Latch & w/o Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
690367180472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367180472 (rev1).pdf \| 75.8 KB IGS 690367180472 (rev1).igs \| 1.1 MB STP 690367180472 (rev1).stp \| 436.1 KB Download all 6 files as zip archive ZIP	4	2.54	Female	Straight	THT	7.08	250	1.5	10	max.	Tube	690001
690367180672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367180672 (rev1).pdf \| 96 KB IGS 690367180672 (rev1).igs \| 1.4 MB STP 690367180672 (rev1).stp \| 565.1 KB Download all 6 files as zip archive ZIP	6	2.54	Female	Straight	THT	9.62	250	1.5	10	max.	Tube	690001
690367180872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367180872 (rev1).pdf \| 111.7 KB IGS 690367180872 (rev1).igs \| 1.7 MB STP 690367180872 (rev1).stp \| 697.6 KB Download all 6 files as zip archive ZIP	8	2.54	Female	Straight	THT	12.16	250	1.5	10	max.	Tube	690001
690367181072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367181072 (rev1).pdf \| 134 KB IGS 690367181072 (rev1).igs \| 2 MB STP 690367181072 (rev1).stp \| 831.2 KB Download all 6 files as zip archive ZIP	10	2.54	Female	Straight	THT	14.7	250	1.5	10	max.	Tube	612690 690001
690367181272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367181272 (rev1).pdf \| 150.8 KB IGS 690367181272 (rev1).igs \| 2.3 MB STP 690367181272 (rev1).stp \| 966.2 KB Download all 6 files as zip archive ZIP	12	2.54	Female	Straight	THT	17.24	250	1.5	10	max.	Tube	690001
690367181472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367181472 (rev1).pdf \| 169.1 KB IGS 690367181472 (rev1).igs \| 2.6 MB STP 690367181472 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	14	2.54	Female	Straight	THT	19.78	250	1.5	10	max.	Tube	690001
690367181672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367181672 (rev1).pdf \| 186.1 KB IGS 690367181672 (rev1).igs \| 2.9 MB STP 690367181672 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	16	2.54	Female	Straight	THT	22.32	250	1.5	10	max.	Tube	690001
690367181872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367181872 (rev1).pdf \| 214.3 KB IGS 690367181872 (rev1).igs \| 3.2 MB STP 690367181872 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	18	2.54	Female	Straight	THT	24.86	250	1.5	10	max.	Tube	690001
690367182072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367182072 (rev1).pdf \| 233 KB IGS 690367182072 (rev1).igs \| 3.5 MB STP 690367182072 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	20	2.54	Female	Straight	THT	27.4	250	1.5	10	max.	Tube	690001
690367182272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367182272 (rev1).pdf \| 248.3 KB IGS 690367182272 (rev1).igs \| 3.8 MB STP 690367182272 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	22	2.54	Female	Straight	THT	29.94	250	1.5	10	max.	Tube	690001
690367182472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367182472 (rev1).pdf \| 267.2 KB IGS 690367182472 (rev1).igs \| 4.1 MB STP 690367182472 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	24	2.54	Female	Straight	THT	32.48	250	1.5	10	max.	Tube	690001
690367182672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690367182672 (rev1).pdf \| 287.2 KB IGS 690367182672 (rev1).igs \| 4.4 MB STP 690367182672 (rev1).stp \| 1.9 MB Download all 6 files as zip archive ZIP	26	2.54	Female	Straight	THT	35.02	250	1.5	10	max.	Tube	690001

Order Code	Datasheet
690367180472	SPEC
690367180672	SPEC
690367180872	SPEC
690367181072	SPEC
690367181272	SPEC
690367181472	SPEC
690367181672	SPEC
690367181872	SPEC
690367182072	SPEC
690367182272	SPEC
690367182472	SPEC
690367182672	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-MM Male IDC Connector

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MM MiniModule Connectors
