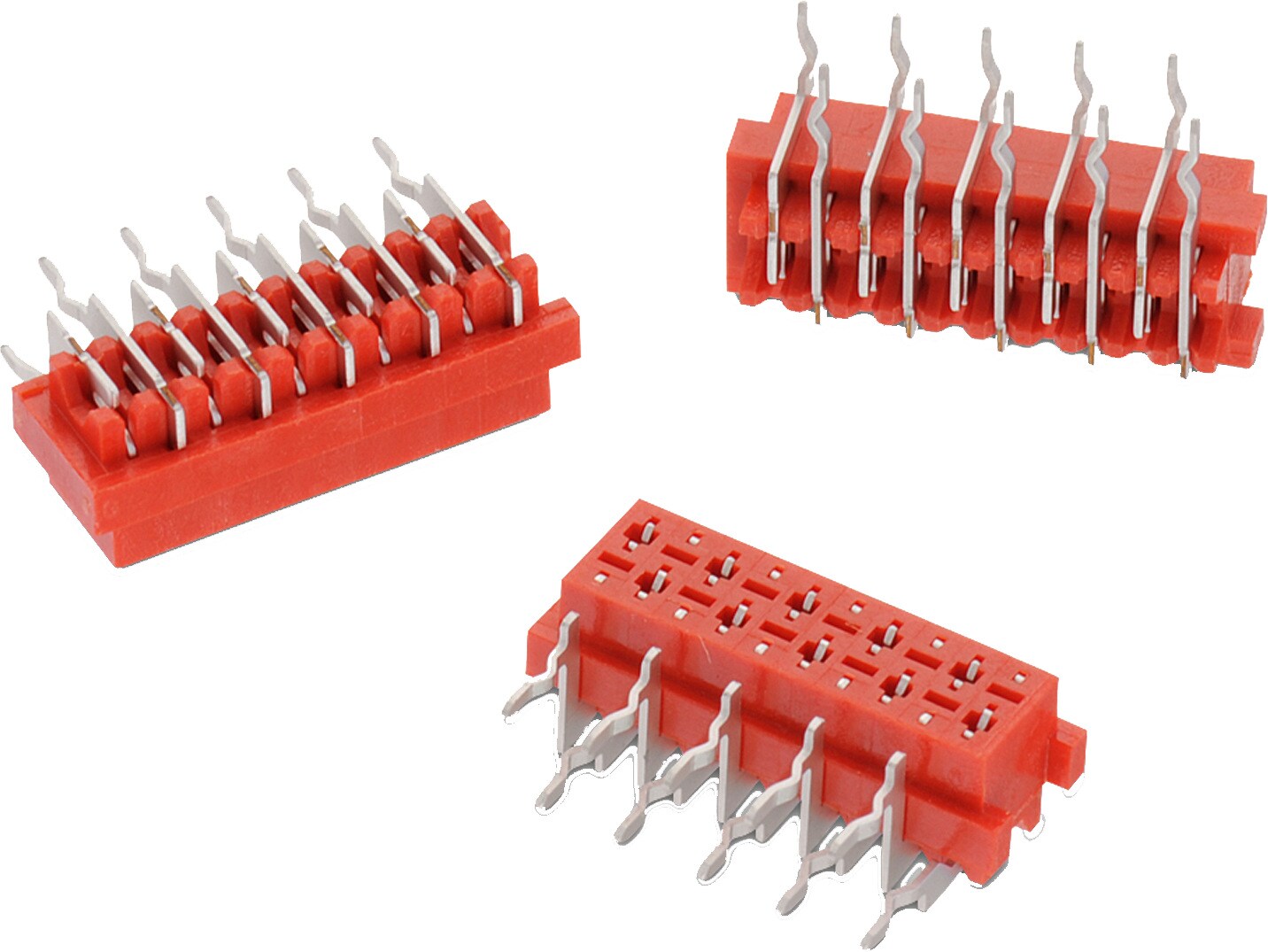

WR-MM Female Angled Connector with Polarization and w/o Latch

Kind Properties
Pitch2.54 mm
GenderFemale
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorRed
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Working Voltage100 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
cULus ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountL
(mm)
Working Voltage
(V (AC))
IR
(A)
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
690368170472SPEC
6 files 4 2.54 Female Angled THT 7.08 100 1.5 10 max. Tube690001
690368170672SPEC
6 files 6 2.54 Female Angled THT 9.62 100 1.5 10 max. Tube690001
690368170872SPEC
6 files 8 2.54 Female Angled THT 12.16 100 1.5 10 max. Tube690001
690368171072SPEC
6 files 10 2.54 Female Angled THT 14.7 100 1.5 10 max. Tube612690
690001
690368171272SPEC
6 files 12 2.54 Female Angled THT 17.24 100 1.5 10 max. Tube690001
690368171472SPEC
6 files 14 2.54 Female Angled THT 19.78 100 1.5 10 max. Tube690001
690368171672SPEC
6 files 16 2.54 Female Angled THT 22.32 100 1.5 10 max. Tube690001
690368171872SPEC
6 files 18 2.54 Female Angled THT 24.86 100 1.5 10 max. Tube690001
690368172072SPEC
6 files 20 2.54 Female Angled THT 27.4 100 1.5 10 max. Tube690001
690368172272SPEC
6 files 22 2.54 Female Angled THT 29.94 100 1.5 10 max. Tube690001
690368172472SPEC
6 files 24 2.54 Female Angled THT 32.48 100 1.5 10 max. Tube690001
690368172672SPEC
6 files 26 2.54 Female Angled THT 35.02 100 1.5 10 max. Tube690001
