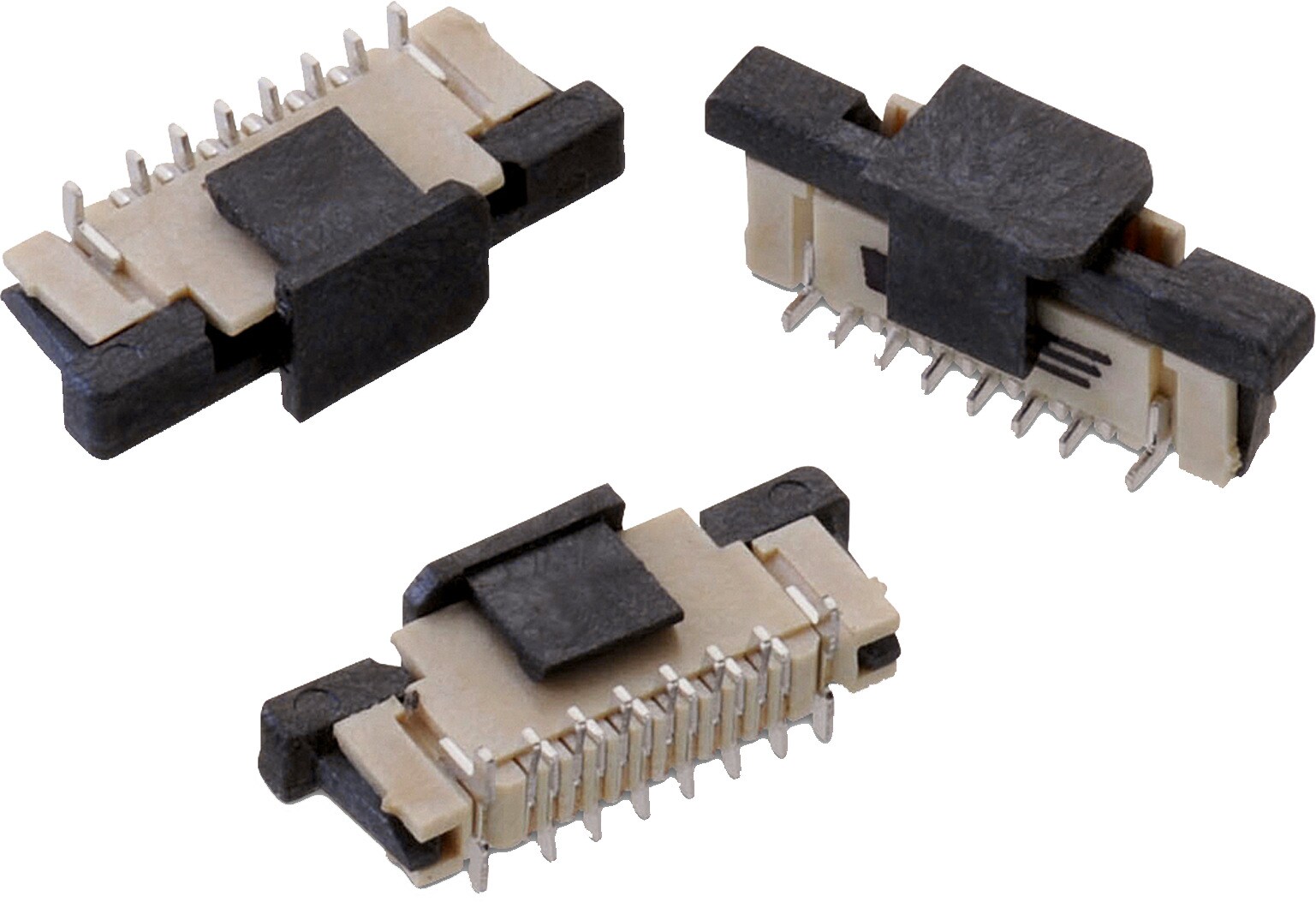

WR-FPC 0.50 mm SMT ZIF Vertical

Kind Properties
Pitch0.5 mm
Material Properties
Insulator MaterialLCP
Contact MaterialPhosphor Bronze
Contact Plating100 (µ") Tin over 50 (µ") Nickel
Contact TypeStamped
Solder TabsBrass

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V (AC))
PackagingContact Resistance
(mΩ)
Tol. RDesign Kit Samples
687306124422SPEC
7 files 6 0.5 Vertical 9.4 0.5 50 Tape and Reel with Cap 20 max.687001
687308124422SPEC
7 files 8 0.5 Vertical 10.4 0.5 50 Tape and Reel with Cap 20 max.687001
687310124422SPEC
7 files 10 0.5 Vertical 11.4 0.5 50 Tape and Reel with Cap 20 max.687001
687312124422SPEC
7 files 12 0.5 Vertical 12.4 0.5 50 Tape and Reel with Cap 20 max.687001
687314124422SPEC
7 files 14 0.5 Vertical 13.4 0.5 50 Tape and Reel with Cap 20 max.687001
687316124422SPEC
7 files 16 0.5 Vertical 14.4 0.5 50 Tape and Reel with Cap 20 max.687001
687318124422SPEC
7 files 18 0.5 Vertical 15.4 0.5 50 Tape and Reel with Cap 20 max.687001
687320124422SPEC
7 files 20 0.5 Vertical 16.4 0.5 50 Tape and Reel with Cap 20 max.612690
687001
687322124422SPEC
7 files 22 0.5 Vertical 17.4 0.5 50 Tape and Reel with Cap 20 max.687001
687324124422SPEC
7 files 24 0.5 Vertical 18.4 0.5 50 Tape and Reel with Cap 20 max.687001
687326124422SPEC
7 files 26 0.5 Vertical 19.4 0.5 50 Tape and Reel with Cap 20 max.687001
687328124422SPEC
7 files 28 0.5 Vertical 20.4 0.5 50 Tape and Reel with Cap 20 max.687001
687330124422SPEC
7 files 30 0.5 Vertical 21.4 0.5 50 Tape and Reel with Cap 20 max.687001
687333124422SPEC
7 files 33 0.5 Vertical 22.9 0.5 50 Tape and Reel with Cap 20 max.687001
687334124422SPEC
7 files 34 0.5 Vertical 23.4 0.5 50 Tape and Reel with Cap 20 max.687001
687340124422SPEC
7 files 40 0.5 Vertical 26.4 0.5 50 Tape and Reel with Cap 20 max.687001
687350124422SPEC
7 files 50 0.5 Vertical 31.4 0.5 50 Tape and Reel with Cap 20 max.687001
