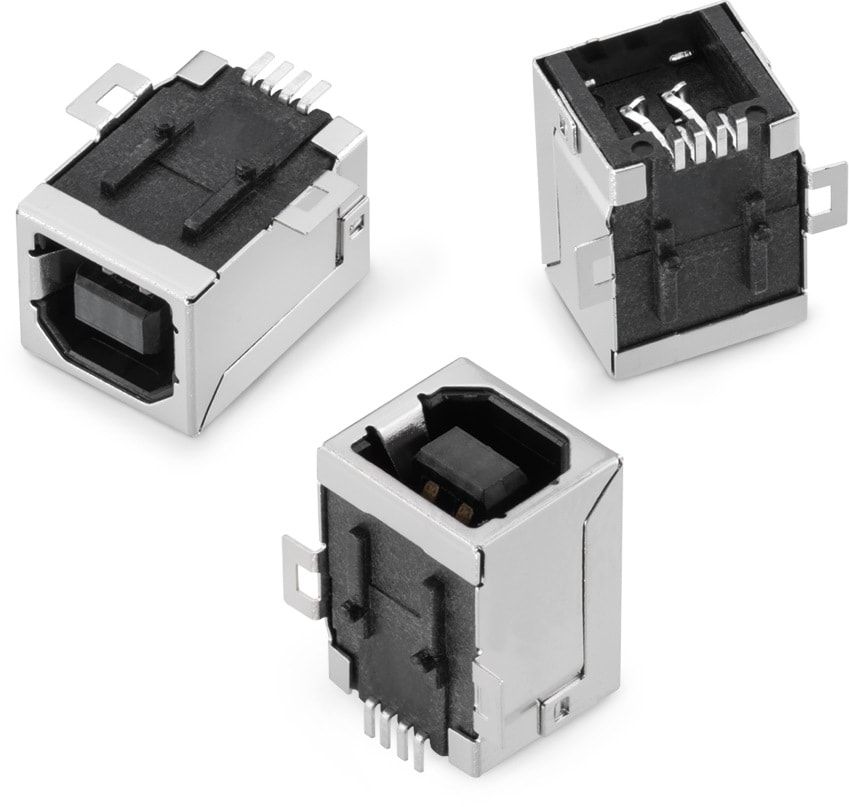

WR-COM USB 2.0 Type B SMT Horizontal

Kind Properties
Durability1 500 Mating cycles
Quality Class1 500 Mating cycles
Connector TypeUSB
GenderReceptacle
TypeHorizontal
Material Properties
Insulator MaterialPA6T
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialBrass
Shielding PlatingNickel
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR1.5 A
Working Voltage30 V (AC)
Withstanding Voltage750 V (AC)
Contact Resistance20 mΩ

Products

Order Code Data­sheet DownloadsApplicationInterface TypeTypePCB Thickness
(mm)
GenderPins
(mm)
MountIR
(A)
Working Voltage
(V (AC))
PackagingDesign Kit Samples
62910416121SPEC
9 files USB 2.0 Type B Horizontal 1.6 Receptacle 4 SMT 1.5 30 Tape and Reel612690
614001
Order Code Data­sheet
62910416121SPEC
Samples
Order Code Data­sheet DownloadsApplicationInterface TypeTypePCB Thickness
(mm)
GenderPins
(mm)
MountIR
(A)
Working Voltage
(V (AC))
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
