| General Information | |
|---|---|
| Operating Temperature | -20 °C up to +85 °C |
| Durability | 5 000 Mating cycles |
| Quality Class | 5 000 Mating cycles |
| Connector Type | USB |
| Gender | Receptacle |
| Type | Reverse Horizontal |
| Material Properties | |
|---|---|
| Insulator Material | LCP |
| Insulator Flammability Rating | UL94 V-0 |
| Color | Blue |
| Contact Material | Phosphor Bronze |
| Contact Plating | Matte Tin |
| Contact Type | Stamped |
| Shielding Material | Brass |
| Shielding Plating | Matte Tin |
| Electrical Properties | |
|---|---|
| IR | 1.8 A |
| Working Voltage | 30 V (AC) |
| Withstanding Voltage | 100 V (AC) |
| Contact Resistance | 50 mΩ |
Products
| Order Code | Datasheet | Downloads | Status | Application | Interface Type | Type | Gender | Pins (pcs) | Mount | IR (A) | Working Voltage (V (AC)) | Packaging | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

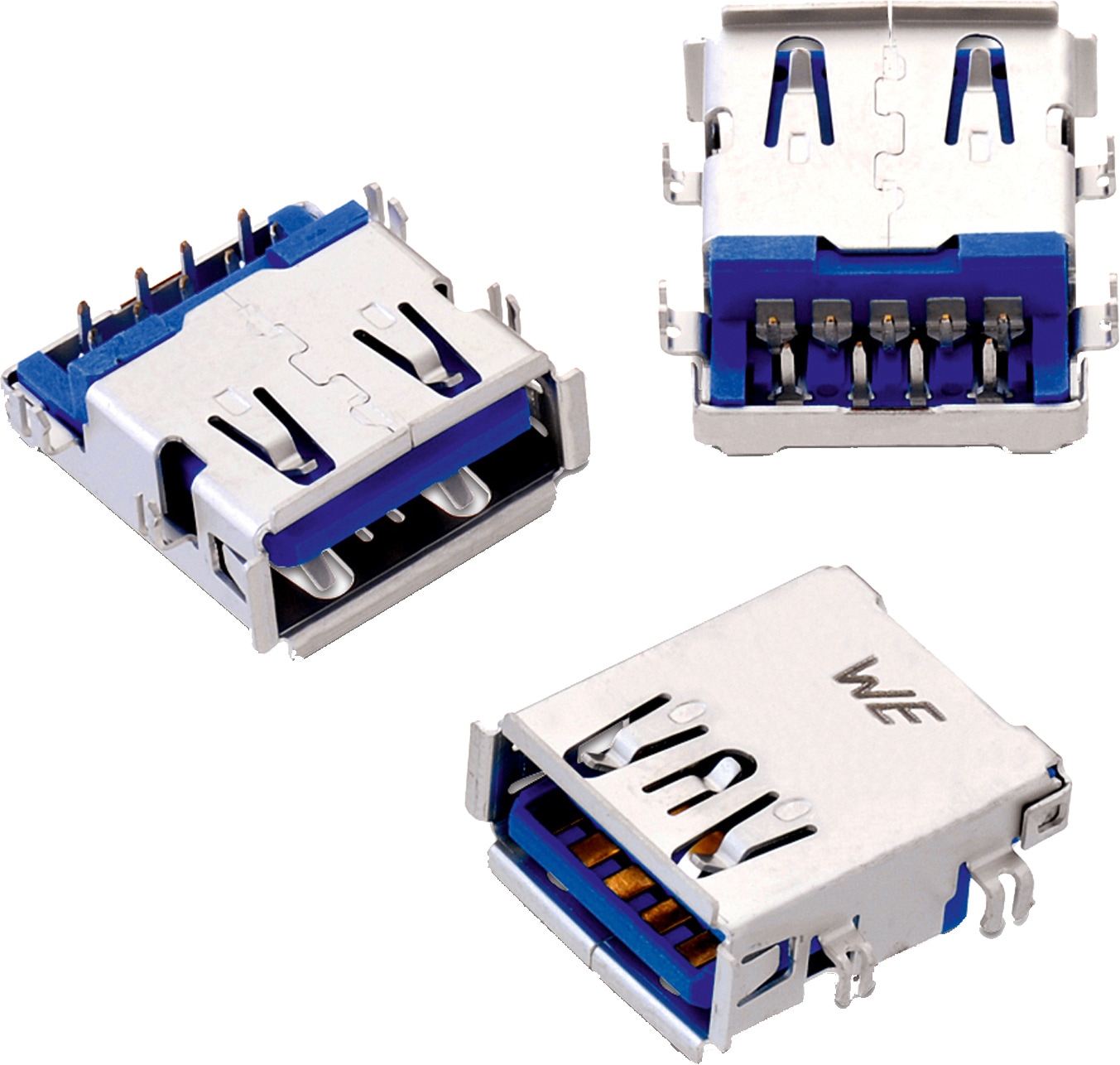

 | 692121130100 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | USB 3.0 | Type A | Reverse Horizontal | Receptacle | 9 | THR | 1.8 | 30 | Tape and Reel | 612690 614001 |
| Order Code | Datasheet | |
|---|---|---|
| 692121130100 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Application | Interface Type | Type | Gender | Pins (pcs) | Mount | IR (A) | Working Voltage (V (AC)) | Packaging | Design Kit | Samples |
|---|
