OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyWire-to-Board ConnectorsProduct sub-familyWR-BHD Box HeaderPitch2.54 mmGenderMale PCB sideProduct seriesWR-BHD 2.54 mm Male Box Header with short lever

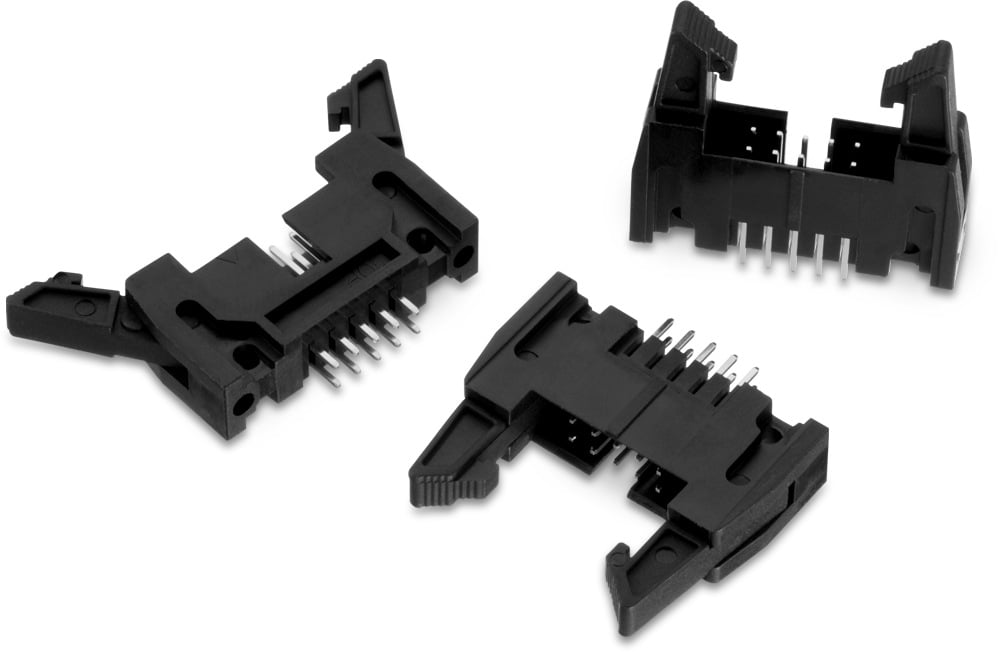

WR-BHD 2.54 mm Male Box Header with short lever

Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
Working Voltage250 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Pitch2.54 mm
GenderMale
Certification
UL ApprovalE323964
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypeMountL
(mm)
IR
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
61201022021SPEC
6 files 10 2.54 Male Straight THT 32.2 3 250 20 max. Tray612001
61201422021SPEC
6 files 14 2.54 Male Straight THT 37.28 3 250 20 max. Tray612001
61201622021SPEC
6 files 16 2.54 Male Straight THT 39.82 3 250 20 max. Tray612001
61202022021SPEC
6 files 20 2.54 Male Straight THT 44.9 3 250 20 max. Tray612001
61202422021SPEC
6 files 24 2.54 Male Straight THT 49.98 3 250 20 max. Tray
61202622021SPEC
6 files 26 2.54 Male Straight THT 52.52 3 250 20 max. Tray
61203422021SPEC
6 files 34 2.54 Male Straight THT 62.68 3 250 20 max. Tray
61204022021SPEC
6 files 40 2.54 Male Straight THT 70.3 3 250 20 max. Tray
61205022021SPEC
6 files 50 2.54 Male Straight THT 83 3 250 20 max. Tray
61206022021SPEC
6 files 60 2.54 Male Straight THT 95.7 3 250 20 max. Tray
